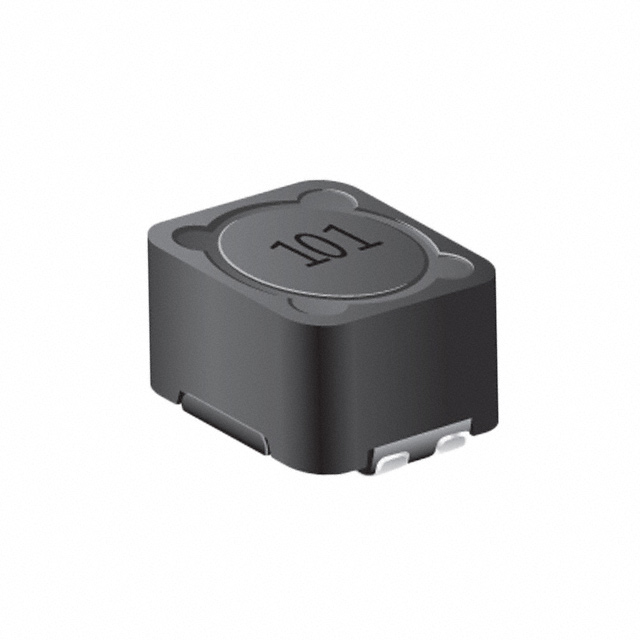

SRF1280A Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND12.5X12.5X8MM,2X10UH20%3.02A,SHDSMD /TAPE & REEL - 13" REEL
| Part | DC Resistance (DCR) - Series [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Current Saturation - Series | Number of Coils | Inductance - Connected In Series | Current Rating - Parallel | Tolerance | Package / Case | Height [z] | Height [z] | Current Saturation - Parallel | DC Resistance (DCR) - Parallel [Max] | Inductance - Connected In Parallel | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Mounting Type | Current Rating - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 92.1 mOhm | 125 °C | -40 C | AEC-Q200 | 5.6 A | 2 | 40 µH | 6.04 A | 20 % | Nonstandard | 8 mm | 0.315 in | 11.2 A | 24.1 mOhm | 10 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount | |||
 Bourns Inc. | 125 °C | -40 C | AEC-Q200 | 3.78 A | 2 | 88 µH | 4 A | 20 % | Nonstandard | 8 mm | 0.315 in | 7.57 A | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount | 2 A | 50.3 mOhm | 192 mOhm | |||
Bourns Inc. | 125 °C | -40 C | AEC-Q200 | 633 mA | 2 | 3.28 mH | 650 mA | 20 % | Nonstandard | 8 mm | 0.315 in | 1.27 A | 1.632 Ohm | 820 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount | 325 mA | 5.896 Ohm | ||
 Bourns Inc. | 40 mOhm | 125 °C | -40 C | AEC-Q200 | 10.8 A | 2 | 13.2 µH | 10.4 A | 30 % | Nonstandard | 8 mm | 0.315 in | 21.5 A | 3.3 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount | 5.23 A | 11 mOhm | ||
Bourns Inc. | 125 °C | -40 C | AEC-Q200 | 1.01 A | 2 | 1.32 mH | 1.04 A | 20 % | Nonstandard | 8 mm | 0.315 in | 2.01 A | 330 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount | 522 mA | 540 mOhm | 2.172 Ohm | ||
Bourns Inc. | 578 mOhm | 125 °C | -40 C | AEC-Q200 | 2.03 A | 2 | 328 µH | 2.09 A | 20 % | Nonstandard | 8 mm | 0.315 in | 4.06 A | 82 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount | 1.04 A | 153 mOhm | ||
Bourns Inc. | 125 °C | -40 C | AEC-Q200 | 4.83 A | 2 | 60 µH | 5.03 A | 20 % | Nonstandard | 8 mm | 0.315 in | 9.66 A | 15 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount | 2.51 A | 33.3 mOhm | 129 mOhm | ||
 Bourns Inc. | 125 °C | -40 C | AEC-Q200 | 2 | Nonstandard | 8 mm | 0.315 in | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Shielded | Surface Mount |
