10070158 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

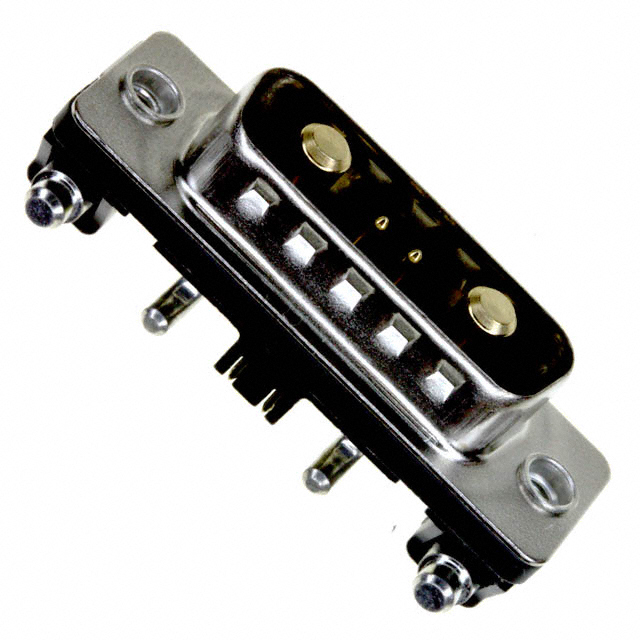

CONN D-SUB PLUG 4P R/A SLD PASTE
| Part | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Flange Feature | Flange Feature | Backset Spacing | Backset Spacing | Number of Rows | Number of Positions [custom] | Number of Positions [custom] | Shell Material, Finish | Contact Type | Contact Finish | Connector Style | Connector Type | Termination | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Mounting Type | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 48 VDC | Copper Alloy | -55 C | 125 °C | Thermoplastic | Housing/Shell | 4-40 | 0.201 " | 5.1 mm | 1 | 4 | 2 | Nickel Plated Steel | Signal and Power | Gold | Combo D-Sub | Plug Male Pins | Solder Paste | 24 A 375 mA | 4W2 A DA | 2 | Board Cutout Right Angle Through Hole | Board Guide Grounding Indents Mounting Brackets | |
 Amphenol ICC (FCI) | 48 VDC | Copper Alloy | -55 C | 125 °C | Thermoplastic | Housing/Shell | 4-40 | 0.201 " | 5.1 mm | 1 | 4 | 2 | Nickel Plated Steel | Signal and Power | Gold | Combo D-Sub | Plug Male Pins | Solder | 24 A 375 mA | 4W2 A DA | 2 | Board Cutout Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | |
 Amphenol ICC (FCI) | 48 VDC | Copper Alloy | -55 C | 125 °C | Thermoplastic | Housing/Shell | 4-40 | 0.201 " | 5.1 mm | 1 | 4 | 2 | Nickel Plated Steel | Signal and Power | Gold | Combo D-Sub | Plug Male Pins | Solder Paste | 24 A 375 mA | 4W2 A DA | 2 | Board Cutout Right Angle Through Hole | Board Guide Grounding Indents Mounting Brackets | |
 Amphenol ICC (FCI) | 48 VDC | Copper Alloy | -55 C | 125 °C | Thermoplastic | Housing/Shell (M3) | 0.201 " | 5.1 mm | 1 | Nickel Plated Steel | Signal and Power | Gold | D-Sub Combo - Stacked | Plug Male Pins | Solder | 24 A 375 mA | 2 (DA A) - 4W2; 2 (DA A) - 4W2 | Board Cutout Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | 4 |
