637-078 Series
Manufacturer: EDAC Inc.
Beta
⌘K

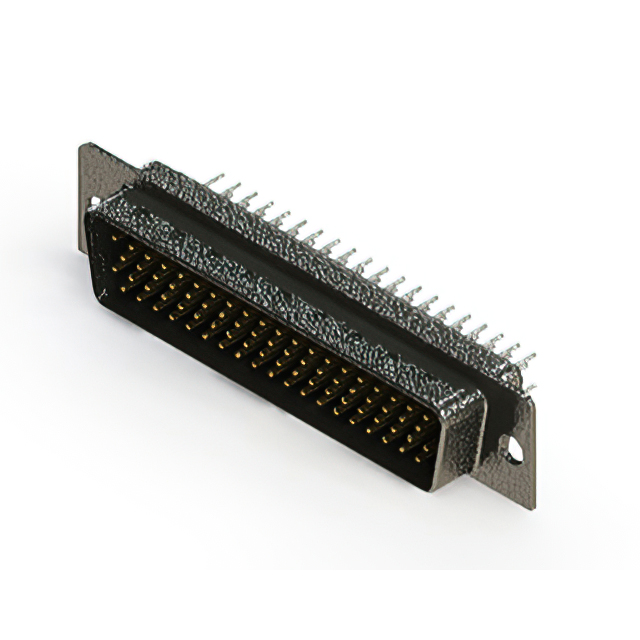

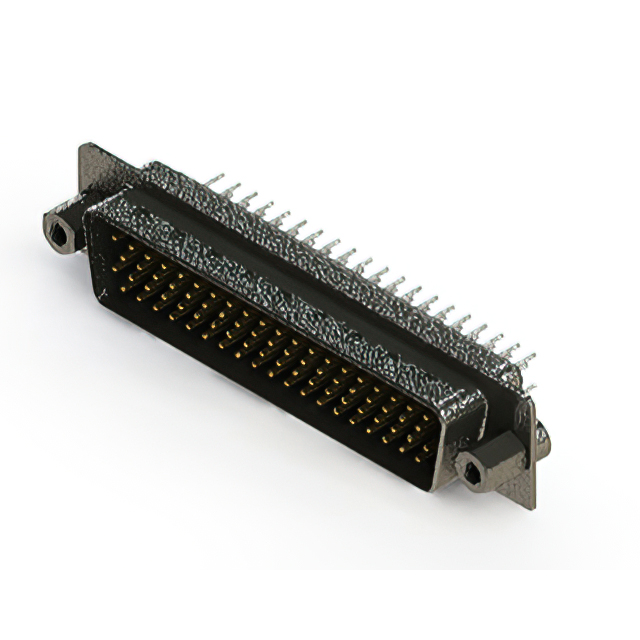

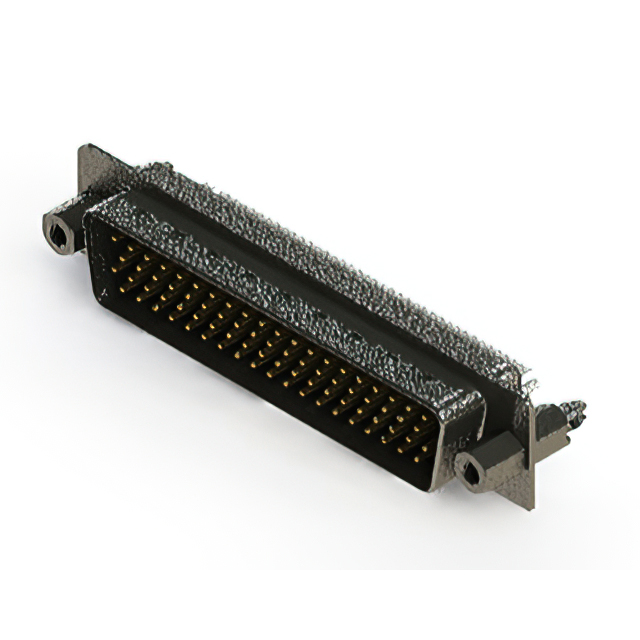

CONN D-SUB HD PLUG 78P SLDR CUP
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Flange Feature | Current Rating (Amps) | Connector Style | Features | Contact Type | Contact Finish | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Termination | Contact Finish Thickness | Shell Material, Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 85 °C | Plug Male Pins | Housing/Shell (Unthreaded) | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | 30 Áin | 0.76 Ám | Free Hanging (In-Line) | 78 | ||||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 85 °C | Plug Male Pins | 4-40 Mating Side Female Screwlock | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | 30 Áin | 0.76 Ám | Free Hanging (In-Line) | 78 | ||||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 85 °C | Plug Male Pins | Housing/Shell (Unthreaded) | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | Panel Mount Through Hole | 78 | Solder | Flash | Nickel Plated Steel | |||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 85 °C | Plug Male Pins | 4-40 Mating Side Female Screwlock | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | 15 µin | 0.38 µm | Panel Mount Through Hole | 78 | Solder | |||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 85 °C | Plug Male Pins | 4-40 | 3 A | D-Sub High Density | Board Lock Grounding Indents Shielded | Signal | Gold | UL94 V-0 | Free Hanging (In-Line) | 78 | Flash | |||||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 125 °C | Plug Male Pins | Housing/Shell | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | Free Hanging (In-Line) | 78 | Flash | Nickel Plated Steel | 4-40 | |||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 125 °C | Plug Male Pins | 4-40 Mating Side Female Screwlock | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | 30 Áin | 0.76 Ám | Panel Mount Through Hole | 78 | Solder | |||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 125 °C | Plug Male Pins | Housing/Shell | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | 15 µin | 0.38 µm | Panel Mount Through Hole | 78 | Solder | 4-40 | ||
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 85 °C | Plug Male Pins | Housing/Shell | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | 30 Áin | 0.76 Ám | Panel Mount Through Hole | 78 | Solder | Nickel Plated Steel | 4-40 | |
 EDAC Inc. | Black | Brass | Polyester Thermoplastic | -55 C | 125 °C | Plug Male Pins | Housing/Shell | 3 A | D-Sub High Density | Grounding Indents Shielded | Signal | Gold | UL94 V-0 | Panel Mount Through Hole | 78 | Solder | Flash | 4-40 |
