SSF-LXH103 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

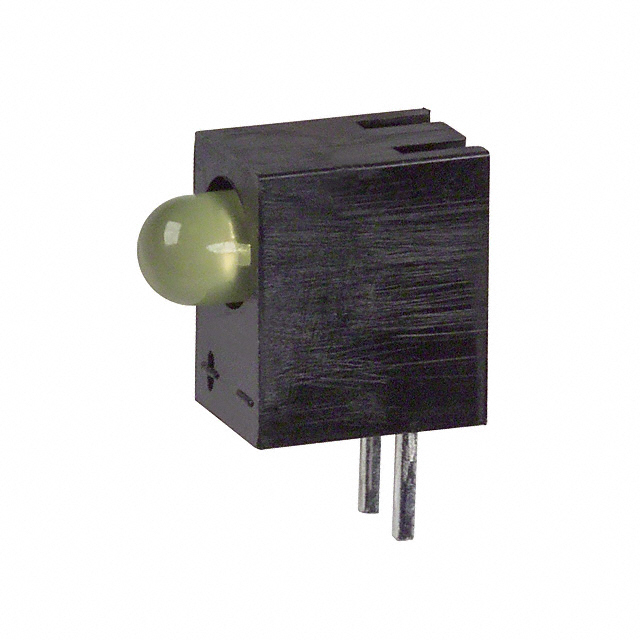

LED CBI 3MM YELLOW DIFF RA

Part	Mounting Type	Current	Configuration	Viewing Angle	Wavelength - Peak	Millicandela Rating	Color	Voltage Rating	Lens Style	Lens Type	Lens Size	Lens Size	Current	Lens Size [diameter]
Lumex Opto/Components Inc. SSF-LXH103SYD	Right Angle Through Hole	20 mA	Single	60 °	590 nm	100 mcd	Yellow	2 V	Round with Domed Top	Diffused Tinted	3 mm	T-1

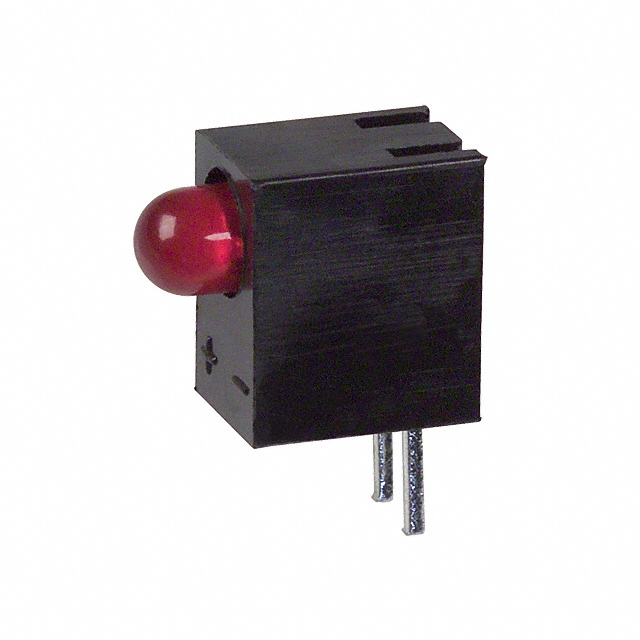

Lumex Opto/Components Inc. SSF-LXH103SRD	Right Angle Through Hole	20 mA	Single	60 °	660 nm	80 mcd	Red	1.8 V	Round with Domed Top	Diffused Tinted	3 mm	T-1
Lumex Opto/Components Inc. SSF-LXH103SUGD	Right Angle Through Hole	20 mA	Single	60 °		150 mcd	Green		Round with Domed Top	Diffused Green	3 mm	T-1
Lumex Opto/Components Inc. SSF-LXH103LID	Right Angle Through Hole	20 mA	Single	60 °	635 nm	40 mcd	Red	2 V	Round with Domed Top	Diffused Tinted	3 mm	T-1

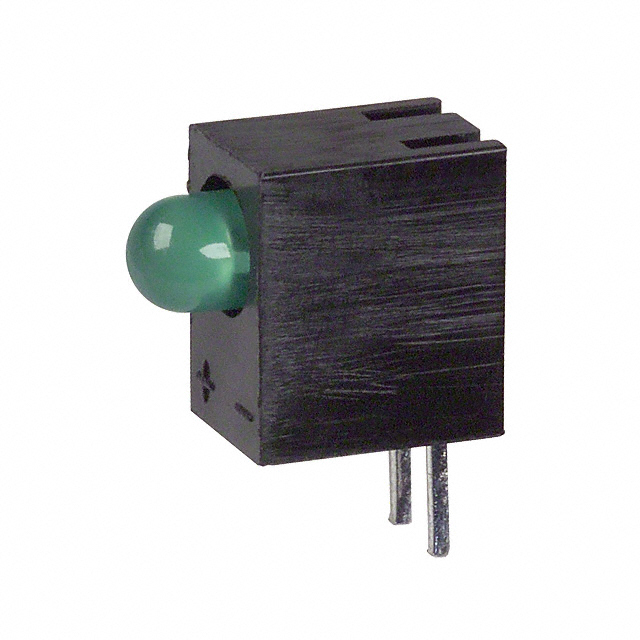

Lumex Opto/Components Inc. SSF-LXH103GD	Right Angle Through Hole	20 mA	Single	60 °	565 nm	30 mcd	Green	2.1 V	Round with Domed Top	Diffused Tinted	3 mm	T-1

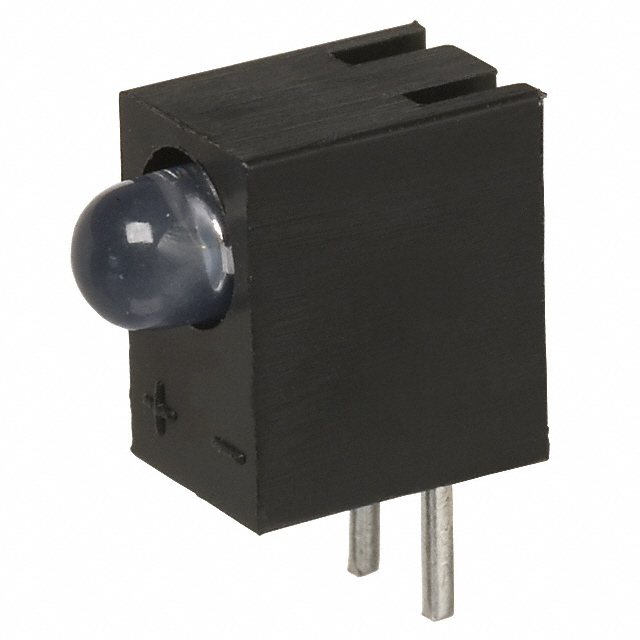

Lumex Opto/Components Inc. SSF-LXH103USBD	Right Angle Through Hole	20 mA	Single	60 °	470 nm	80 mcd	Blue	3.5 V	Round with Domed Top	Diffused Tinted	3 mm	T-1

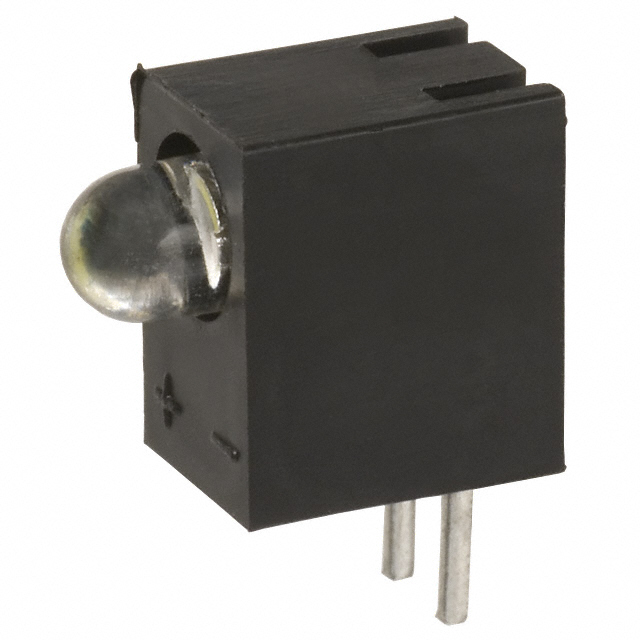

Lumex Opto/Components Inc. SSF-LXH103UWC	Right Angle Through Hole	20 mA	Single	34 °	550 nm	1200 mcd	White	3.6 V		Diffused White
Lumex Opto/Components Inc. SSF-LXH103GD-5V	Right Angle Through Hole	12 mA	Single	8 °	565 nm	80 mcd	Green	5 V	Round with Domed Top	Diffused Tinted	3 mm	T-1

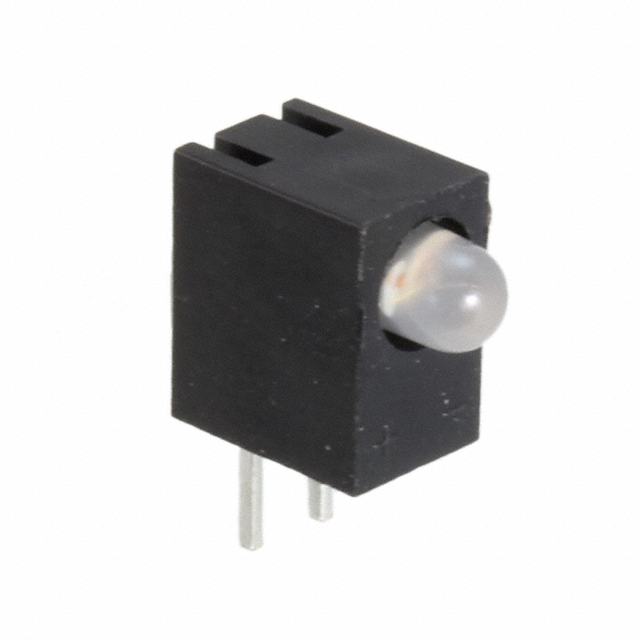

Lumex Opto/Components Inc. SSF-LXH103HGW	Right Angle Through Hole		Single	60 °	565 nm 700 nm	4 mcd 8 mcd	Green Red	2 V 2.2 V	Round with Domed Top	Diffused White	3 mm	T-1	25mA Green 25mA Red
Lumex Opto/Components Inc. SSF-LXH103ID	Right Angle Through Hole	20 mA	Single	60 °	635 nm	30 mcd	Red	2.1 V	Round with Domed Top	Diffused Tinted				3 mm
