346-039 Series
Manufacturer: EDAC Inc.
Catalog

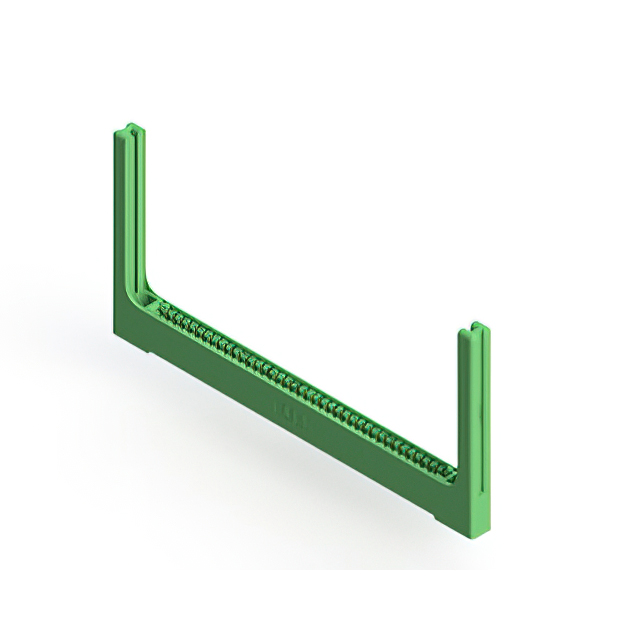

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 39 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
...
| Part | Card Type | Pitch [x] | Pitch [x] | Number of Positions | Contact Material | Termination Rows | Termination | Mounting Type | Contact Type | Read Out | Material - Insulation | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Gender | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Wire Wrap | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Card Guides | ||||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Wire Wrap | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | Card Guides | ||||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | |||||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Wire Wrap | Through Hole | Cantilever | Single | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | ||||||
 EDAC Inc. | Non Specified - Single Edge | 0.125 in | 3.18 mm | 39 | Copper Alloy | 1 | Solder Wire Wrap | Through Hole Right Angle | Cantilever | Single | Polyester Thermoplastic | Gold | 10 Áin | 0.25 Ám | 1 | Female | 39 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | -40 °C | 105 ░C | 3.25 mm | 0.128 in |
