VX-5 Series

Catalog

SWITCH SNAP ACT SPST-NO 5A 125V

Part	Mechanical Life	Ingress Protection	Electrical Life	Overtravel [custom]	Overtravel [custom]	Circuit	Switch Function	Mounting Type	Operating Force	Termination Style	Termination Style	Termination Style	Actuator Type	Voltage Rating - DC	Operating Position	Operating Position	Release Force	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel	Pretravel	Pretravel	Current Rating (Amps)

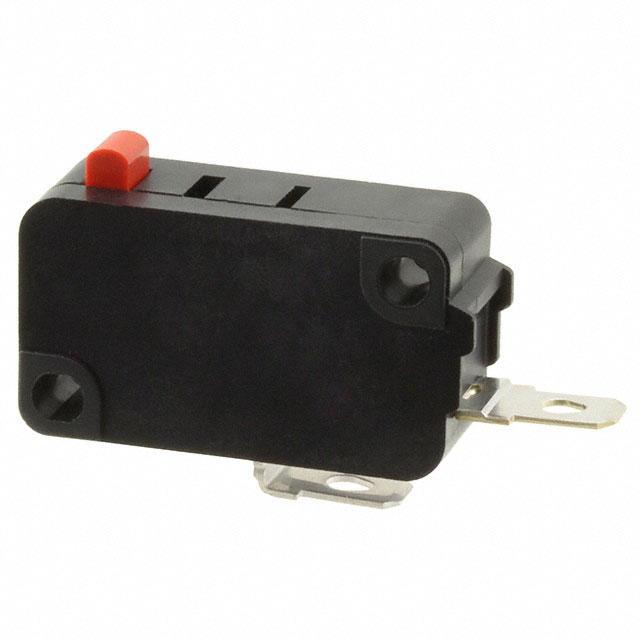

Omron Electronics Inc-EMC Div VX-5-3A3	50000000 Cycles	IP40	500000 Cycles	0.04 "	1 mm	SPST-NO	Off-Mom	Chassis Mount	50 gf	4.7 mm	0.187 in	Solder Quick Connect	Round (Pin Plunger)	30 V	14.7 mm	0.579 in	5.099 gf	125 V	-25 °C	80 °C	0.012 in	0.3 mm	1.2 mm	0.047 in	5 A

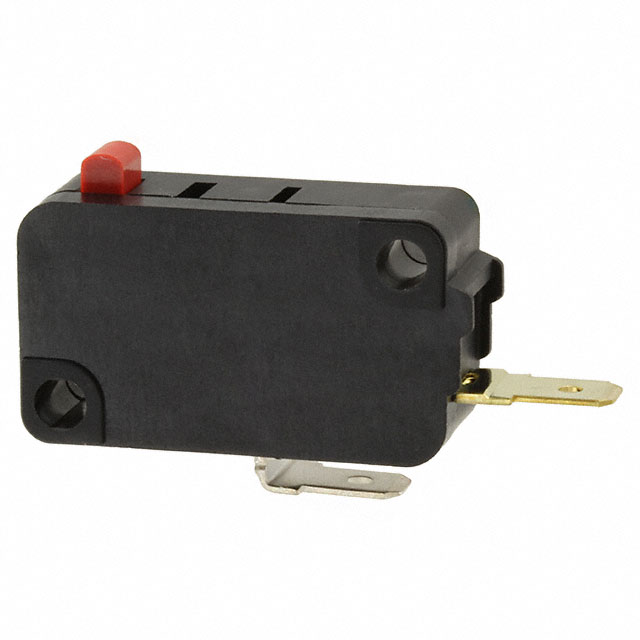

Omron Electronics Inc-EMC Div VX-5-3C22	50000000 Cycles	IP40	500000 Cycles	0.04 "	1 mm	SPST-NO	Off-Mom	Chassis Mount				Quick Connect	Round (Pin Plunger)	30 V	14.7 mm	0.579 in	3.059 gf	125 V	-25 °C	80 °C	0.012 in	0.3 mm	1.2 mm	0.047 in	5 A

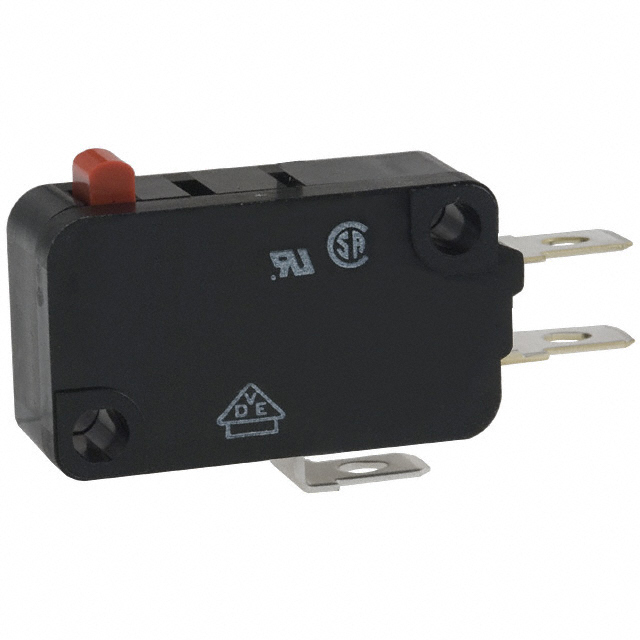

Omron Electronics Inc-EMC Div VX-5-1A2	50000000 Cycles	IP40	500000 Cycles	0.04 "	1 mm	SPDT	On-Mom	Chassis Mount		4.7 mm	0.187 in	Solder Quick Connect	Round (Pin Plunger)	30 V	14.7 mm	0.579 in	3.059 gf	125 V	-25 °C	80 °C	0.012 in	0.3 mm	1.2 mm	0.047 in	5 A
