19300480 Series
Manufacturer: HARTING
Beta
⌘K
CONN HOOD SIDE ENTRY SZ48B M40
| Part | Lock Location | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Ingress Protection | Connector Type | Housing Material | Size | Housing Color | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Style | Thread Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

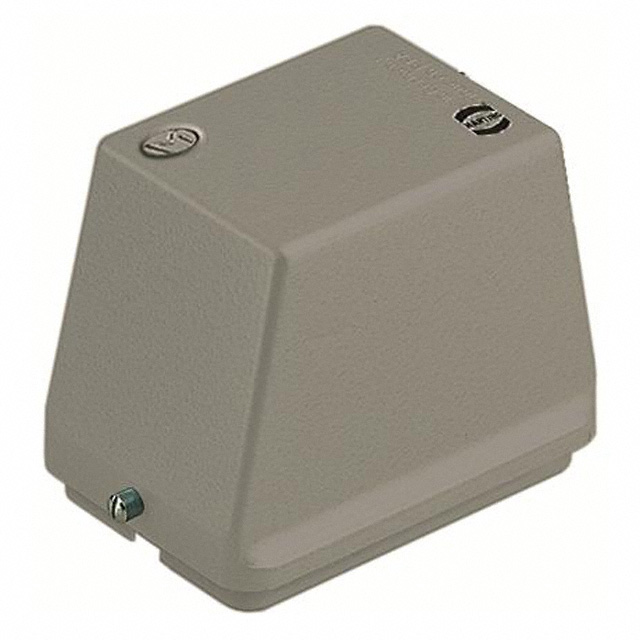

 HARTING | Locking Clip (1) on Base Bottom | 90 mm | 3.543 " | 5.197 " | 132 mm | 4.252 in | 108 mm | IP65 - Dust Tight Water Resistant | Hood | Aluminum Die Cast | 48 B | Gray | Powder Coated | 125 °C | -40 C | Side Entry | ||||

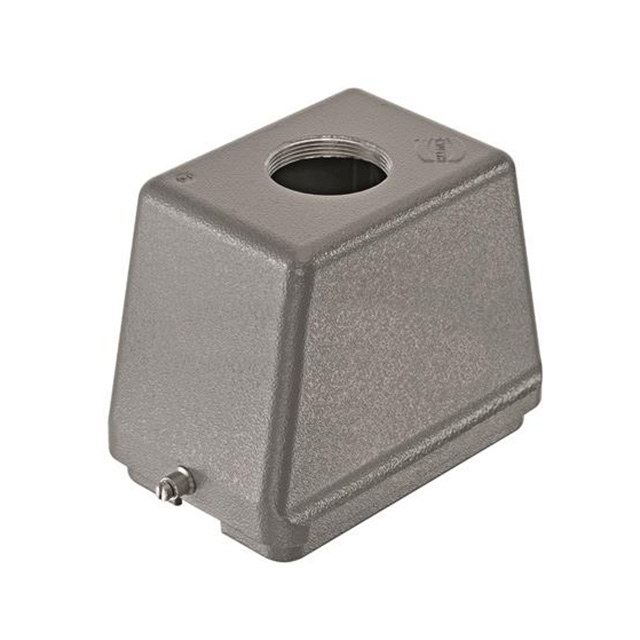

 HARTING | Locking Clip (1) on Base Bottom | 90 mm | 3.543 " | 5.197 " | 132 mm | 3.839 " | 97.5 mm | IP65 - Dust Tight Water Resistant | Hood | Aluminum Die Cast | 48 B | Gray | Powder Coated | 125 °C | -40 C | Top Entry | M50 | |||

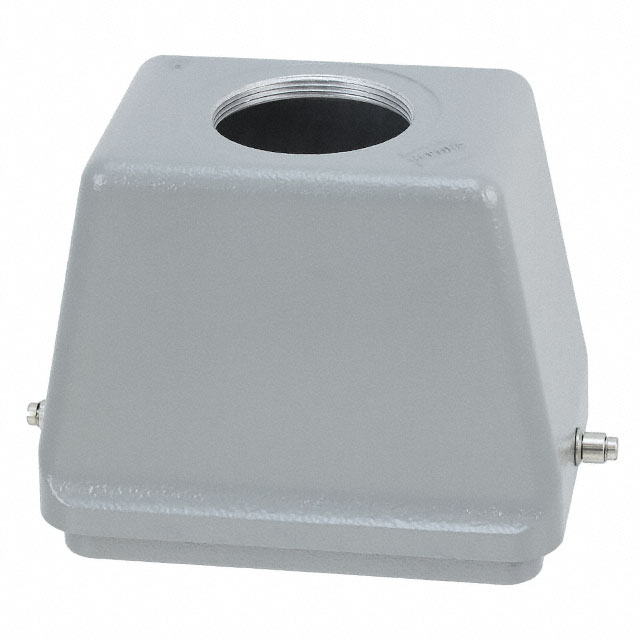

 HARTING | Locking Clip (1) on Base Bottom | 90 mm | 3.543 " | 5.197 " | 132 mm | 3.839 " | 97.5 mm | IP65 - Dust Tight Water Resistant | Hood | Aluminum Die Cast | 48 B | Gray | Powder Coated | 125 °C | -40 C | Top Entry | ||||
 HARTING | Locking Clip (1) on Base Bottom | 4.724 " | 5.551 in | 3.898 in | IP65 - Dust Tight Water Resistant | Base - Box Mount | Aluminum Die Cast | 48 B | Gray | Powder Coated | 125 °C | -40 C | Side Entry | 120 mm | 141 mm | 99 mm |
