M5210 Series

Catalog

FAN AXIAL 52X10MM 12VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Current Rating (Amps)	Width [y]	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Termination	Bearing Type	Voltage - Rated	Fan Type	Air Flow	Air Flow	Noise	Approval Agency	RPM	Weight [custom]	Weight [custom]

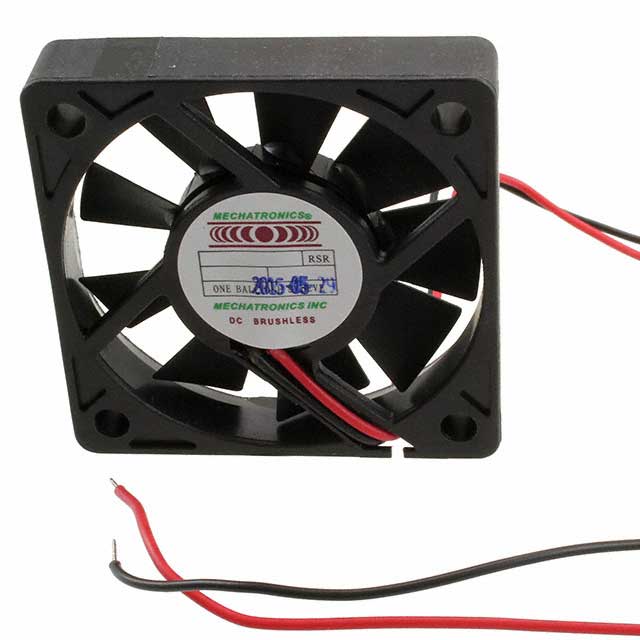

Mechatronics Fan Group M5210E12C-RSR	13.8 VDC	7 V	Polybutylene Terephthalate (PBT)	120 mA	10 mm	Square	52 mm	52 mm	2 Wire Leads	1 Ball 1 Sleeve	12 VDC	Tubeaxial	11.3 CFM	0.316 m³/min	28 dB	cUL TUV UL	6000 RPM	0.044 lb	19.96 g

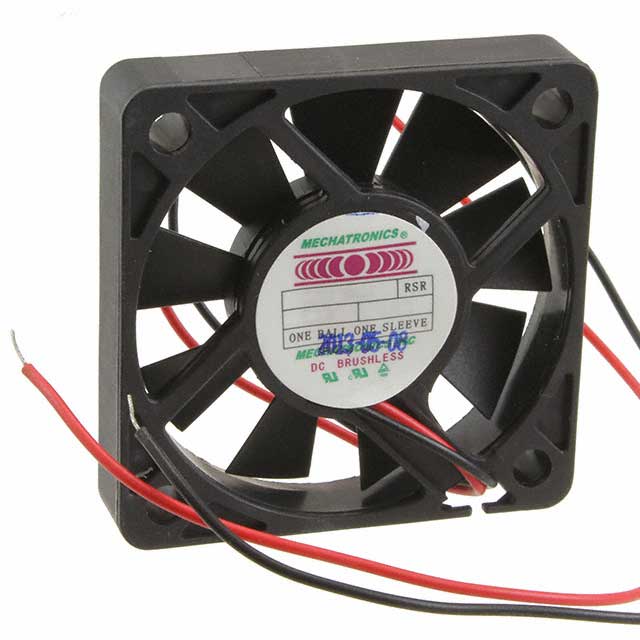

Mechatronics Fan Group M5210E05C-RSR	6 VDC	3 V	Polybutylene Terephthalate (PBT)	150 mA	10 mm	Square	52 mm	52 mm	2 Wire Leads	1 Ball 1 Sleeve	5 V	Tubeaxial	11.3 CFM	0.316 m³/min	28 dB	cUL TUV UL	6000 RPM	0.044 lb	19.96 g
Mechatronics Fan Group M5210E12C-RS	13.8 VDC	7 V	Polybutylene Terephthalate (PBT)	120 mA	10 mm	Square	52 mm	52 mm	2 Wire Leads	1 Ball 1 Sleeve	12 VDC	Tubeaxial	11.3 CFM	0.316 m³/min	28 dB	cUL TUV UL	6000 RPM	0.044 lb	19.96 g
Mechatronics Fan Group M5210E12B-RSR	13.8 VDC	7 V	Polybutylene Terephthalate (PBT)	120 mA	10 mm	Square	52 mm	52 mm	2 Wire Leads	Ball	12 VDC	Tubeaxial	11.3 CFM	0.316 m³/min	28 dB	cUL TUV UL	6000 RPM	0.044 lb	19.96 g
