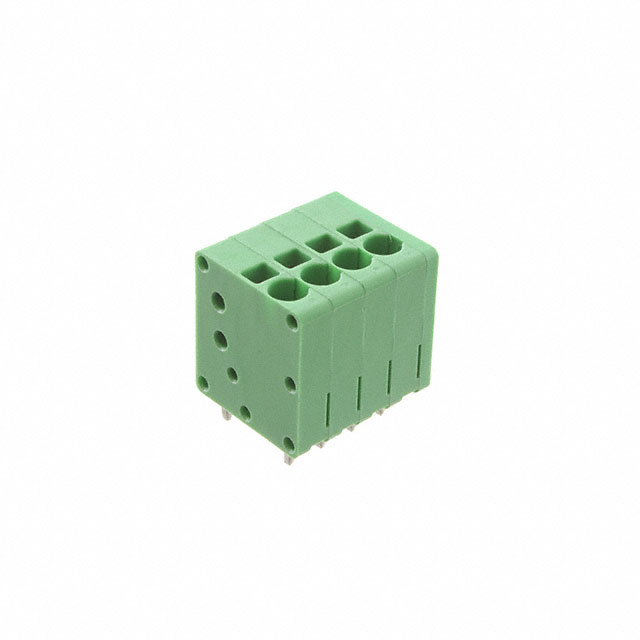

EB163A Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK, 5 POSITION
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Housing Material | Color | Wire Termination | Number of Levels | Mating Orientation | Pitch | Pitch | Current | Mounting Type | Positions Per Level | Voltage | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

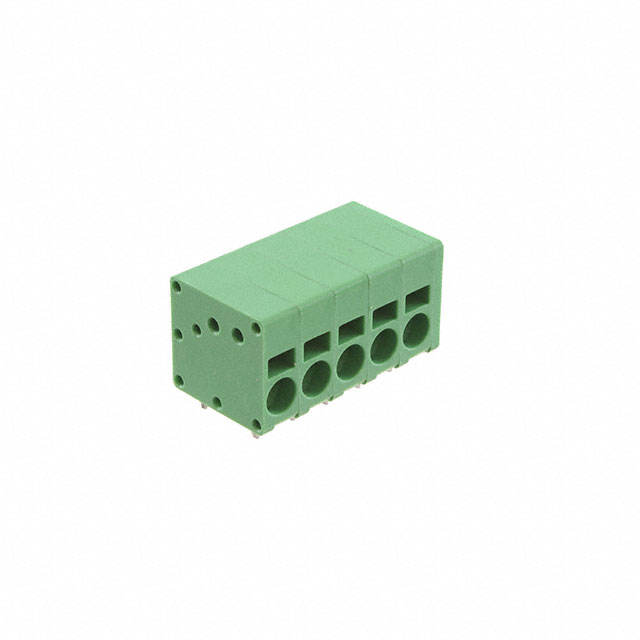

 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Horizontal with Board | 0.197 in | 5 mm | 20 A | Through Hole | 5 | 300 VDC | 24 AWG | 12 AWG |
 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Vertical with Board | 0.197 in | 5 mm | 20 A | Through Hole | 3 | 300 VDC | 24 AWG | 12 AWG |

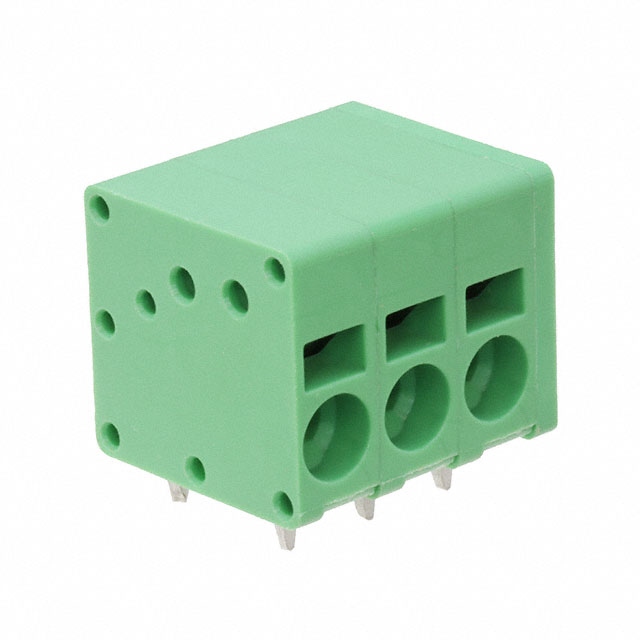

 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Horizontal with Board | 0.197 in | 5 mm | 20 A | Through Hole | 3 | 300 VDC | 24 AWG | 12 AWG |

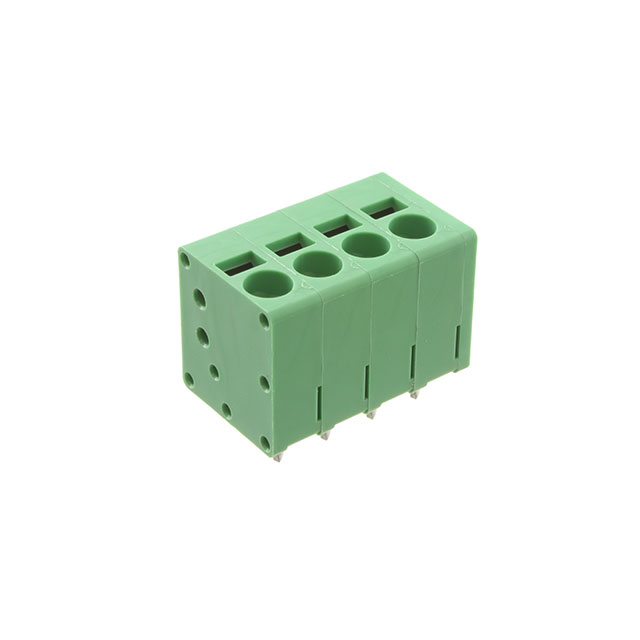

 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Vertical with Board | 0.197 in | 5 mm | 20 A | Through Hole | 4 | 300 VDC | 24 AWG | 12 AWG |

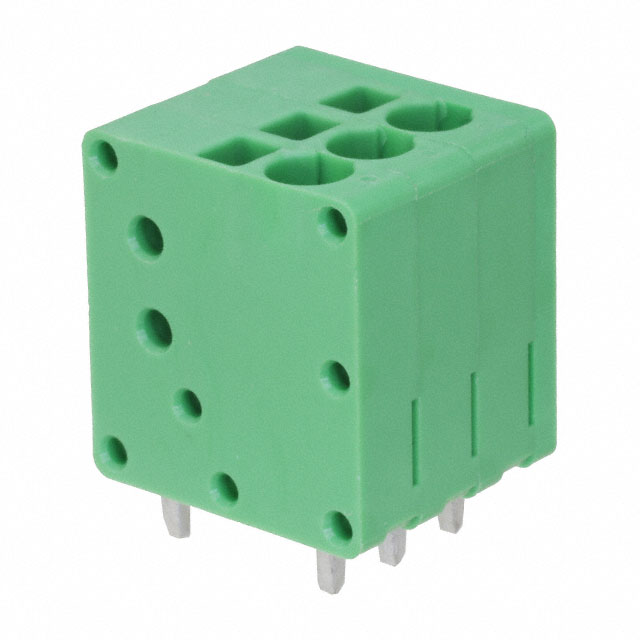

 Adam Tech | -40 C | 105 ░C | Copper Alloy | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Vertical with Board | 0.138 " | 3.5 mm | 10 A | Through Hole | 3 | 300 VDC | 24 AWG | 16 AWG |
 Adam Tech | -40 C | 105 ░C | Copper Alloy | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Vertical with Board | 0.138 " | 3.5 mm | 10 A | Through Hole | 4 | 300 VDC | 24 AWG | 16 AWG |

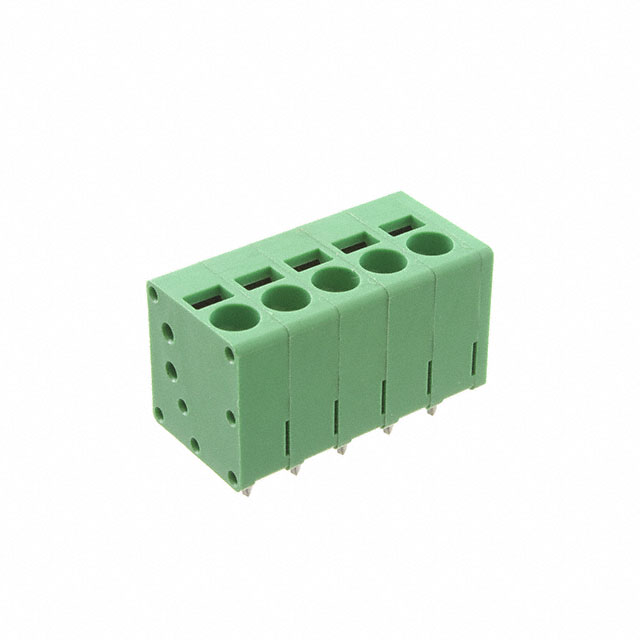

 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Vertical with Board | 0.197 in | 5 mm | 20 A | Through Hole | 5 | 300 VDC | 24 AWG | 12 AWG |

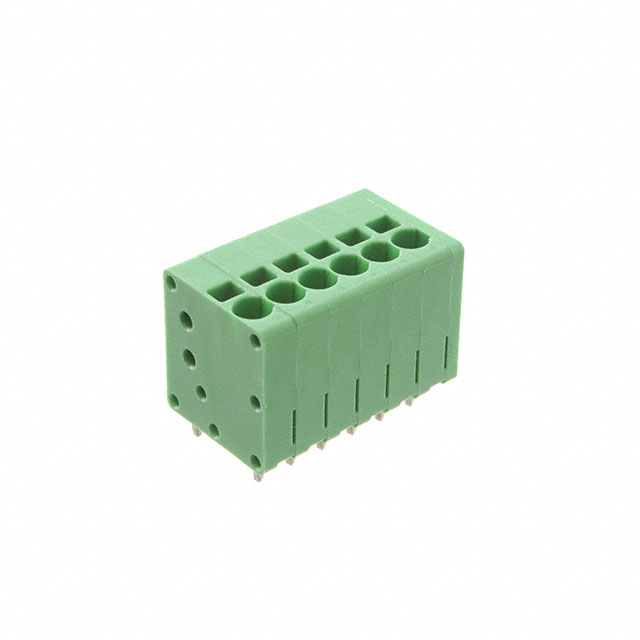

 Adam Tech | -40 C | 105 ░C | Copper Alloy | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Vertical with Board | 0.138 " | 3.5 mm | 10 A | Through Hole | 6 | 300 VDC | 24 AWG | 16 AWG |

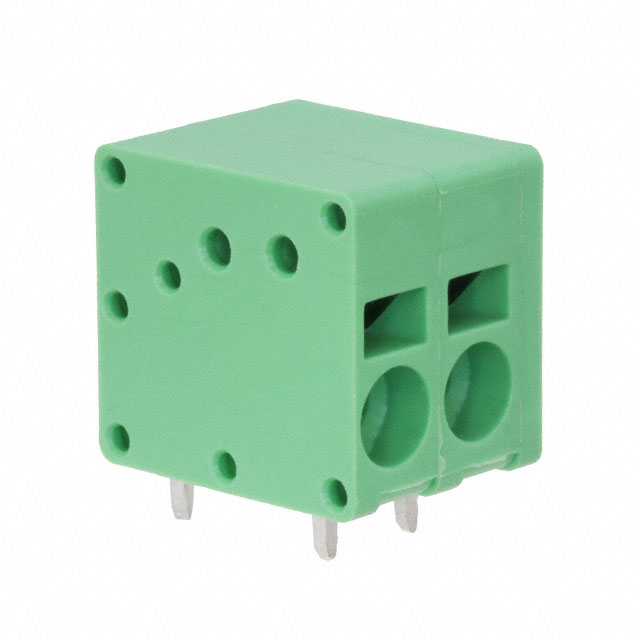

 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Horizontal with Board | 0.197 in | 5 mm | 20 A | Through Hole | 2 | 300 VDC | 24 AWG | 12 AWG |

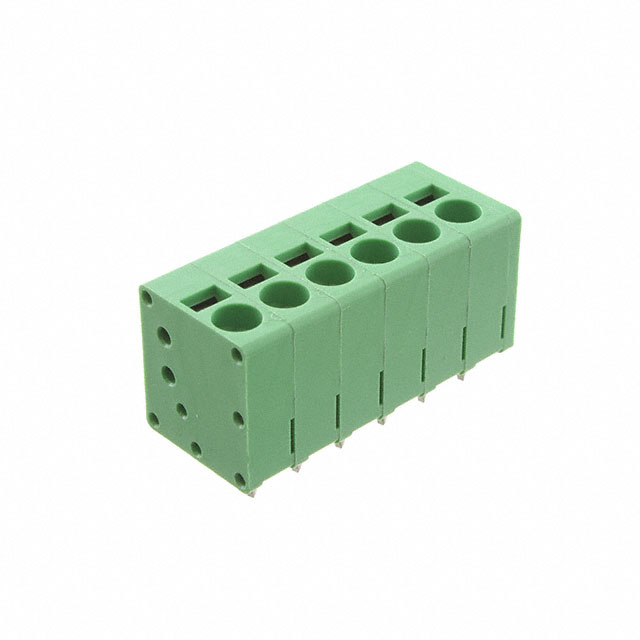

 Adam Tech | -40 C | 105 ░C | Copper Alloy - Tin Plated | Polyamide (PA) Nylon | Green | Leg Spring Push-In Spring | 1 | Vertical with Board | 0.197 in | 5 mm | 20 A | Through Hole | 6 | 300 VDC | 24 AWG | 12 AWG |
