R19159 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
4.3-10 MALE - 7/16 FEMALE ADAPTE
| Part | Center Contact Material | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Impedance | Convert From (Adapter End) | Conversion Type | Convert To (Adapter End) | Adapter Series [Max] | Adapter Series [Min] | Frequency - Max [Max] | Mounting Type | Style | Center Contact Plating | Adapter Type | Mating Cycles | Features | Mounting Feature | Adapter Series | Fastening Type | Center Contact Finish | Color | For Use With/Related Products | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

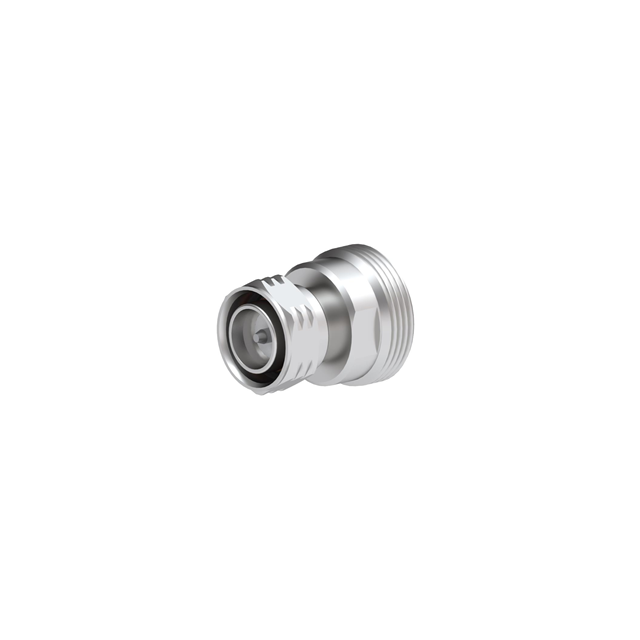

 Radiall USA, Inc. | Bronze | Brass | White Bronze | 90 °C | -55 C | Polytetrafluoroethylene (PTFE) | 50 Ohms | 4.3/10 Plug Male Pin | Between Series | 7/16 Jack Female Socket | 0.4375 | 6000 MHz | Free Hanging (In-Line) | Straight | Silver | Plug to Jack | ||||||||||

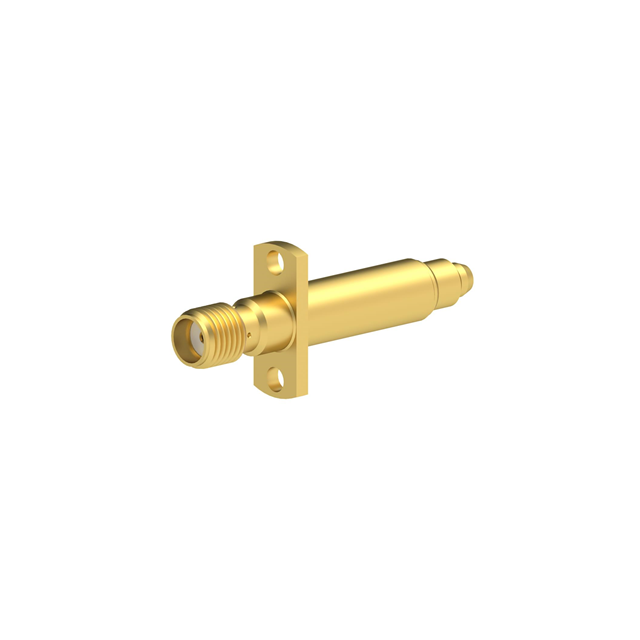

 Radiall USA, Inc. | Beryllium Copper | Brass | Gold | 165 °C | -65 ░C | Polytetrafluoroethylene (PTFE) | 50 Ohms | Female Socket SMA Jack | Between Series | 18 GHz | Panel Mount | Straight | Gold | Plug to Jack | 500 | Limited Detent | Flange | SMA to SMP | Snap-On Threaded | |||||||

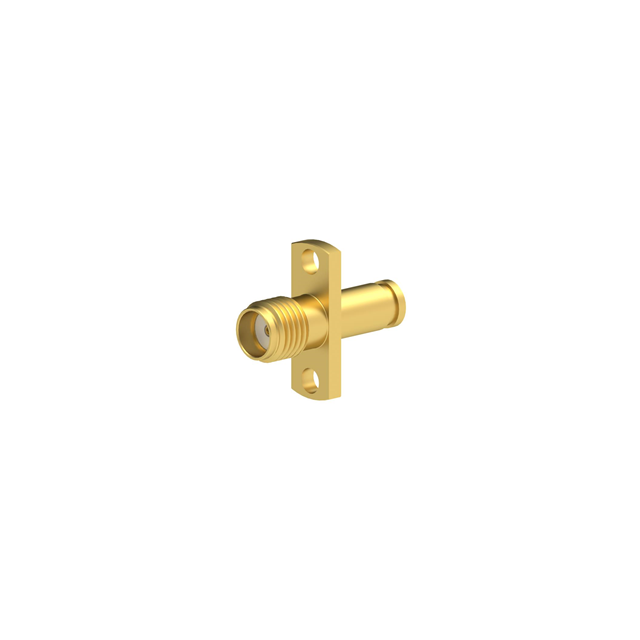

 Radiall USA, Inc. | Beryllium Copper | Brass | Gold | Gold | Gold | MML Receptacle | SMA |
