BFB1224 Series

Catalog

DC BLOWER CENTRIFUGAL BALL BEARING 24V 14V TO 27.6V 60.39CFM 65DB 120 X 120 X 32MM

Part	Lifetime @ Temp.	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Current Rating (Amps)	Power (Watts)	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Termination	Bearing Type	Voltage - Rated	Noise	Static Pressure	Static Pressure	Width [y]	Air Flow	Air Flow	Approval Agency	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Weight [custom]	Weight [custom]	Features	Ingress Protection
Delta Electronics BFB1224GH-A	40 °C 50000 Hrs	Plastic	27.6 VDC	14	Plastic	1.6 A	38.4 W	Square/Rounded	120 mm	120 mm	2 Wire Leads	Ball	24 VDC	65 dB	4.094 in H2O	1019.8 Pa	32 mm	1.69 m³/min	60.4 CFM	CE CSA UL VDE	4400 RPM	-10 °C	60 °C	Blower	299.82 g	0.661 lb

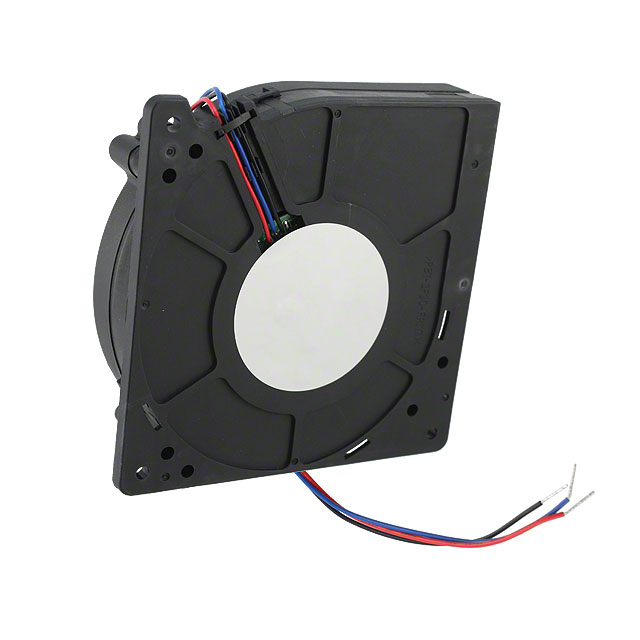

Delta Electronics BFB1224GH-AF00	40 °C 50000 Hrs	Plastic	27.6 VDC	14	Plastic	1.6 A	38.4 W	Square/Rounded	120 mm	120 mm	3 Wire Leads	Ball	24 VDC	65 dB	4.094 in H2O	1019.8 Pa	32 mm	1.69 m³/min	60.4 CFM	CE CSA UL VDE	4400 RPM	-10 °C	60 °C	Blower	299.82 g	0.661 lb	Locked Rotor Protection Speed Sensor (Tach)

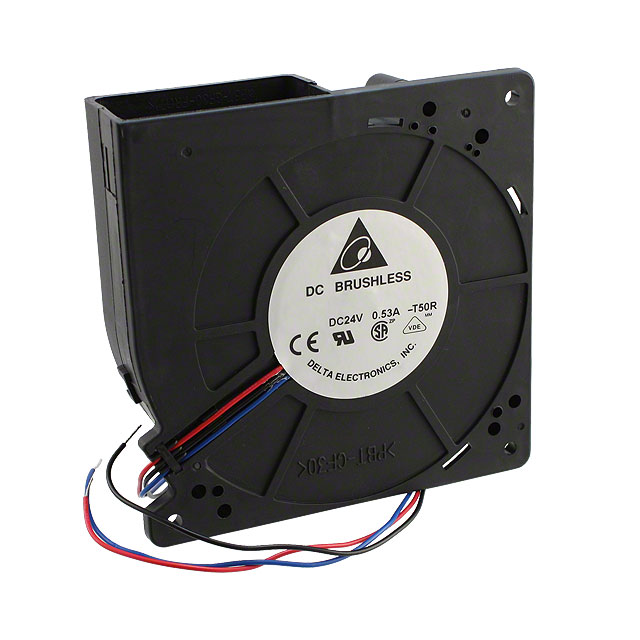

Delta Electronics BFB1224H-T50R	40 °C 50000 Hrs	Plastic	27.6 VDC	7 V	Plastic	0.35 A	8.4 W	Square/Rounded	120 mm	120 mm	3 Wire Leads	Ball	24 VDC	51 dB(A)	0.827 in H2O	206 Pa	32 mm	0.812 mł/min	29 CFM	CE CSA UL VDE	2500 RPM	-10 °C	60 °C	Blower	230.42 g	0.508 lb	Locked Rotor Sensor	IP55 - Dust Protected Water Resistant
Delta Electronics BFB1224VH-AF00	40 °C 50000 Hrs	Plastic	27.6 VDC	14	Plastic	0.7 A	16.8 W	Square/Rounded	120 mm	120 mm	3 Wire Leads	Ball	24 VDC	57 dB	1.848 in H2O	460.3 Pa	32 mm	1.19 mł/min	42.5 CFM	CE CSA UL VDE	3100 RPM	-10 °C	60 °C	Blower	299.82 g	0.661 lb	Locked Rotor Protection Speed Sensor (Tach)

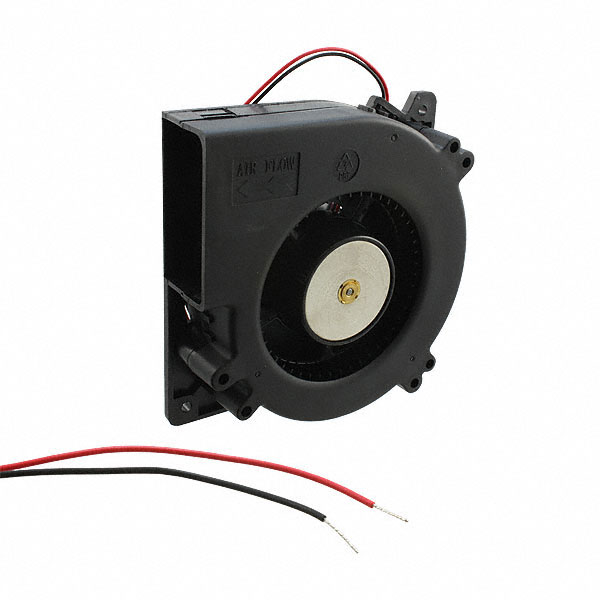

Delta Electronics BFB1224VH	40 °C 50000 Hrs	Plastic	27.6 VDC	7 V	Plastic	600 mA	14.4 W	Square/Rounded	120 mm	120 mm	2 Wire Leads	Ball	24 VDC	56.5 dB	1.3 in H2O	323.6 Pa	32 mm	1.11 m³/min	39.5 CFM	CE CSA UL VDE	3100 RPM	-10 °C	60 °C	Blower	229.97 g	0.507 lb

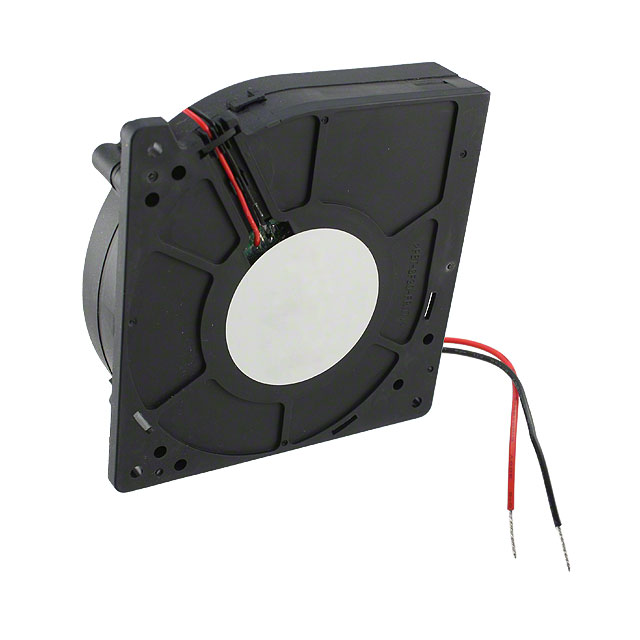

Delta Electronics BFB1224GH-TA50	40 °C 50000 Hrs	Plastic	27.6 VDC	14	Plastic	1.6 A	38.4 W	Square/Rounded	120 mm	120 mm	2 Wire Leads	Ball	24 VDC	65 dB	4.094 in H2O	1019.8 Pa	32 mm	1.69 m³/min	60.4 CFM	CE CSA UL VDE	4400 RPM	-10 °C	60 °C	Blower	299.82 g	0.661 lb		IP55 - Dust Protected Water Resistant
