84502 Series

Catalog

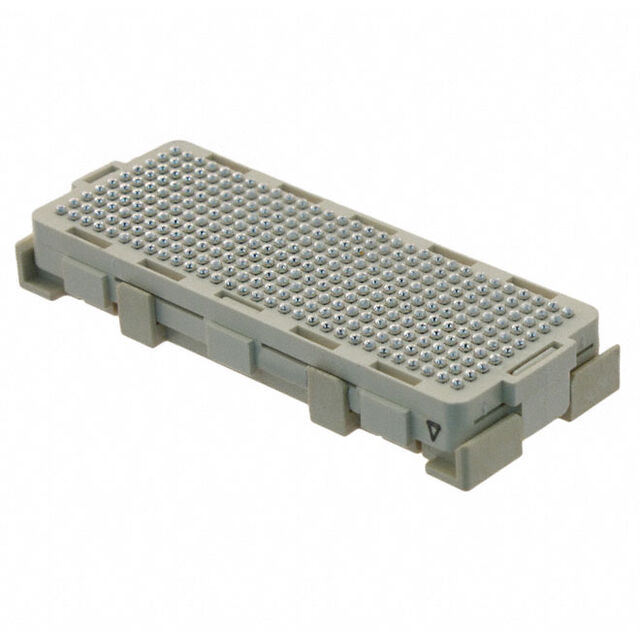

CONN ARRAY RCPT 300POS SMD GOLD

Part	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Connector Type	Mated Stacking Heights	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows
Amphenol ICC (FCI) 84502-001	0.05 in	1.27 mm	4.85 mm	0.191 in	300	Array Female Sockets	5.5 mm	Surface Mount	Gold	15 µin	0.38 µm	10
Amphenol ICC (FCI) 84502-001LF	0.05 in	1.27 mm	4.85 mm	0.191 in	300	Array Female Sockets	5.5 mm	Surface Mount	Gold	15 µin	0.38 µm	10
Amphenol ICC (FCI) 84502-191LF	0.05 in	1.27 mm	4.85 mm	0.191 in	300	Array Female Sockets	5.5 mm	Surface Mount	Gold GXT™	30 Áin	0.76 Ám	10
Amphenol ICC (FCI) 84502-291	0.05 in	1.27 mm	4.85 mm	0.191 in	300	Array Female Sockets	5.5 mm	Surface Mount	Gold GXT™	50 µin	1.27 µm	10
Amphenol ICC (FCI) 84502-291LF	0.05 in	1.27 mm	4.85 mm	0.191 in	300	Array Female Sockets	5.5 mm	Surface Mount	Gold GXT™	50 µin	1.27 µm	10
Amphenol ICC (FCI) 84502-101LF	0.05 in	1.27 mm	4.85 mm	0.191 in	300	Array Female Sockets	5.5 mm	Surface Mount	Gold	30 Áin	0.76 Ám	10
Amphenol ICC (FCI) 84502-191	0.05 in	1.27 mm	4.85 mm	0.191 in	300	Array Female Sockets	5.5 mm	Surface Mount	Gold GXT™	30 Áin	0.76 Ám	10
