RT6278 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

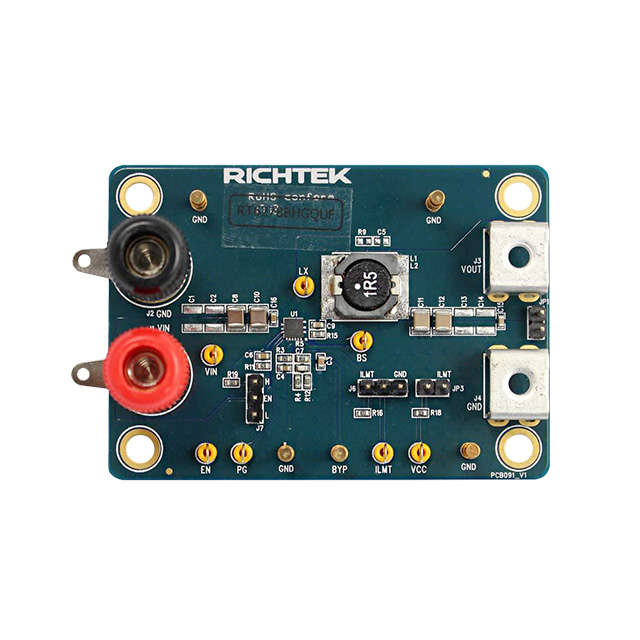

EVAL MODULE FOR RT6278BHGQUF
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Utilized IC / Part | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Contents | Voltage - Output [Min] | Voltage - Output [Max] | Current - Output | Frequency - Switching | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Input (Min) [Min] | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Supplier Device Package | Voltage - Input (Max) [Max] | Topology | Output Type | Function | Synchronous Rectifier | Number of Outputs | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | RT6278B | Buck | 4.5 V | 23 V | DC/DC Step Down | Board(s) | 0.6 V | 5.1 V | 8 A | 500 kHz | |||||||||||||||

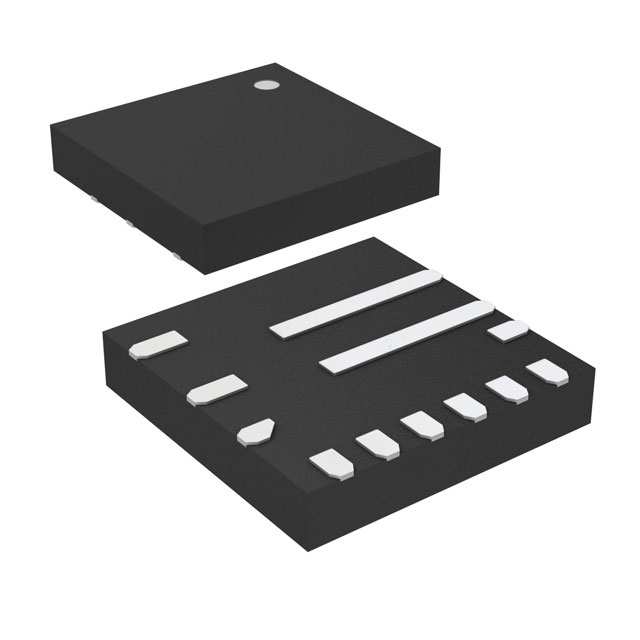

 Richtek USA Inc. | 8 A | 500 kHz | Positive | 85 C | -40 ¯C | 12-UFQFN | 4.5 V | 0.6 V | 5.1 V | 12-UQFN-HL (3x3) | 23 V | Buck | Adjustable | Step-Down | 1 | Surface Mount |
