737-009 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 9POS 0.156

Part	Material - Insulation	Termination Rows	Read Out	Contact Material	Color	Number of Positions	Number of Positions/Bay/Row	Number of Rows	Contact Finish	Card Type	Gender	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Mounting Type

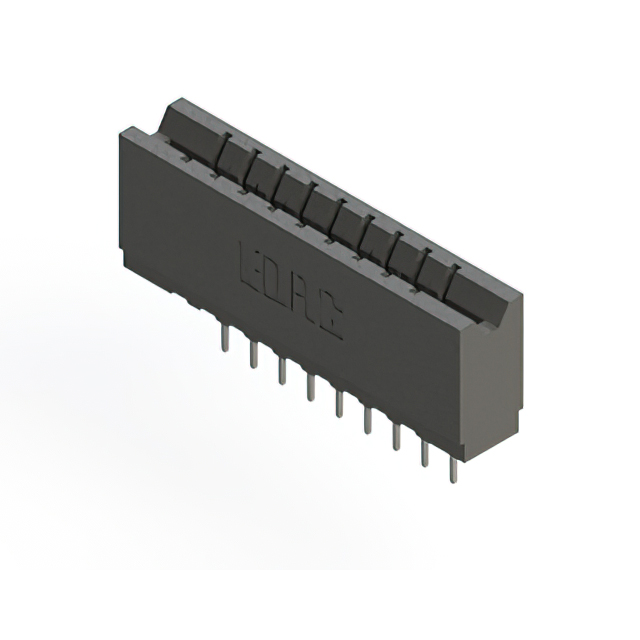

EDAC Inc. 737-009-522-106	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

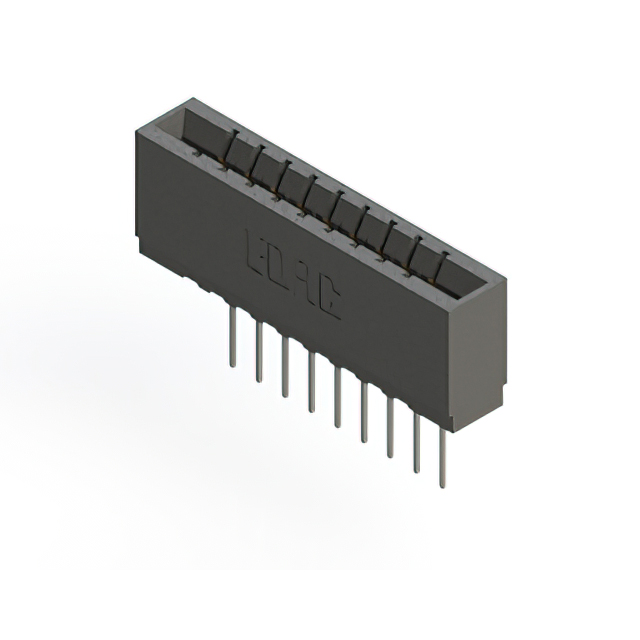

EDAC Inc. 737-009-545-101	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

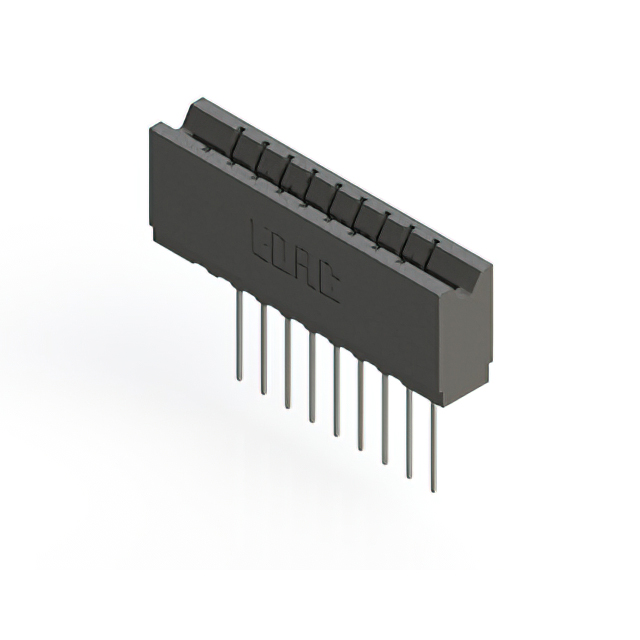

EDAC Inc. 737-009-541-106	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 737-009-540-106	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

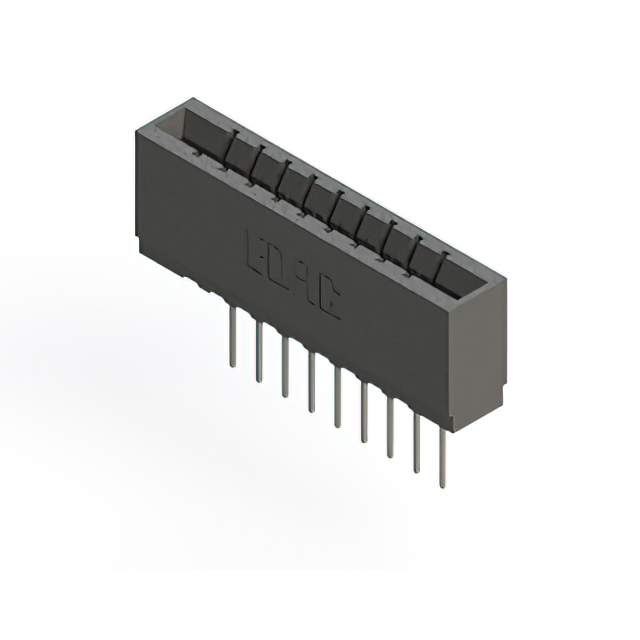

EDAC Inc. 737-009-540-101	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 737-009-541-101	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

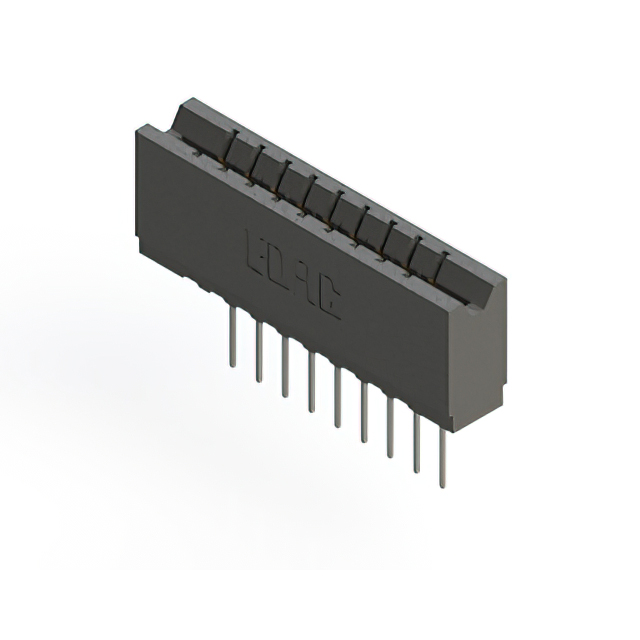

EDAC Inc. 737-009-545-106	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

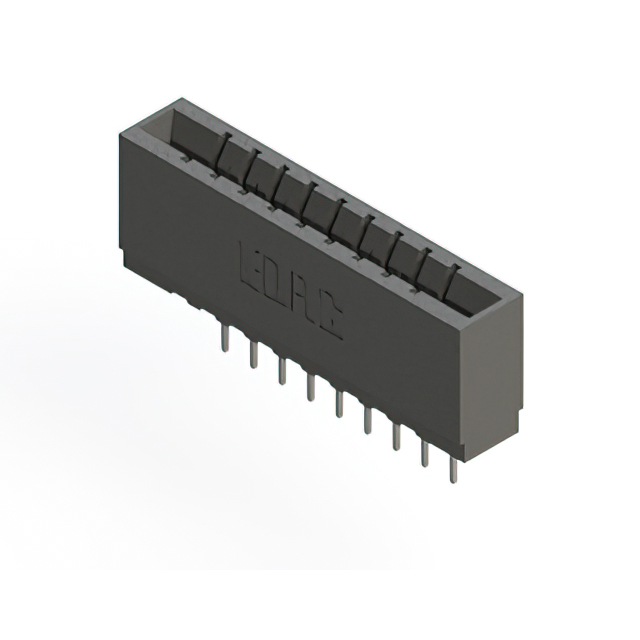

EDAC Inc. 737-009-522-101	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

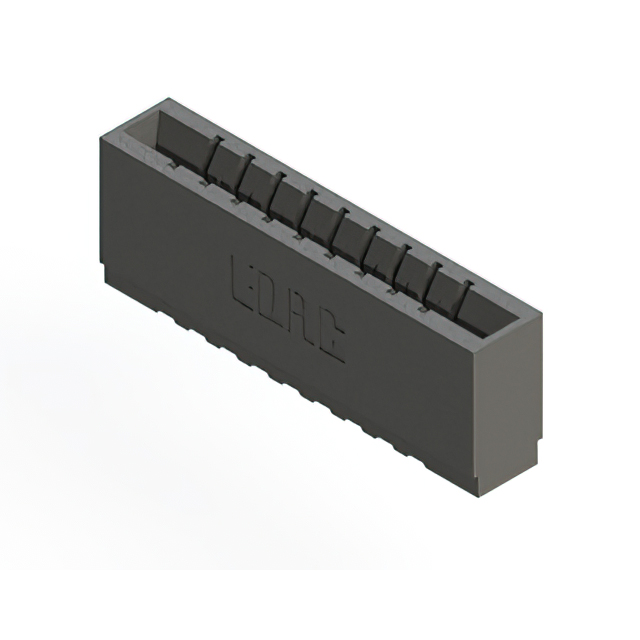

EDAC Inc. 737-009-520-101	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 737-009-525-101	Polyester Thermoplastic	1	Single	Copper Alloy	Black	9	9	1	Gold	Non Specified - Single Edge	Female	3.96 mm	0.156 in	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
