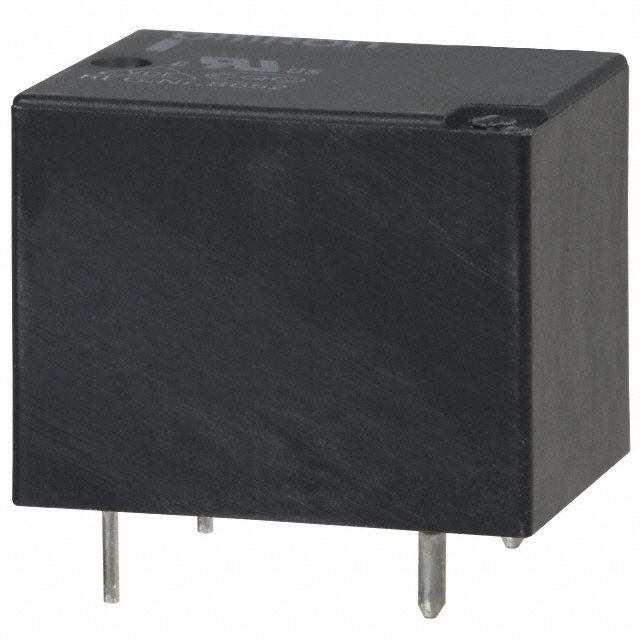

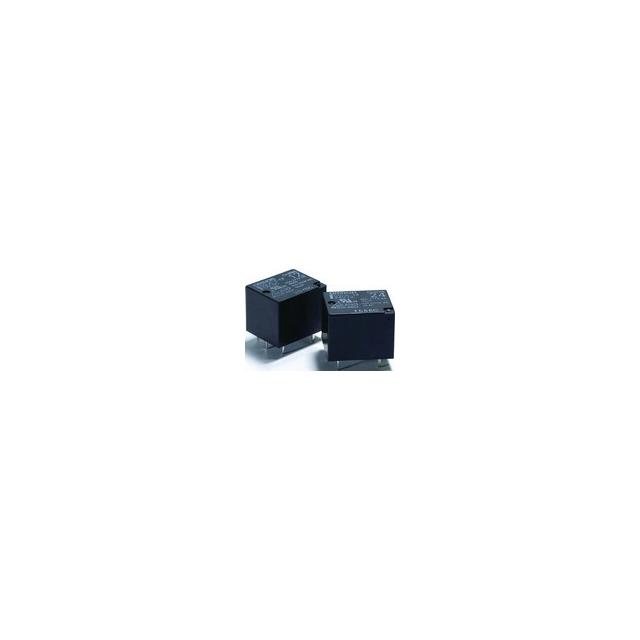

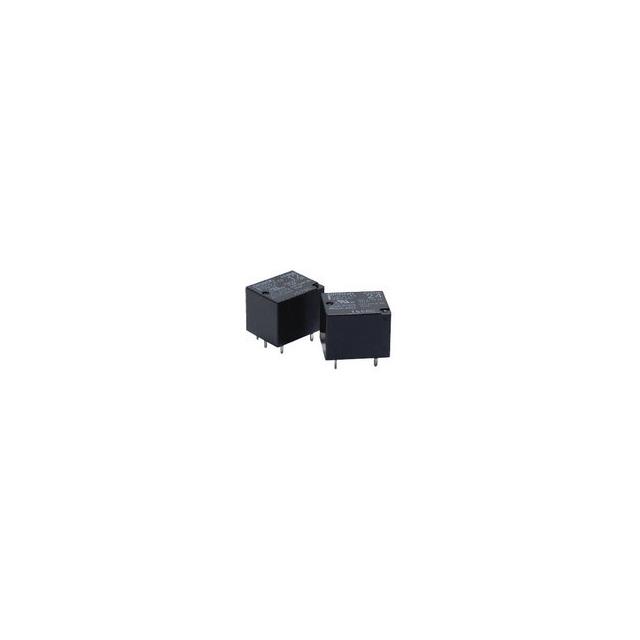

G5LA-14 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 5A 24V
| Part | Seal Rating | Release Time | Termination Style | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Coil Voltage | Operate Time | Switching Voltage | Load - Max Switching | Coil Insulation | Mounting Type | Coil Resistance | Contact Form | Contact Material | Contact Rating (Current) | Must Release Voltage | Approval Agency | Relay Type | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 15 mA | 24 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Class F | Through Hole | 1.6 kOhms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 2.4 VDC | UL | General Purpose | 18 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 72 mA | 5 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Class F | Through Hole | 69 Ohms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 0.5 VDC | UL | General Purpose | 3.75 VDC |
 Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 40 mA | 9 VDC | 10 ms | 24 VDC 250 VAC | Through Hole | 225 Ohms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 0.9 VDC | General Purpose | 6.75 VDC | |||
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 30 mA | 12 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Class F | Through Hole | 400 Ohms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 1.2 VDC | UL | General Purpose | 9 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 30 mA | 12 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Through Hole | 400 Ohms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 1.2 VDC | CSA | General Purpose | 9 VDC | |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 15 mA | 24 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Class F | Through Hole | 1.6 kOhms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 2.4 VDC | UL | General Purpose | 18 VDC |
 Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 15 mA | 24 VDC | 10 ms | 24 VDC 250 VAC | Through Hole | 1.6 kOhms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 2.4 VDC | General Purpose | 18 VDC | |||
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 30 mA | 12 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Class F | Through Hole | 400 Ohms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 1.2 VDC | UL | General Purpose | 9 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 10 mA | 48 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Class F | Through Hole | 4.8 kOhms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 4.8 VDC | UL | General Purpose | 36 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | PC Pin | Non Latching | 85 °C | -40 °C | 10 mA | 48 VDC | 10 ms | 24 VDC 250 VAC | 120 W 1250 VA | Class F | Through Hole | 4.8 kOhms | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 5 A | 4.8 VDC | UL | General Purpose | 36 VDC |
