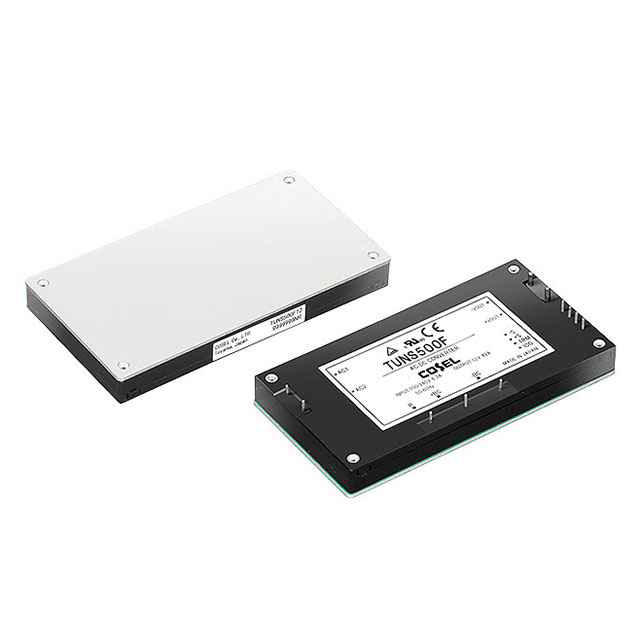

TUNS500 Series

Catalog

AC/DC CONVERTER 12V 500W

Part	Line Regulation	Load Regulation	Features	Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max)	Efficiency	Package / Case	Number of Outputs	Approval Agency	Mounting Type	Voltage - Output 1	Applications	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]
Cosel USA, Inc. TUNS500F12	24 mV	24 mV	Universal Input	Enclosed	500 W	117.3 mm	4.62 in	2.42 in	61.5 mm	0.5 in	12.7 mm	42 A	86 %	7-DIP Module	1	CE CSA cURus TUV UL	Through Hole	12 V	ITE (Commercial)	60950-1 62368-1	-40 °C	100 °C
Cosel USA, Inc. TUNS500F48	96 mV	96 mV	Universal Input	Enclosed	500 W	117.3 mm	4.62 in	2.42 in	61.5 mm	0.5 in	12.7 mm		90 %	7-DIP Module	1	CE CSA cURus TUV UL	Through Hole	48 V	ITE (Commercial)	60950-1 62368-1	-40 °C	100 °C	10.5 A
Cosel USA, Inc. TUNS500F28	56 mV	56 mV	Universal Input	Enclosed	500 W	117.3 mm	4.62 in	2.42 in	61.5 mm	0.5 in	12.7 mm		90 %	7-DIP Module	1	CE CSA cURus TUV UL	Through Hole	28 V	ITE (Commercial)	60950-1 62368-1	-40 °C	100 °C	18 A
