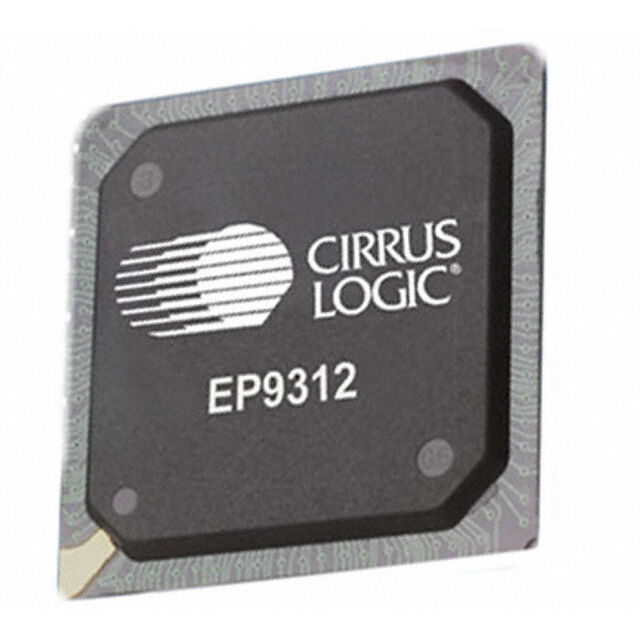

EP9312 Series

Catalog

IC MPU EP9 200MHZ 352BGA

Part	Mounting Type	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Co-Processors/DSP [custom]	Co-Processors/DSP [custom]	RAM Controllers	Core Processor	USB	Speed	Security Features	Number of Cores/Bus Width	Supplier Device Package	Package / Case	Display & Interface Controllers	Additional Interfaces	Voltage - I/O
Cirrus Logic Inc. EP9312-CB	Surface Mount	1 Mbps 10 Mbps 100 Mbps	0 °C	70 °C	MaverickCrunch™	Math Engine	SDRAM	ARM920T	USB 2.0 (3)	200 MHz	Hardware ID	1 32 Bit	352-PBGA (27x27)	352-BBGA	Keypad LCD Touchscreen	AC'97 I2S IDE IrDA SPI UART	1.8 V 3.3 V
Cirrus Logic Inc. EP9312-IBZ	Surface Mount	1 Mbps 10 Mbps 100 Mbps	-40 ¯C	85 C	MaverickCrunch™	Math Engine	SDRAM	ARM920T	USB 2.0 (3)	200 MHz	Hardware ID	1 32 Bit	352-PBGA (27x27)	352-BBGA	Keypad LCD Touchscreen	AC'97 I2S IDE IrDA SPI UART	1.8 V 3.3 V
Cirrus Logic Inc. EP9312-CBZ	Surface Mount	1 Mbps 10 Mbps 100 Mbps	0 °C	70 °C	MaverickCrunch™	Math Engine	SDRAM	ARM920T	USB 2.0 (3)	200 MHz	Hardware ID	1 32 Bit	352-PBGA (27x27)	352-BBGA	Keypad LCD Touchscreen	AC'97 I2S IDE IrDA SPI UART	1.8 V 3.3 V
