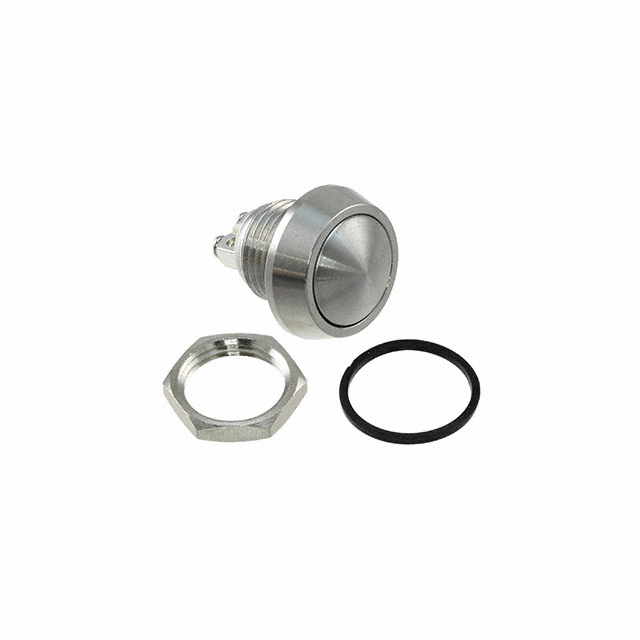

MMP0120 Series

Catalog

PUSHBUTTON SWITCHES BLACK ANODIZED BLUE BUTTON PIN TERM

Part	Switch Function	Type	Ingress Protection	Circuit	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Actuator Marking	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Mechanical Life	Features
BULGIN LIMITED MMP0120/ABLP	Off-Mom	Standard	IP65 - Dust Tight Water Resistant	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Blue	No Marking	Solder Lug	2 A

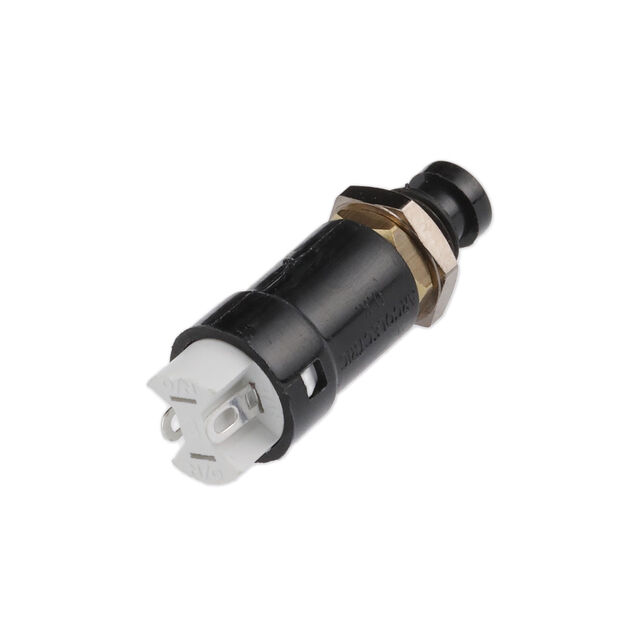

BULGIN LIMITED T0918SOAAG	On-Mom	Standard		SPST-NC	7.1 mm	Button Round		Panel Mount Rear				No Marking	Solder Lug	500 mA	250 V
BULGIN LIMITED MMP0120/ABKS	Off-Mom	Standard	IP65 - Dust Tight Water Resistant	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Black	No Marking	Screw Terminal	2 A		200000 Cycles	1000000 Cycles
BULGIN LIMITED MMP0120/ABLS	Off-Mom	Standard	IP65 - Dust Tight Water Resistant	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Blue	No Marking	Screw Terminal	2 A		200000 Cycles	1000000 Cycles

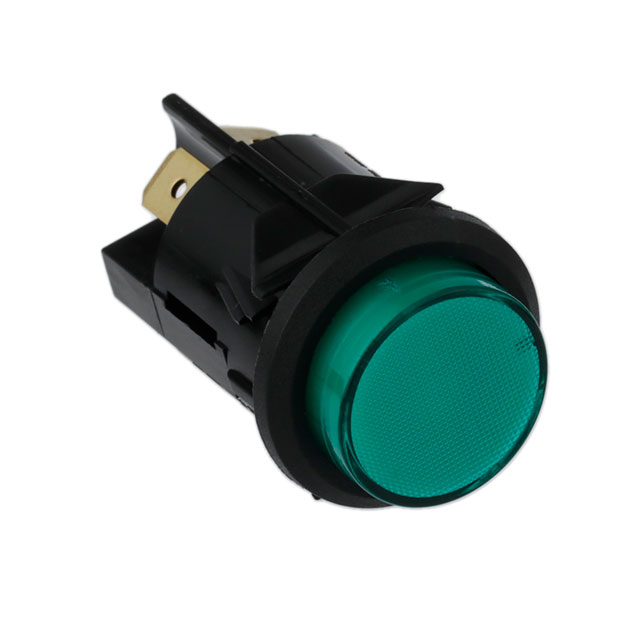

BULGIN LIMITED C7053AFNAB	On-Off	Illuminated Standard	IP40	DPST	25 mm	Button Round		Panel Mount Snap-In			Green	No Marking	Quick Connect - 0.250" (6.3mm)	16 A	250 V
BULGIN LIMITED MMP0120/NNBS	Off-Mom	Anti-Vandal	IP65 - Dust Tight Water Resistant	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Silver	No Marking	Screw Terminal	2 A		200000 Cycles	500000 Cycles
BULGIN LIMITED MMP0120/ARDP	Off-Mom	Standard	IP65 - Dust Tight Water Resistant	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Red	No Marking	Solder Lug	2 A
BULGIN LIMITED MMP0120/NNB67/S	Off-Mom	Anti-Vandal	IP67 - Dust Tight Waterproof	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Silver	No Marking	Screw Terminal	2 A		200000 Cycles	500000 Cycles

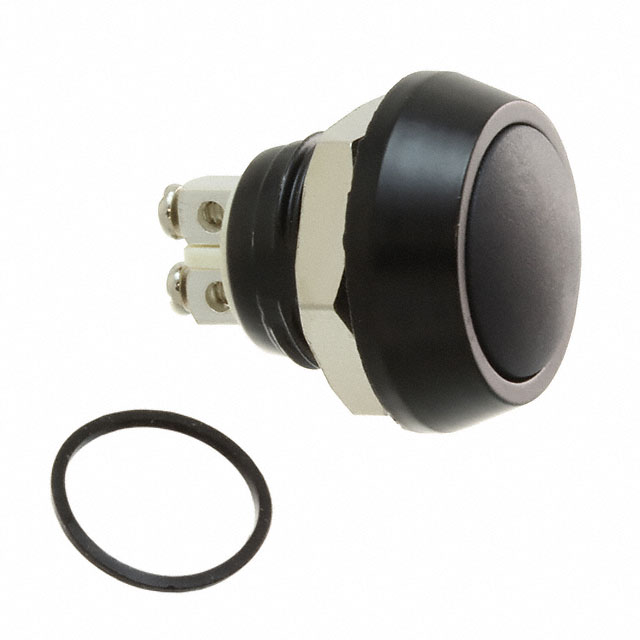

BULGIN LIMITED MMP0120/ABK67/S	Off-Mom	Standard	IP67 - Dust Tight Waterproof	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Black	No Marking	Screw Terminal	2 A		200000 Cycles	1000000 Cycles
BULGIN LIMITED MMP0120/SSS67/P	Off-Mom	Anti-Vandal	IP67 - Dust Tight Waterproof	SPST-NO	12 mm	Button Domed Round	36 VDC	Panel Mount Front	55 °C	-25 °C	Silver	No Marking	Solder Lug	2 A		200000 Cycles	500000 Cycles	Stainless Steel
