8P1P006 Series

Catalog

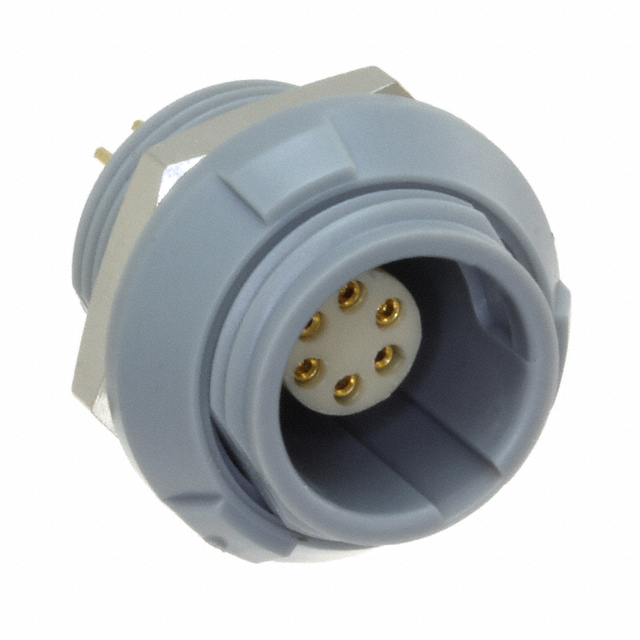

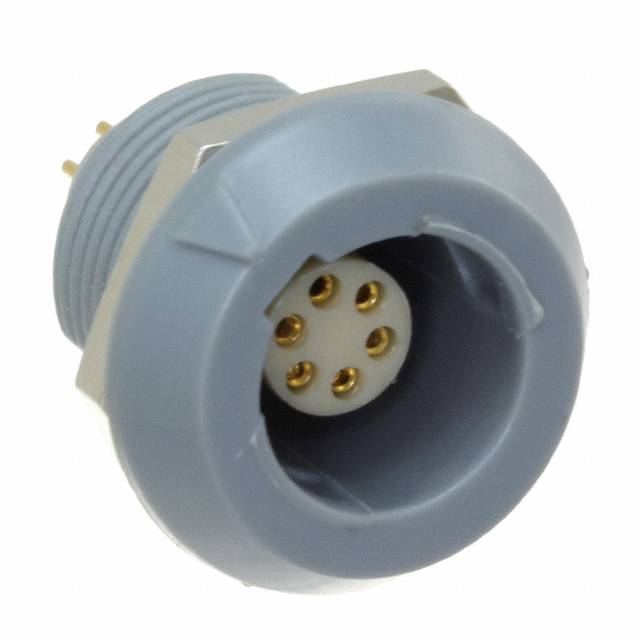

CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, BULKHEAD RECEPTACLE, 6 CONTACTS, SOLDER SOCKET

Part	Voltage Rating	Contact Material	Connector Type	Insert Material	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Current Rating (Amps)	Number of Positions	Mounting Type	Ingress Protection	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Primary Material	Fastening Type	Orientation	Mounting Feature	Features	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Termination
NorComp Inc. 8P1P006200VRB01	450 V	Copper Alloy	Receptacle Female Sockets	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Panel Mount	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Gray Green	Plastic	Push-Pull	Keyed	Bulkhead - Front Side Nut
NorComp Inc. 8P1P00617BGL421	450 V	Copper Alloy	Plug Male Pins	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Gray	Plastic	Push-Pull	Keyed		Backshell Strain Relief	3.99 mm	0.087 in	2.2 mm	0.157 in
NorComp Inc. 8P1P00617NAL621	450 V	Copper Alloy	Plug Male Pins	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Blue Gray	Plastic	Push-Pull	Keyed			6 mm	0.197 in	5 mm	0.236 in
NorComp Inc. 8P1P00617NRL521	450 V	Copper Alloy	Plug Male Pins	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Gray Red	Plastic	Push-Pull	Keyed			5 mm	0.157 in	4 mm	0.197 in
NorComp Inc. 8P1P006210GRBR1	450 V	Copper Alloy	Receptacle Female Sockets	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Panel Mount Right Angle Through Hole	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Gray	Plastic	Push-Pull	Keyed	Bulkhead - Front Side Nut						Solder
NorComp Inc. 8P1P006210RRB01	450 V	Copper Alloy	Receptacle Female Sockets	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Panel Mount Through Hole	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Gray Red	Plastic	Push-Pull	Keyed	Bulkhead - Front Side Nut						Solder
NorComp Inc. 8P1P00617NNL521	450 V	Copper Alloy	Plug Male Pins	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	120 °C	-20 ░C		Plastic	Push-Pull	Keyed			5 mm	0.157 in	4 mm	0.197 in
NorComp Inc. 8P1P00617BJL521	450 V	Copper Alloy	Plug Male Pins	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Gray Yellow	Plastic	Push-Pull	Keyed		Backshell Strain Relief	5 mm	0.157 in	4 mm	0.197 in
NorComp Inc. 8P1P00617NRL421	450 V	Copper Alloy	Plug Male Pins	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	120 °C	-20 ░C	Gray Red	Plastic	Push-Pull	Keyed			3.99 mm	0.087 in	2.2 mm	0.157 in
NorComp Inc. 8P1P00617NNL421	450 V	Copper Alloy	Plug Male Pins	Polyphenylene Sulfide (PPS)	Unshielded	7 µin	0.178 µm	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	6 A	6	Free Hanging (In-Line)	IP50 - Dust Protected	Gold	120 °C	-20 ░C		Plastic	Push-Pull	Keyed			3.99 mm	0.087 in	2.2 mm	0.157 in
