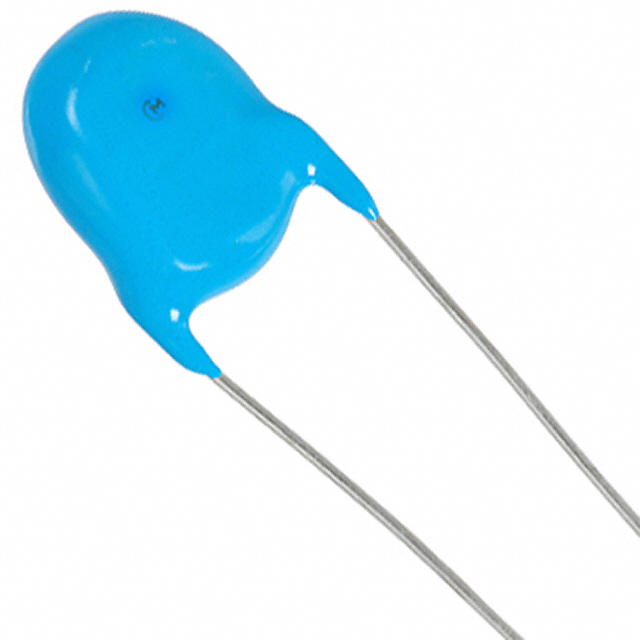

DEC1X3J Series

Catalog

CAP CER 47PF 6.3KV SL RADIAL

Part	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Capacitance	Applications	Tolerance	Height - Seated (Max) [Max]	Size / Dimension
Murata Electronics DEC1X3J470JC4B	0.394 in	10 mm	Through Hole	85 °C	-25 °C	High Voltage	9 mm	0.354 in	SL	6300 V	6.3 kV	Disc Radial	0.512 "	13 mm	Straight	47 pF	General Purpose	5 %
Murata Electronics DEC1X3J470JA3B	0.295 in	7.5 mm	Through Hole	85 °C	-25 °C	High Voltage	9 mm	0.354 in	SL	6300 V	6.3 kV	Disc Radial	0.512 "	13 mm	Straight	47 pF	General Purpose	5 %
Murata Electronics DEC1X3J390JC4B	0.394 in	10 mm	Through Hole	85 °C	-25 °C	High Voltage	9 mm	0.354 in	SL	6300 V	6.3 kV	Disc Radial	0.512 "	13 mm	Straight	39 pF	General Purpose	5 %
Murata Electronics DEC1X3J220JC4B	0.394 in	10 mm	Through Hole	85 °C	-25 °C	High Voltage	9 mm	0.354 in	SL	6300 V	6.3 kV	Disc Radial	0.512 "	13 mm	Straight	22 pF	General Purpose	5 %
Murata Electronics DEC1X3J101JC4B	0.394 in	10 mm	Through Hole	85 °C	-25 °C	High Voltage		0.512 in	SL	6300 V	6.3 kV	Disc Radial	0.669 "		Straight	100 pF	General Purpose	5 %	17 mm	13 mm

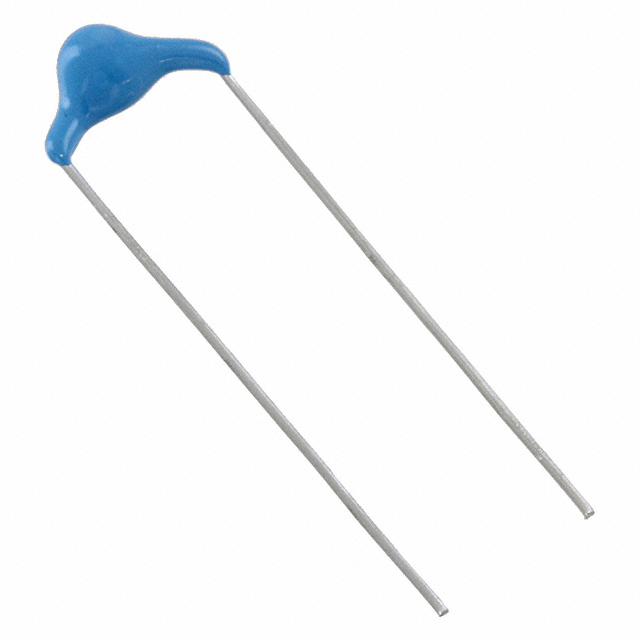

Murata Electronics DEC1X3J100JA3BMS1	0.295 in	7.5 mm	Through Hole	85 °C	-25 °C	High Voltage	7 mm	0.276 in	SL	6300 V	6.3 kV	Disc Radial	0.433 in	11 mm	Formed Leads	10 pF	General Purpose	5 %
Murata Electronics DEC1X3J820JC4B	0.394 in	10 mm	Through Hole	85 °C	-25 °C	High Voltage	12 mm	0.472 "	SL	6300 V	6.3 kV	Disc Radial	0.63 in	16 mm	Straight	82 pF	General Purpose	5 %
Murata Electronics DEC1X3J151JC4B	0.394 in	10 mm	Through Hole	85 °C	-25 °C	High Voltage		0.591 in	SL	6300 V	6.3 kV	Disc Radial	0.748 in	19 mm	Straight	150 pF	General Purpose	5 %		15 mm
