9058 Series
Manufacturer: Belden Inc.
Beta
⌘K

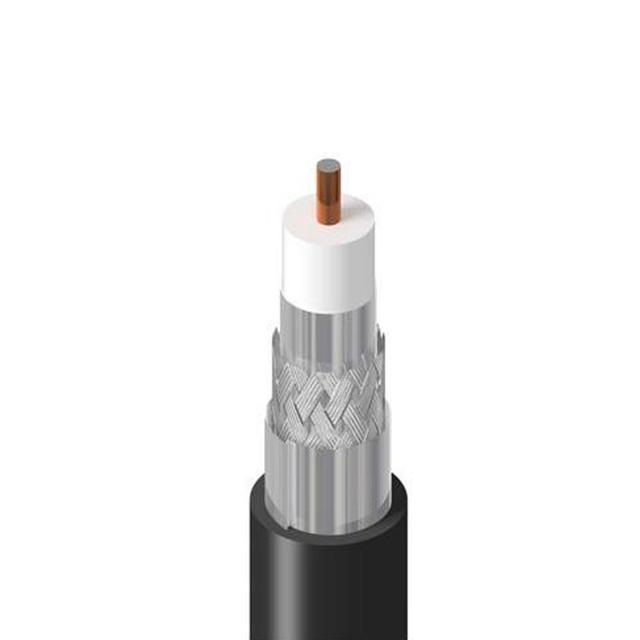

COAX 75 OHM RG6 18AWG
| Part | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Dielectric Material | Shield Material | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Strand | Cable Type | Impedance | Jacket Color | Jacket (Insulation) Material | Length [x] | Length [x] | Cable Group | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Coated Steel | 0.18 in | 4.57 mm | 75 % 100 % | Foam Polyethylene (FPE) | Aluminum | 83 | 80 °C | -40 C | 18 AWG | Solid | Coaxial | 75 Ohms | Black | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | RG-6 | Braid Foil | 6.99 mm | 0.275 in |
