AAAF3529 Series

Catalog

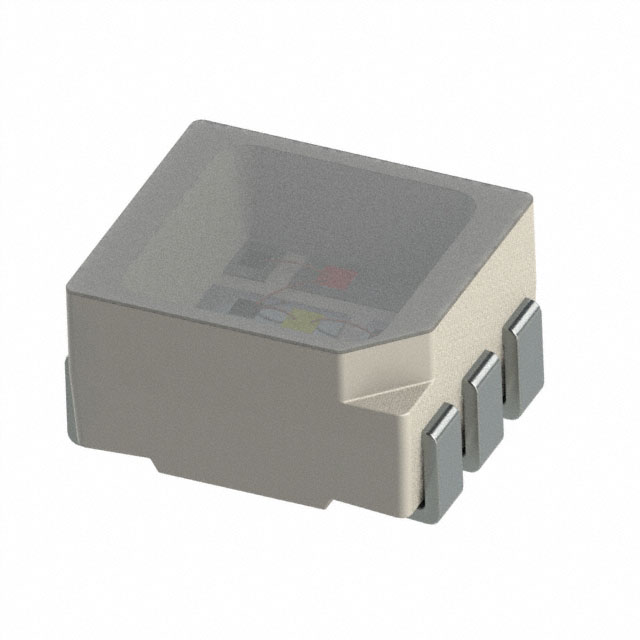

STANDARD LEDS - SMD 3.5X2.8MM RGB SM RGB SMD

Part	Lens Style	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Color	Size / Dimension [y]	Size / Dimension [x]	Lens Size	Lens Color	Current - Test	Viewing Angle	Package / Case	Lens Transparency	Configuration	Supplier Device Package	Height (Max) [z]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Mounting Type	Wavelength - Peak	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Millicandela Rating
Kingbright AAAF3529SEEZGKQBKS	Square with Flat Top	2 V 3.3 V 3.3 V	465 nm 525 nm 621 nm	Blue Green Red	2.8 mm	3.2 mm	2.44 mm	Colorless	20mA Blue 20mA Green 20mA Red	120 °	6-PLCC	Clear	Independent	6-SMD	1.85 mm	180 mcd	580 mcd	130 mcd	Surface Mount	460 nm 515 nm 630 nm
Kingbright AAAF3529LSEKJ3ZGKQBS	Square with Flat Top	1.8 V 2.7 V 2.7 V		Blue Green Red	2.8 mm	3.2 mm	2.44 mm	Colorless		120 °	6-PLCC	Clear	Independent	6-SMD	1.85 mm	60 mcd	180 mcd	30 mcd	Surface Mount	460 nm 515 nm 640 nm	2 mA	2 mA	2 mA	465nm Blue 525nm Green 625nm Red

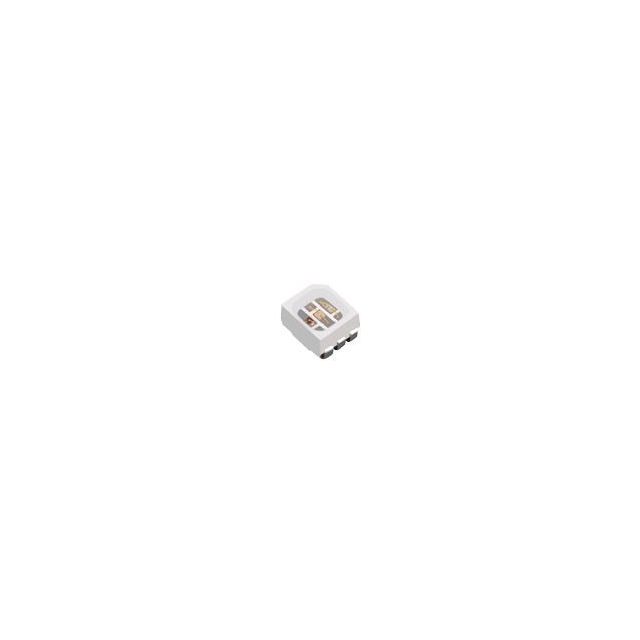

Kingbright AAAF3529VBDSEJ3ZGS	Square with Flat Top	2.2 V 3.3 V 3.3 V		Blue Green Red	2.8 mm	3.2 mm	2.44 mm	Colorless	20mA Blue 20mA Green 20mA Red	120 °	6-PLCC	Clear	Independent	Chip LED	1.85 mm	560 mcd	580 mcd	300 mcd	Surface Mount	465 nm 515 nm 640 nm				470nm Blue 525nm Green 625nm Red
Kingbright AAAF3529SEKJ3ZGKQBKS	Square with Flat Top	2.2 V 3.3 V 3.3 V		Blue Green Red	2.8 mm	3.2 mm	2.44 mm	Colorless	20mA Blue 20mA Green 20mA Red	120 °	6-PLCC	Clear	Independent	6-SMD	1.85 mm				Surface Mount	460 nm 515 nm 640 nm				465nm Blue 525nm Green 625nm Red	130 mcd 500 mcd 580 mcd

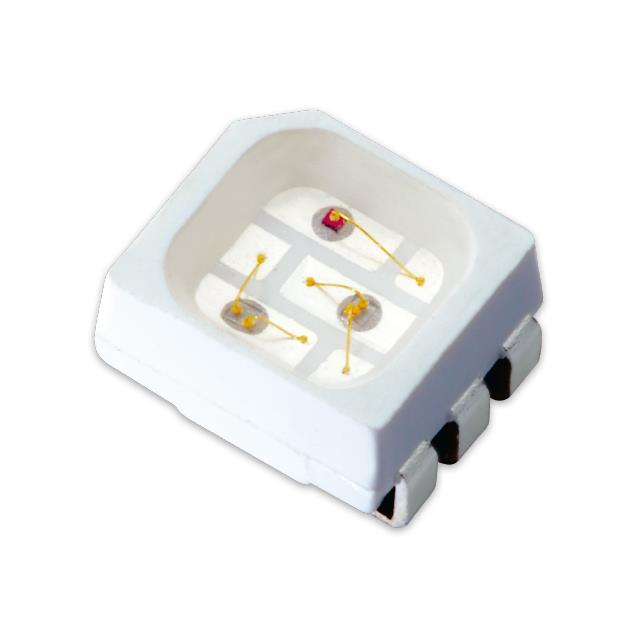

Kingbright AAAF3529LSEEZGKQBKS	Square with Flat Top	1.8 V 2.7 V 2.7 V	465 nm 525 nm 621 nm	Blue Green Red	2.8 mm	3.2 mm	2.44 mm	Colorless		120 °	6-PLCC	Clear	Independent	6-SMD	1.85 mm	20 mcd	180 mcd	30 mcd	Surface Mount	460 nm 515 nm 630 nm	2 mA	2 mA	2 mA
Kingbright AAAF3529SEEZGQBDS	Square with Flat Top	2 V 3.3 V 3.3 V	465 nm 525 nm 621 nm	Blue Green Red	2.8 mm	3.2 mm	2.44 mm	Colorless	20mA Blue 20mA Green 20mA Red	120 °	6-PLCC	Clear	Independent	Chip LED	1.85 mm	180 mcd	580 mcd	130 mcd	Surface Mount	460 nm 515 nm 630 nm
