R19196 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

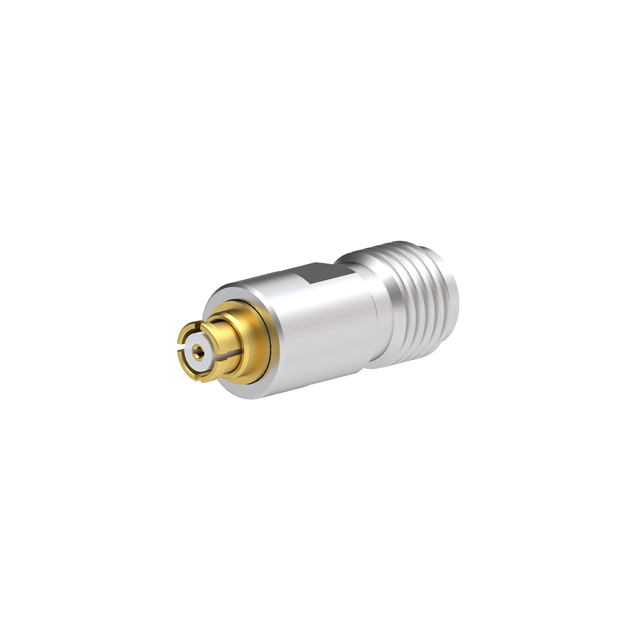

SMA 2.9 FEMALE - SMP FEMALE STRA
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Material | Center Gender | Impedance | Center Contact Plating | Conversion Type | Adapter Series | Adapter Type | Fastening Type | Convert From (Adapter End) | Style | Convert To (Adapter End) | Frequency - Max [Max] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | Beryllium Copper | Female to Female | 50 Ohms | Gold | Between Series | SMA to SMP | Jack to Jack | Snap-On Threaded | Female Socket SMA Jack | Straight | SMP Jack Female Socket | 40 GHz | Free Hanging (In-Line) | |
 Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | Beryllium Copper | Female to Female | 50 Ohms | Gold | Between Series | SMA to SMP | Jack to Jack | Snap-On Threaded | Female Socket SMA Jack | Straight | SMP Jack Female Socket | 40 GHz | Free Hanging (In-Line) | |
 Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | Beryllium Copper | Male to Male | 50 Ohms | Gold | Between Series | SMA to SMP | Plug to Plug | Snap-On Threaded | Male Pin SMA Plug | Straight | 40 GHz | Free Hanging (In-Line) | Full Detent | |
Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | Beryllium Copper | 50 Ohms | Gold | Between Series | SMA to SMP | Plug to Jack | Snap-On Threaded | Male Pin SMA Plug | Straight | SMP Jack Female Socket | 40 GHz | Free Hanging (In-Line) | ||
Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | 50 Ohms | Gold | Between Series | SMA to SMP | Plug to Jack | Snap-On Threaded | Female Socket SMA Jack | Straight | 40 GHz | Free Hanging (In-Line) | Full Detent | |||
Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | Beryllium Copper | Male to Male | 50 Ohms | Gold | Between Series | SMA to SMP | Plug to Plug | Snap-On Threaded | Male Pin SMA Plug | Straight | 40 GHz | Free Hanging (In-Line) | Full Detent | |
 Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | Beryllium Copper | 50 Ohms | Gold | Between Series | SMA to SMP | Plug to Jack | Snap-On Threaded | Male Pin SMA Plug | Straight | SMP Jack Female Socket | 40 GHz | Free Hanging (In-Line) | ||
 Radiall USA, Inc. | Nylon Polyamide (PA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | 50 Ohms | Gold | Between Series | SMA to SMP | Plug to Jack | Snap-On Threaded | Female Socket SMA Jack | Straight | 40 GHz | Free Hanging (In-Line) | Full Detent |
