29613 Series
Manufacturer: Phoenix Contact
Beta
⌘K
POWER RELAY 12VDC 16A SPDT(29MM 12.7MM 15.7MM) THT
| Part | Coil Resistance | Approval Agency | Contact Material | Coil Type | Contact Rating (Current) | Operate Time | Switching Voltage | Release Time | Relay Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Coil Current | Coil Voltage | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 360 Ohms | cULus EAC UR | Silver Nickel (AgNi) | Non Latching | 16 A | 7 ms | 250 VAC 250 VDC | 3 ms | General Purpose | PC Pin | 85 °C | -40 C | Through Hole | 33 mA | 12 VDC | SPDT (1 Form C) |

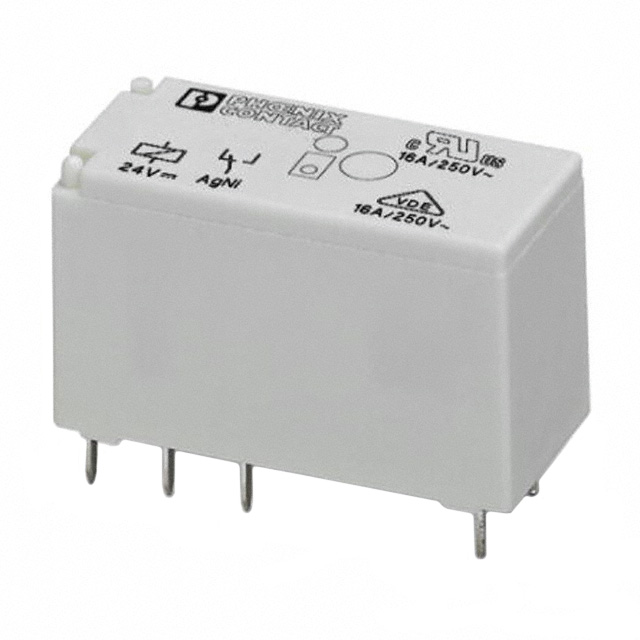

 Phoenix Contact | 1440 Ohms | cULus EAC UR | Silver Nickel (AgNi) | Non Latching | 16 A | 7 ms | 250 VAC 250 VDC | 3 ms | General Purpose | PC Pin | 85 °C | -40 C | Through Hole | 17 mA | 24 VDC | SPDT (1 Form C) |
 Phoenix Contact | 119 Ohms | cULus EAC UR | Silver Tin Oxide (AgSnO) | Non Latching | 6 A | 5 ms | 250 VAC 250 VDC | 2.5 ms | General Purpose | PC Pin | 85 °C | -40 C | Through Hole | 38 mA | 4.5 VDC | SPDT (1 Form C) |
 Phoenix Contact | 26.6 kOhms | cULus EAC UR | Silver Nickel (AgNi) | Non Latching | 16 A | 7 ms | 250 VAC 250 VDC | 3 ms | General Purpose | PC Pin | 85 °C | -40 C | Through Hole | 4.1 mA | 110 VDC | SPDT (1 Form C) |

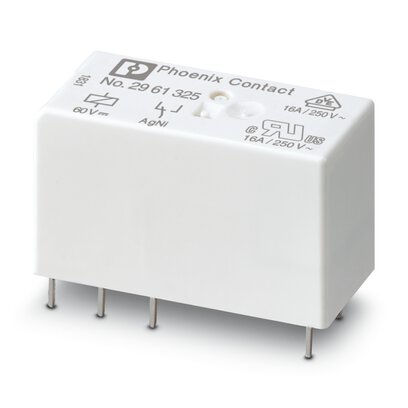

 Phoenix Contact | 7.34 kOhms | cULus EAC UR | Silver Nickel (AgNi) | Non Latching | 16 A | 7 ms | 250 VAC 250 VDC | 3 ms | General Purpose | PC Pin | 85 °C | -40 C | Through Hole | 8.2 mA | 60 VDC | SPDT (1 Form C) |

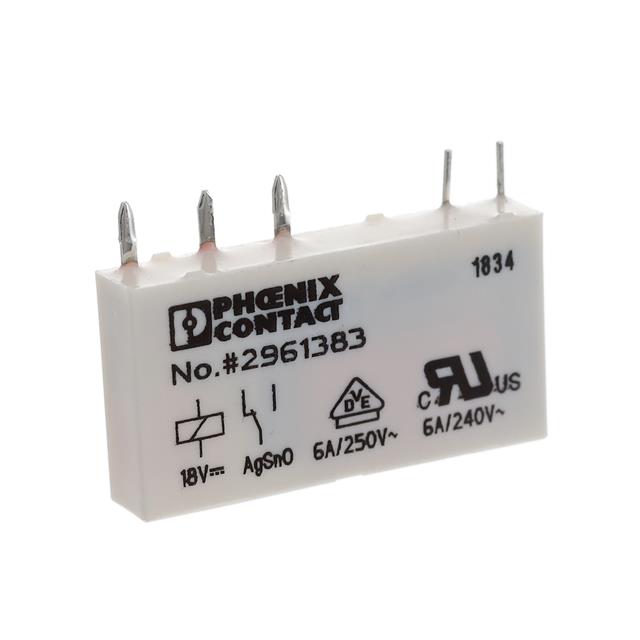

 Phoenix Contact | 2 kOhms | cULus EAC UR | Silver Tin Oxide (AgSnO) | Non Latching | 6 A | 5 ms | 250 VAC 250 VDC | 2.5 ms | General Purpose | PC Pin | 85 °C | -40 C | Through Hole | 9 mA | 18 VDC | SPDT (1 Form C) |

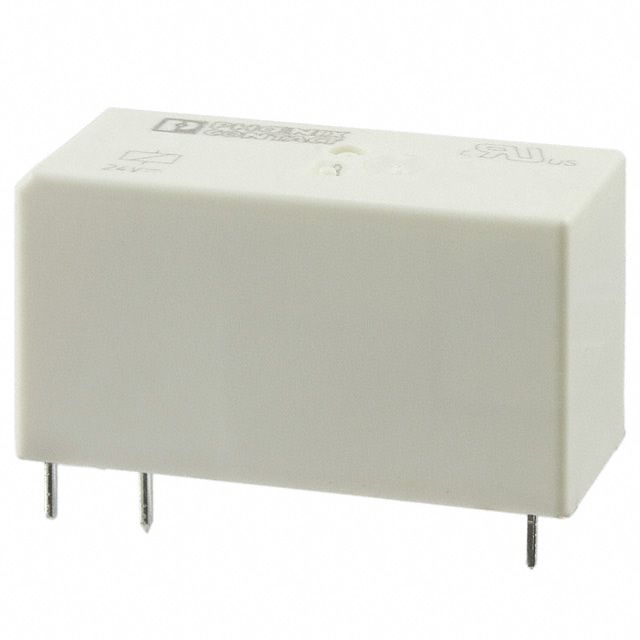

 Phoenix Contact | 1440 Ohms | cULus EAC UR | Silver Tin Oxide (AgSnO) | Non Latching | 16 A | 8 ms | 250 VAC 250 VDC | 3 ms | General Purpose | PC Pin | 85 °C | -40 C | Through Hole | 17 mA | 24 VDC | SPST-NO (1 Form A) |
