8521 Series

Catalog

HOOK-UP STRND 16AWG BLUE

Part	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Voltage	Jacket Color	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Qualification	Wire Gauge	Conductor Material	Length	Length
Belden Inc. 8521 013100	100 ft	30.5 m	0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Blue	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned
Belden Inc. 8521 003100	100 ft	30.5 m	0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Orange	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned
Belden Inc. 8521 0021000			0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Red	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned	304.8 m	1000 ft
Belden Inc. 8521 0191000			0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	White Brown Stripe	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned	304.8 m	1000 ft
Belden Inc. 8521 0141000			0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Black Stripe White	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned	304.8 m	1000 ft
Belden Inc. 8521 0171000			0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	White Yellow Stripe	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned	304.8 m	1000 ft

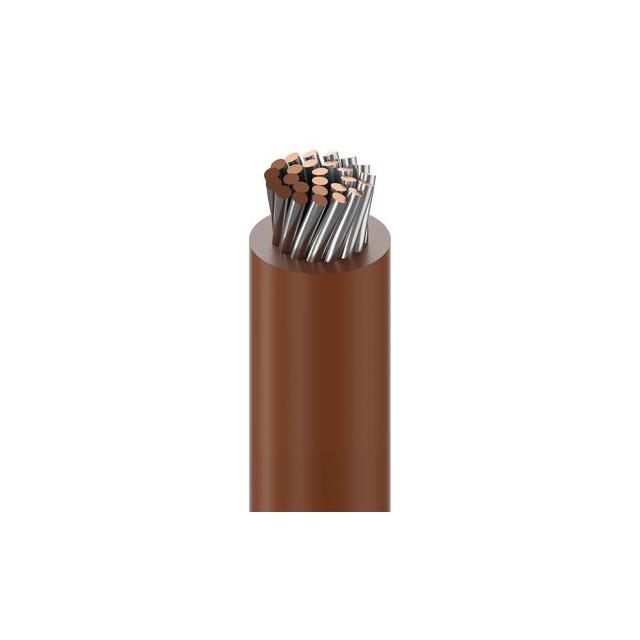

Belden Inc. 8521 0031000			0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Orange	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned	304.8 m	1000 ft
Belden Inc. 8521 0051000			0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Green	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned	304.8 m	1000 ft
Belden Inc. 8521 0071000			0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Violet	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned	304.8 m	1000 ft

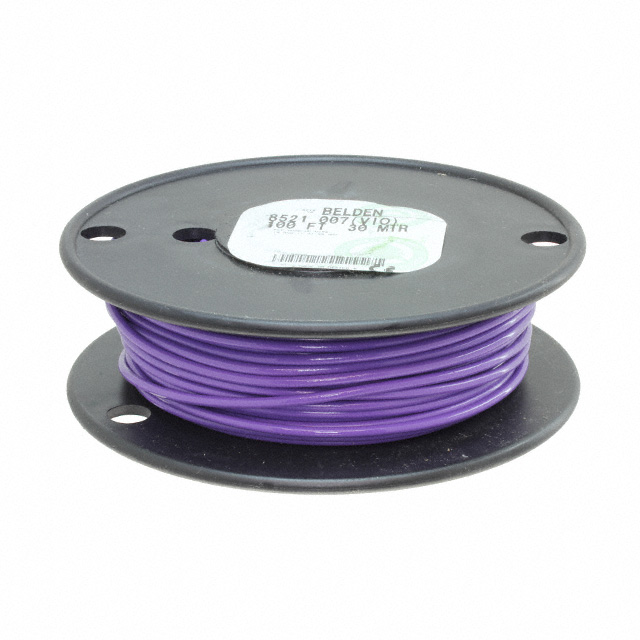

Belden Inc. 8521 007100	100 ft	30.5 m	0.019 "	0.48 mm	Chemical Resistant	30 AWG	26	80 °C	-40 C	Poly-Vinyl Chloride (PVC)	1 kV	Violet	Hook-Up	0.098 in	2.48 mm	MIL-W-76C Type MW	16 AWG	Copper Tinned
