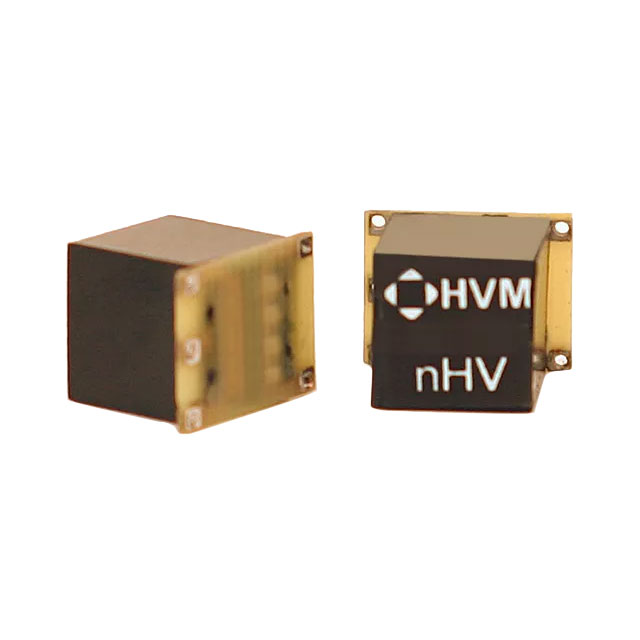

NHV05 Series
Manufacturer: HVM Technology, Inc.
Beta
⌘K
DC DC CONVERTER -1000V 100MW
| Part | Current - Output (Max) [Max] | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Number of Outputs | Applications | Voltage - Input (Min) [Min] | Mounting Type | Type | Power (Watts) | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HVM Technology, Inc. | 100 µA | -1000 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 200 µA | 500 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 0.5 mA | 200 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 83 µA | -1200 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 200 µA | -500 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 100 µA | 1000 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 0.5 mA | -200 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 83 µA | 1200 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
HVM Technology, Inc. | 1 mA | 100 V | -55 C | 70 °C | 5.5 V | 1 | ITE (Commercial) | 4.5 V | Surface Mount | High Voltage - Non-Isolated Module | 0.1 W | 0.37 in | 8.9 mm 9.4 mm 11.4 mm | 0.45 " | 0.35 in | 5-SMD Module |
