SI-N8T Series

Catalog

LED MOD RND-090C WHT RND 4000K

Part	CRI (Color Rendering Index)	Color	Current - Max [Max]	CCT (K)	CCT (K)	Type	Viewing Angle	Current - Test	Temperature - Test	Lumens/Watt @ Current - Test	Features	Luminous Flux @ Current/Temperature	Height [z]	Configuration	Lens Type	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Height	Size / Dimension [y]	Size / Dimension [x]

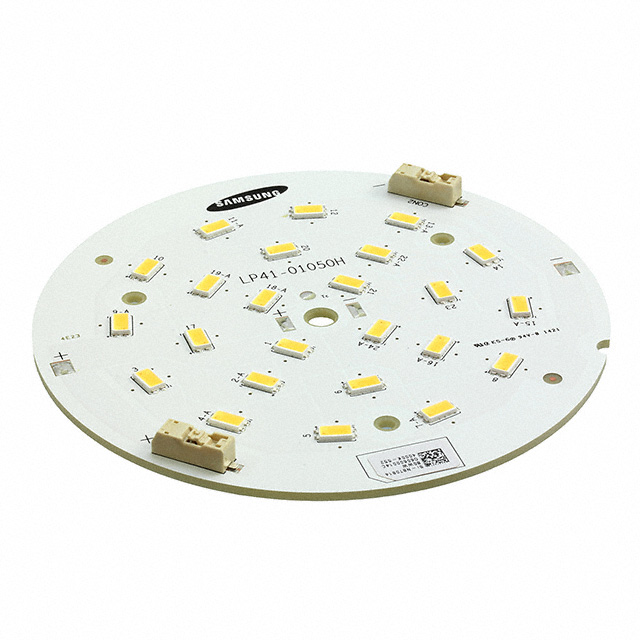

Samsung Semiconductor, Inc. SI-N8T0814B0WW	80	Neutral White	450 mA	4000 K	4-Step MacAdam Ellipse	LED Module	115 °	350 mA	55 °C	131 lm/W	With Connector	1100 lm	5.75 mm	Round	Flat	90 mm	24 V

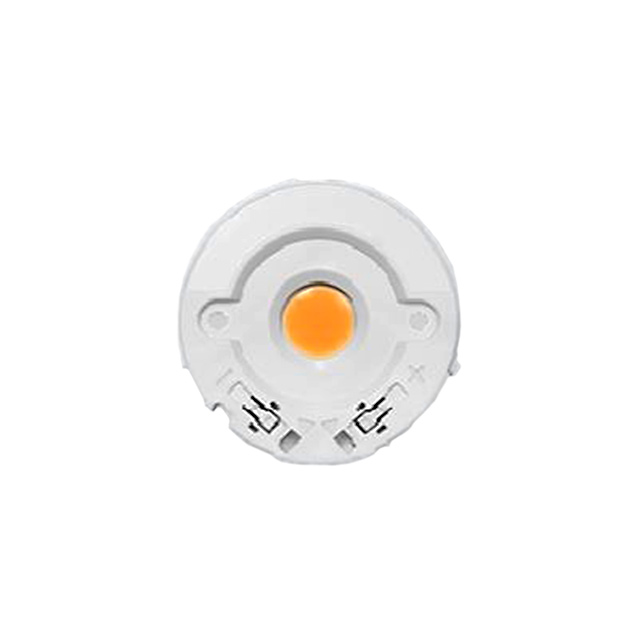

Samsung Semiconductor, Inc. SI-N8T1312B0WW	80	Neutral White	350 mA	4000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	115 °	250 mA	75 °C	141 lm/W	With Connector	1180 lm	6.1 mm	Round	Flat	50 mm	33.5 V	13.5 mm
Samsung Semiconductor, Inc. SI-N8T1816E0WW	80	Neutral White	1.4 A	4000 K		LED Module	140 °	780 mA	65 °C	108 lm/W		1980 lm		Square			23.4 V		2.2 mm	19 mm	19 mm

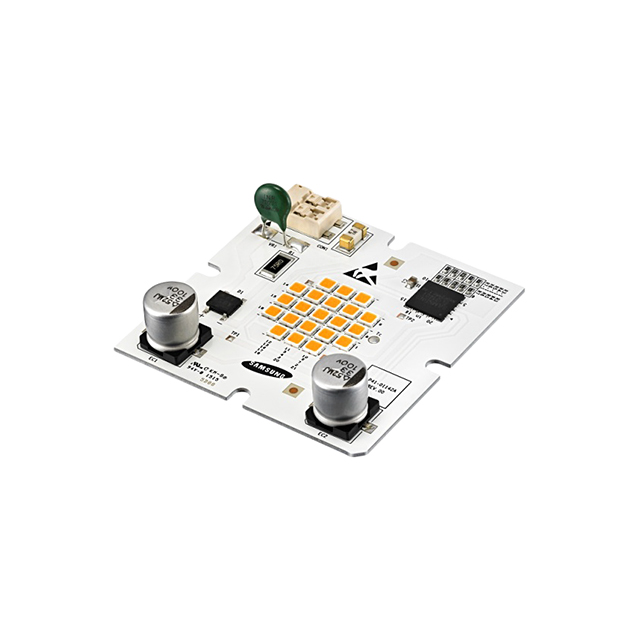

Samsung Semiconductor, Inc. SI-N8T1123B1US	80	Neutral White		4000 K		LED Module	115 °		25 °C	106 lm/W		1200 lm	12.5 mm	Square	Flat		120 VAC			55 mm	55 mm
Samsung Semiconductor, Inc. SI-N8T1113B1US	80	Neutral White		4000 K		LED Module	115 °		25 °C	107 lm/W		1210 lm	12.5 mm	Square	Flat		120 VAC			55 mm	55 mm
Samsung Semiconductor, Inc. SI-N8T0916E0WW	80	Neutral White	700 mA	4000 K		LED Module	150 °	400 mA	65 °C	107 lm/W		1010 lm		Square			23.5 V		2.2 mm	19 mm	19 mm
