CHS80483 Series

Catalog

DC DC CONVERTER 3.3V 83W

Part	Applications	Power (Watts)	Package / Case	Efficiency	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Outputs
Cosel USA, Inc. CHS80483R3	ITE (Commercial)	83 W	8-DIP Module	92 %	250 V	22.8 mm	0.9 in	10.5 mm	0.41 in	1.3 in	33 mm	3.3 V	36 V	76 V	Isolated Module	25 A	-40 °C	85 °C	Through Hole	1
Cosel USA, Inc. CHS80483R3-U	ITE (Commercial)	83 W	8-DIP Module	92 %	250 V	22.8 mm	0.9 in	10.5 mm	0.41 in	1.3 in	33 mm	3.3 V	36 V	76 V	Isolated Module	25 A	-40 °C	85 °C	Through Hole	1

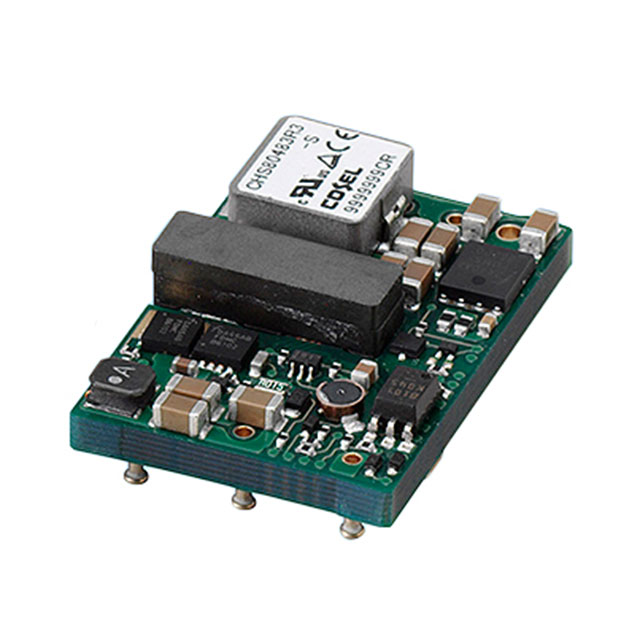

Cosel USA, Inc. CHS80483R3-S	ITE (Commercial)	83 W	8-SMD Module	92 %	250 V	22.8 mm	0.9 in	10.5 mm	0.41 in	1.3 in	33 mm	3.3 V	36 V	76 V	Isolated Module	25 A	-40 °C	85 °C	Surface Mount	1
