SFW24S Series

Catalog

CONN CIC VERT 24POS 1MM SMD

Part	Mating Cycles	Housing Color	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Cable End Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Positions	Voltage Rating	Termination	Contact Material	Actuator Material	Contact Finish	FFC, FCB Thickness	Housing Material	Flat Flex Type	Connector/Contact Type	Locking Feature	Actuator Color	Features	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SFW24S-6STE1LF	10	Brown	0.209 in	5.3 mm	UL94 V-0	Straight or Tapered	Surface Mount	-55 C	85 °C	1 mm	0.039 in	24	100 V	Kinked Pin	Phosphor Bronze	Thermoplastic Glass Filled	Tin	0.3 mm	Glass Filled Thermoplastic	CIC	Contacts Vertical - 1 Sided
Amphenol ICC (FCI) SFW24S-2STE1LF	20	Brown	0.209 in	5.3 mm	UL94 V-0		Surface Mount	-55 C	105 ░C	1 mm	0.039 in	24	100 V	Solder	Phosphor Bronze	Thermoplastic Glass Filled	Tin	0.33 mm	Glass Filled Thermoplastic	FFC FPC	Contacts Vertical - 1 Sided	Slide Lock
Amphenol ICC (FCI) SFW24S-6STME1	10	Brown	0.209 in	5.3 mm	UL94 V-0	Tapered	Surface Mount	-55 C	85 °C	1 mm	0.039 in	24	100 V	Solder	Phosphor Bronze	Thermoplastic Glass Filled	Tin Alloy	0.3 mm	Glass Filled Thermoplastic	CIC	Contacts Vertical - 1 Sided	Slide Lock	Black	Solder Retention Zero Insertion Force (ZIF)

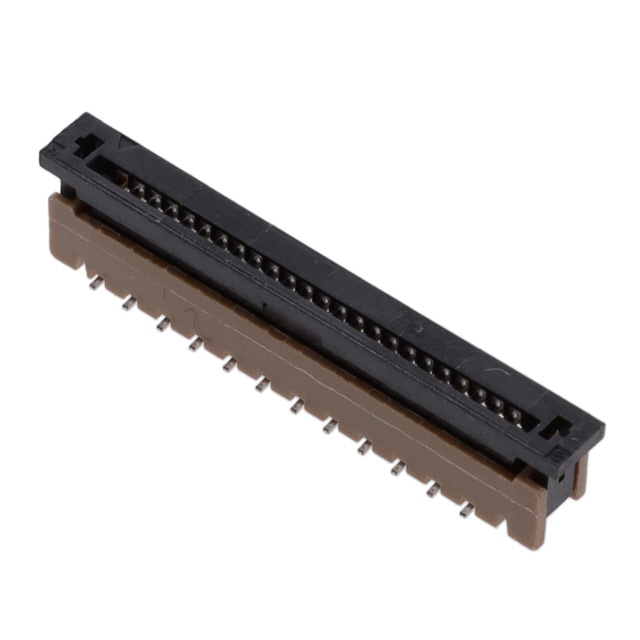

Amphenol ICC (FCI) SFW24S-2STE9LF	20	Brown	0.209 in	5.3 mm	UL94 V-0	Straight Tapered	Surface Mount	-55 C	85 °C	1 mm	0.039 in	24	100 V	Solder	Phosphor Bronze	Thermoplastic Glass Filled	Tin		Glass Filled Thermoplastic	FFC FPC	Contacts Vertical - 1 Sided	Slide Lock	Black		0.3 mm	0.33 mm

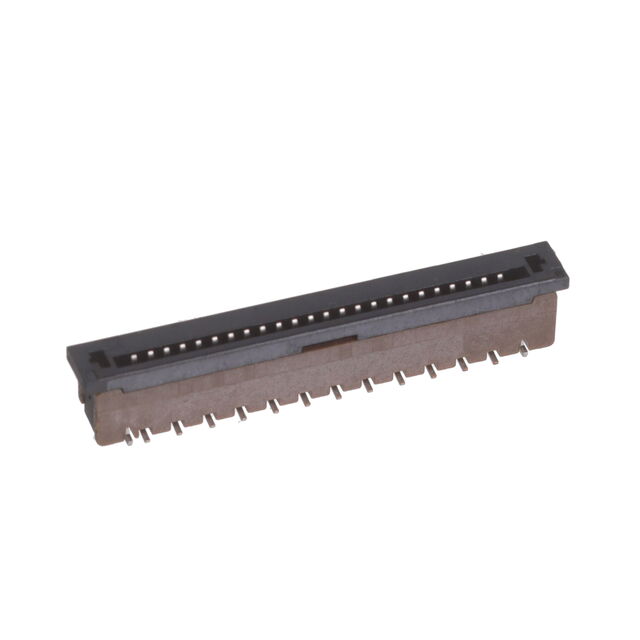

Amphenol ICC (FCI) SFW24S-2STME1LF	20	Brown	0.209 in	5.3 mm	UL94 V-0		Surface Mount	-55 C	105 ░C	1 mm	0.039 in	24	100 V	Solder	Phosphor Bronze	Thermoplastic Glass Filled	Tin	0.33 mm	Glass Filled Thermoplastic	FFC FPC	Contacts Vertical - 1 Sided
