PT10LV10 Series

Manufacturer: Amphenol Piher Sensing Systems

Catalog

TRIMMER 100KOHM 0.15W PC PIN TOP

Part	Power (Watts)	Temperature Coefficient	Number of Turns	Termination Style	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Resistance	Mounting Type	Tolerance	Resistive Material	Adjustment Type
Amphenol Piher Sensing Systems PT10LV10-104A2020-I-PM-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	100 kOhms	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-102A2020-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	1000 Ohms	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-203A2020-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	20 kOhms	Through Hole	20 %	Carbon	Top Adjustment

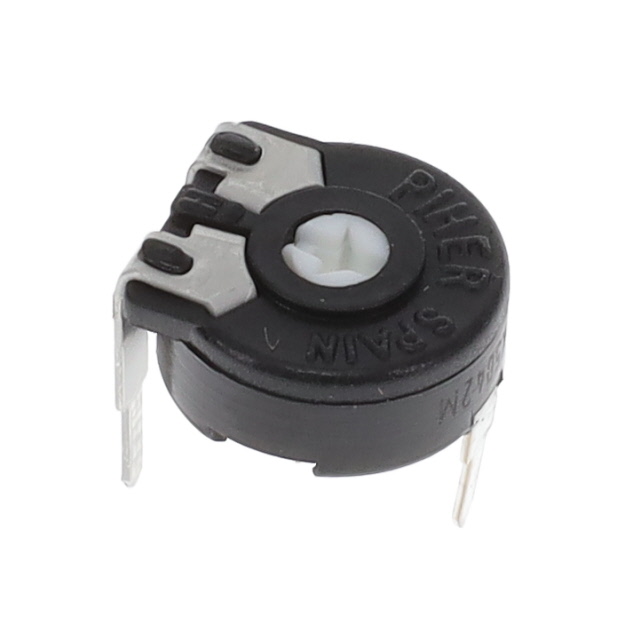

Amphenol Piher Sensing Systems PT10LV10-252A2020-PM-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	2500 Ohms	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-253A2020-PM-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	25 kOhms	Through Hole	20 %	Carbon	Top Adjustment

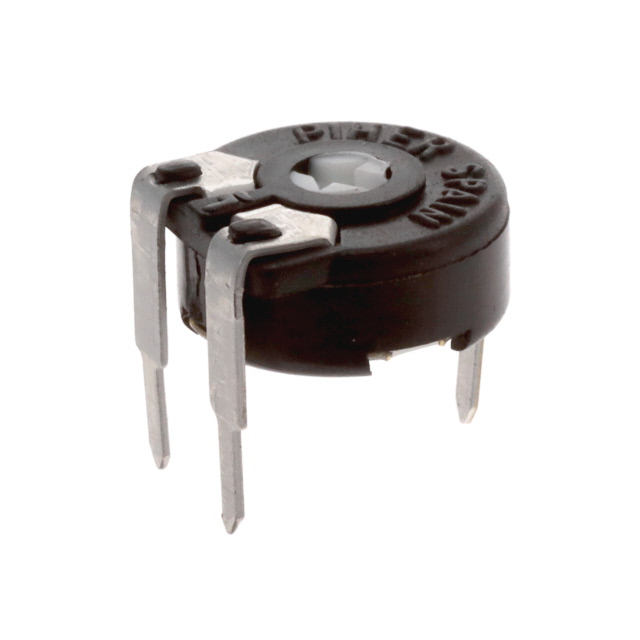

Amphenol Piher Sensing Systems PT10LV10-253A2020-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	25 kOhms	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-223A2020-PM-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	22 kOhms	Through Hole	20 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-102A2020-PM-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	1000 Ohms	Through Hole	20 %	Carbon	Top Adjustment

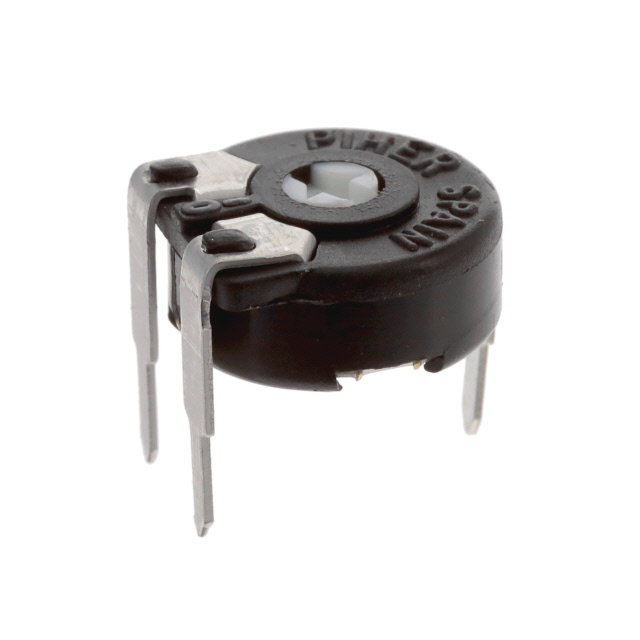

Amphenol Piher Sensing Systems PT10LV10-205A3030-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	2 MOhms	Through Hole	30 %	Carbon	Top Adjustment
Amphenol Piher Sensing Systems PT10LV10-103A2020-S	150 mW	300 ppm/°C	1	PC Pins	10.3 mm	Round	0.406 "	10000 Ohms	Through Hole	20 %	Carbon	Top Adjustment
