SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Travel	Actuator Material	Mechanical Life	Switch Function	Ingress Protection	Circuit	Features	Actuator Orientation	Outline [x]	Outline [y]	Illumination	Contact Rating @ Voltage	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Mounting Type	Termination Style	Operating Force

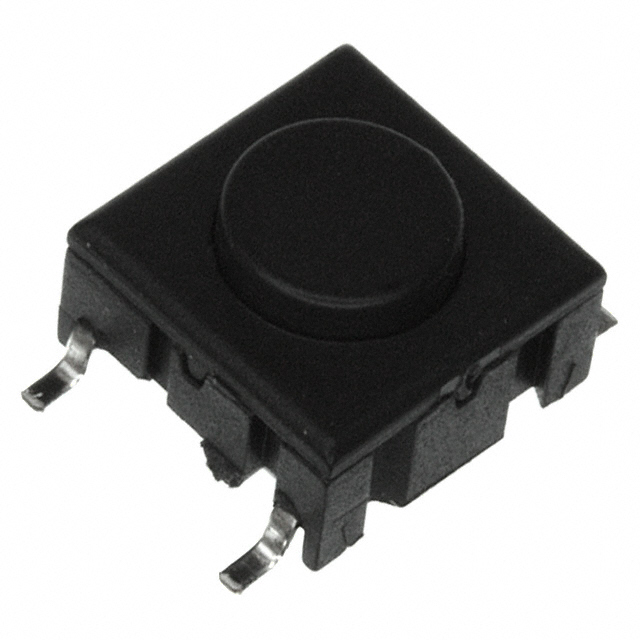

MEC Switches 3CSH9	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Standard	160 °C	-40 C	6.4 mm	Surface Mount	Gull Wing	300 gf

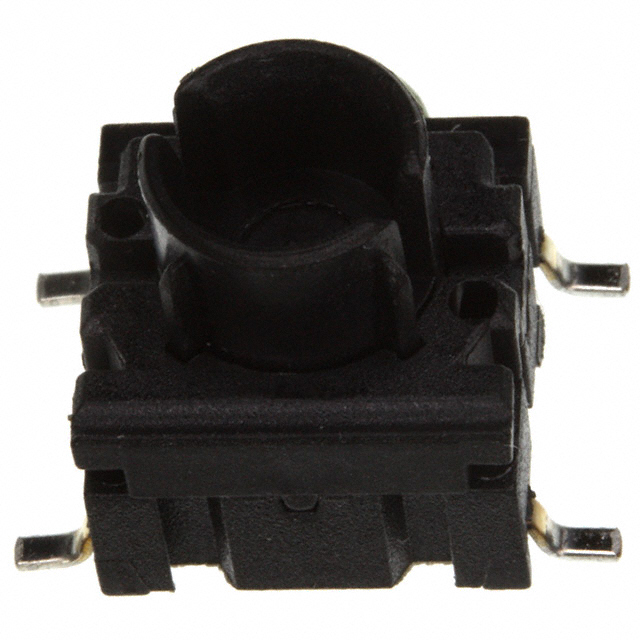

MEC Switches 3FSH9	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Plunger for Cap	160 °C	-40 C	10.4 mm	Surface Mount	Gull Wing	300 gf

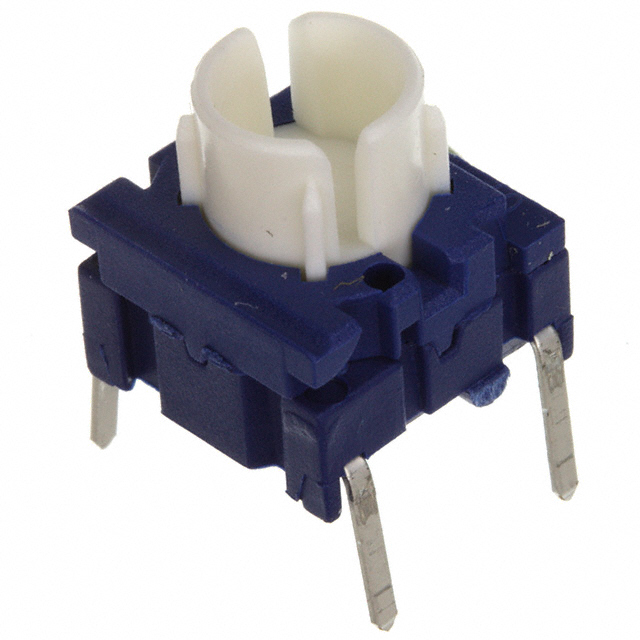

MEC Switches 3FTL6	1 mm	Polybutylene Terephthalate (PBT)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Plunger for Cap	115 °C	-40 C	10.4 mm	Through Hole	PC Pin	300 gf

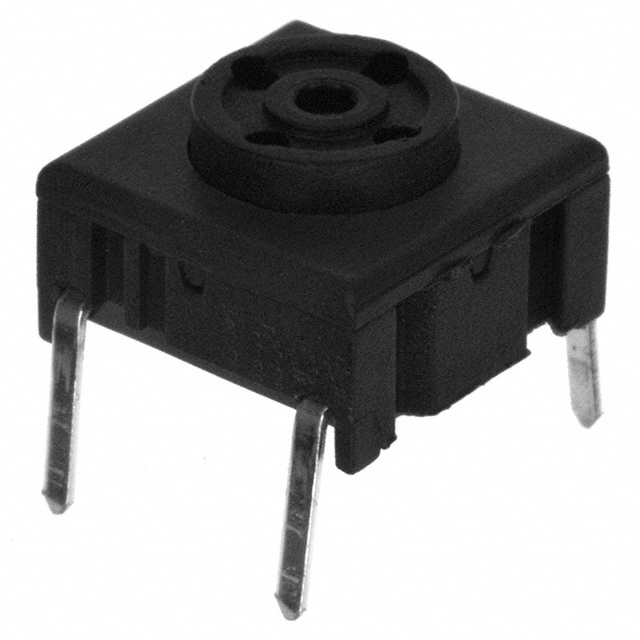

MEC Switches 3ETL9	1 mm	Polybutylene Terephthalate (PBT)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Plunger for Cap	115 °C	-40 C		Through Hole	PC Pin	300 gf

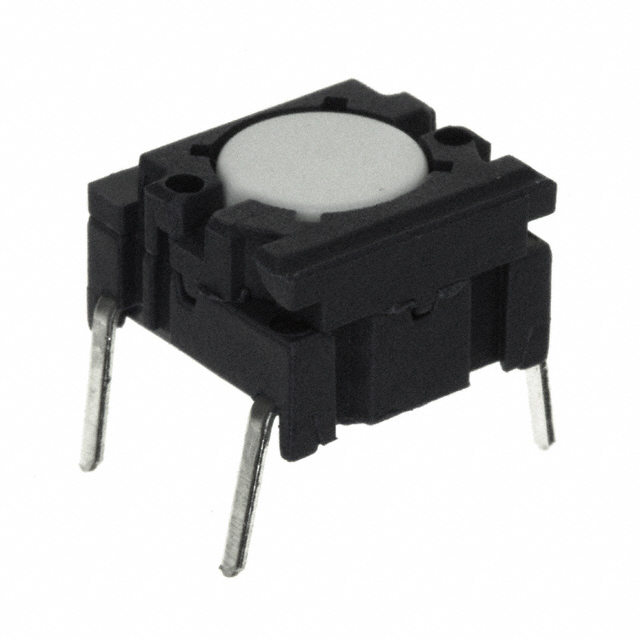

MEC Switches 3ATL6	1 mm	Polybutylene Terephthalate (PBT)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Plunger for Cap	115 °C	-40 C	6.4 mm	Through Hole	PC Pin	300 gf
MEC Switches 3ETH9	1 mm	Polybutylene Terephthalate (PBT)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Plunger for Cap	160 °C	-40 C		Through Hole	PC Pin	300 gf

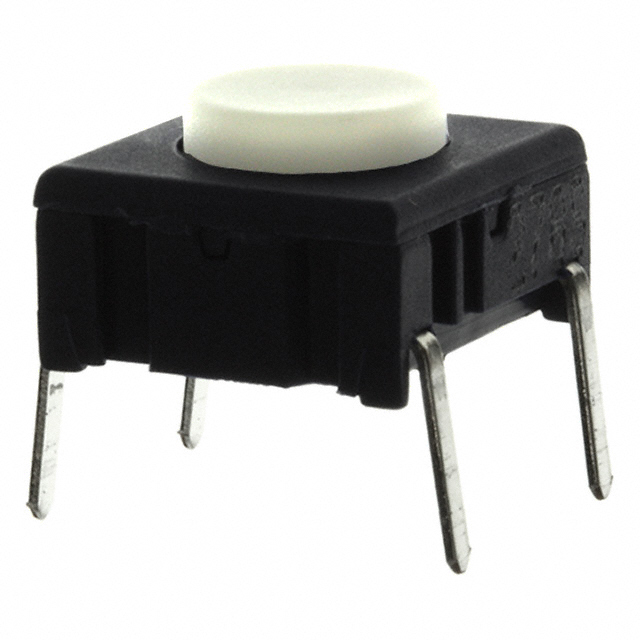

MEC Switches 3CTL6	1 mm	Polybutylene Terephthalate (PBT)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Standard	115 °C	-40 C	6.4 mm	Through Hole	PC Pin	300 gf

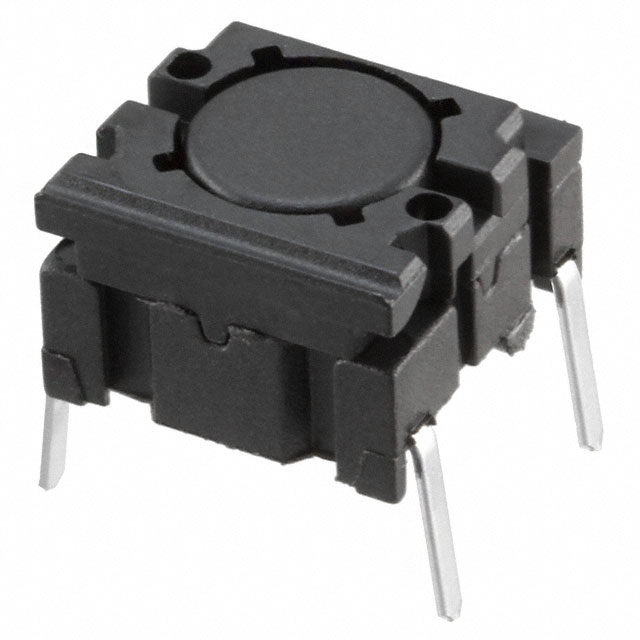

MEC Switches 3ATH9	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Plunger for Cap	160 °C	-40 C	6.4 mm	Through Hole	PC Pin	300 gf

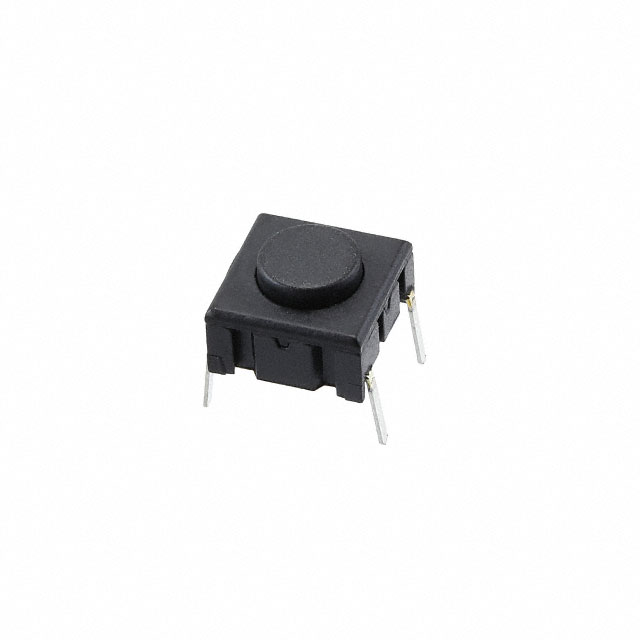

MEC Switches 3CTH9	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Standard	160 °C	-40 C	6.4 mm	Through Hole	PC Pin	300 gf

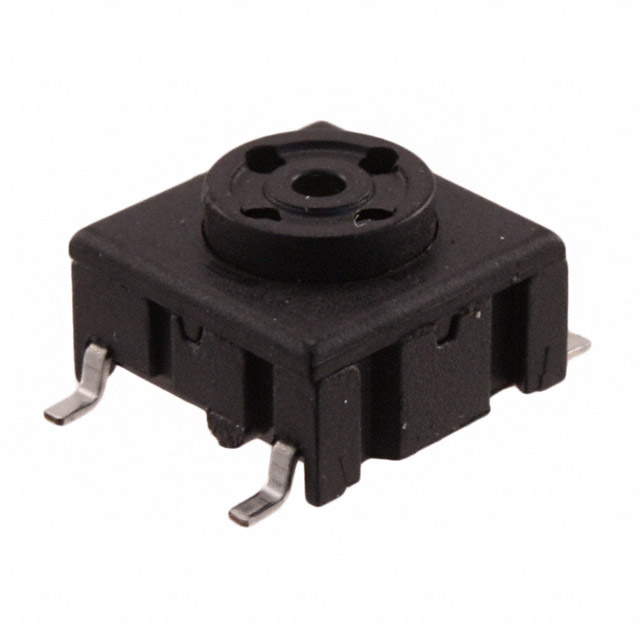

MEC Switches 3ESH9	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Off-Mom	IP67 - Dust Tight Waterproof	SPST-NO	Sealed - Flux Protection	Top Actuated	10.1 mm	10.1 mm	Non-Illuminated	0.05 A 24 VDC	Plunger for Cap	160 °C	-40 C		Surface Mount	Gull Wing	300 gf
