VB20 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
CONN BNC PLUG STR 50OHM SOLDER
| Part | Mating Cycles | Body Finish | Dielectric Material | Body Material | Includes | Center Contact Plating | Insertion Loss | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Shield Termination | Connector Style | Center Contact Material | Mounting Feature | Number of Ports | Mounting Type | Contact Termination | Connector Type | Impedance | Fastening Type | Housing Color | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | 500 | Nickel | Polyoxymethylene (POM) | Brass | 1 Connector 1 Nut 1 Solder Tag 1 Washer | Gold | 0.2 dB | 500 V | -55 C | 85 °C | 4 GHz | Solder Tag | BNC | Brass | Bulkhead - Rear Side Nut | 1 | Panel Mount | Solder Cup | Plug Male Pin | 50 Ohms | Bayonet Lock | Silver | ||

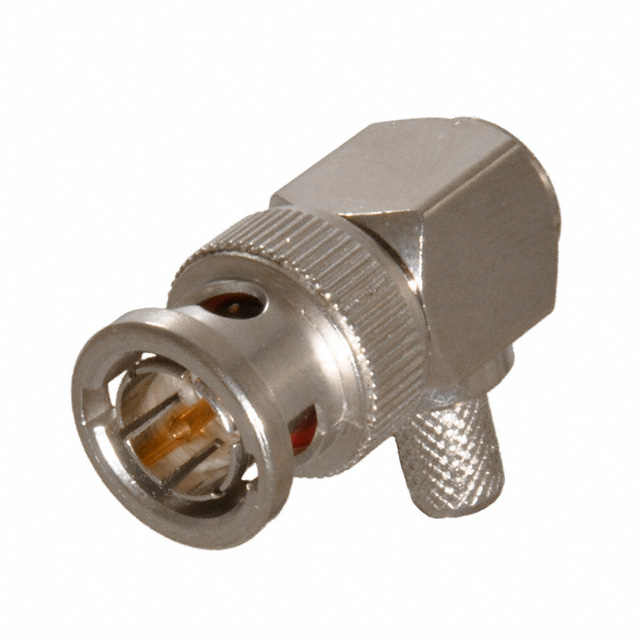

 Cinch Connectivity Solutions | 500 | Nickel | Polyoxymethylene (POM) | Zinc | 1 Connector 1 Ferrule | Gold | 0.2 dB | 500 V | -55 C | 85 °C | 4 GHz | Crimp | BNC | Brass | 1 | Free Hanging (In-Line) Right Angle | Solder | Plug Male Pin | 50 Ohms | Bayonet Lock | Silver | RG-59 | ||
Cinch Connectivity Solutions | 500 | Nickel | Polytetrafluoroethylene (PTFE) | Brass | 1 Connector 1 Contact 1 Ferrule | Gold | 0.2 dB | -65 ░C | 165 °C | 4 GHz | Crimp | BNC | Brass | 1 | Free Hanging (In-Line) Right Angle | Crimp | Plug Male Pin | 50 Ohms | Bayonet Lock | Silver | RG-59 | 62 |
