PM324FBA Series
Manufacturer: Anderson Power Products, Inc.
Beta
⌘K

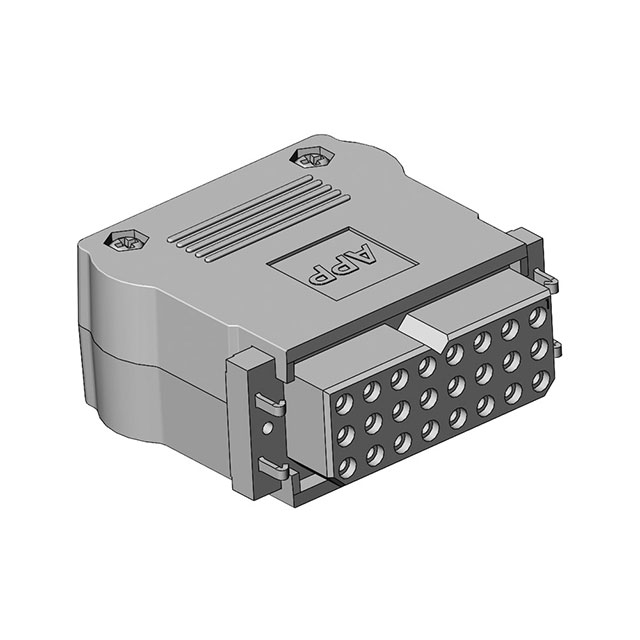

POWERMOD 3X24 FEMALE STRAIGHT PC
| Part | Insulation Material | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Material Flammability Rating | Insulation Color | Contact Finish - Mating | Style | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Insulation Height [custom] | Insulation Height [custom] | Features | Connector Type | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows [custom] | Number of Positions Loaded | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Anderson Power Products, Inc. | Polyphenylene Sulfide (PPS) | Beryllium Copper | 200 µin | 5.08 µm | Circular | 24 | 180 °C | -55 C | Female Socket Power | UL94 V-0 | Black | Gold | Board to Board Cable | 0.197 in | 5 mm | 600 V | 15.24 mm | 0.6 in | Mating Flange | Receptacle | Push-Pull | 3.81 mm | 0.15 in | Through Hole | Tin | 0.197 " | 5 mm | Solder | 0.076 µm | 3 µin | 3 | All | 30 A |
