MF-R005 Series

Catalog

PTC RESET FUSE 60V 50MA RADIAL

Part	Approval Agency	Voltage - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Time to Trip	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Lead Spacing	Lead Spacing	Mounting Type	Type	Current - Hold (Ih) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Trip (It)	Package / Case
Bourns Inc. MF-R005-AP-99	cURus TUV	60 V	22 Ohms	5 s	3.1 mm	0.315 in	8 mm	0.122 "	0.201 in	5.1 mm	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	8.3 mm	0.327 in	85 °C	-40 C	100 mA	Disc Radial
Bourns Inc. MF-R005-AP	cURus TUV	60 V	22 Ohms	5 s	3.1 mm	0.315 in	8 mm	0.122 "	0.201 in	5.1 mm	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	8.3 mm	0.327 in	85 °C	-40 C	100 mA	Disc Radial
Bourns Inc. MF-R005-2	cURus TUV	60 V	22 Ohms	5 s	3.1 mm	0.315 in	8 mm	0.122 "	0.201 in	5.1 mm	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	8.3 mm	0.327 in	85 °C	-40 C	100 mA	Disc Radial
Bourns Inc. MF-R005-2-99	cURus TUV	60 V	22 Ohms	5 s	3.1 mm	0.315 in	8 mm	0.122 "	0.201 in	5.1 mm	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	8.3 mm	0.327 in	85 °C	-40 C	100 mA	Disc Radial

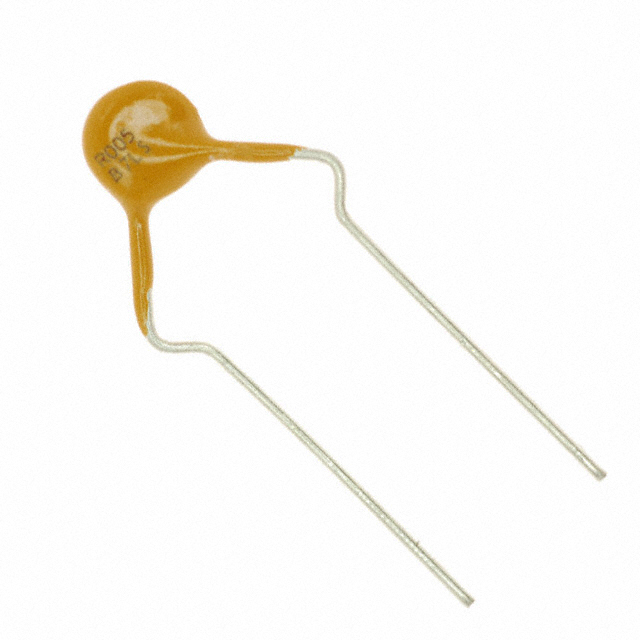

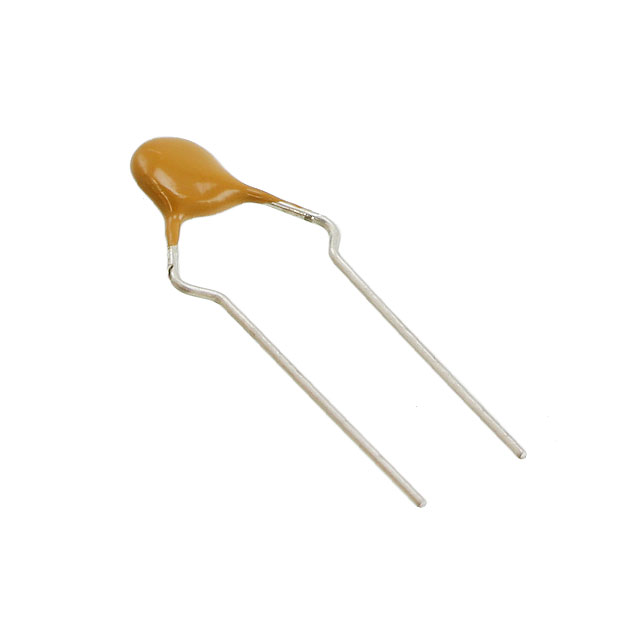

Bourns Inc. MF-R005-0-99	cURus TUV	60 V	22 Ohms	5 s	3.1 mm	0.315 in	8 mm	0.122 "	0.201 in	5.1 mm	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	8.3 mm	0.327 in	85 °C	-40 C	100 mA	Disc Radial
