5304 Series
Manufacturer: Pomona Electronics
Beta
⌘K

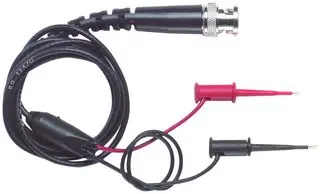

TEST LEAD, BNC PLUG-HOOK CLIP X2/609.6MM ROHS COMPLIANT: YES
| Part | Voltage - Rated | Cable Length | Cable Length | Cable Type | Configuration | Current Rating (Amps) | Material - Insulation | 2nd Connector | Color | Wire Gauge | 1st Connector | Temperature Range | Temperature Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pomona Electronics | 150VAC DC | 24 in | 609.6 mm | RG-174/U | BNC to Grabber Hook | 5 A | Poly-Vinyl Chloride (PVC) | SMD Pincer (2) | Black Cable Black and Red Leads | 22 AWG | BNC Male Plug | 122 °F | 50 °C |
 Pomona Electronics | 150VAC DC | 36 in | 914.4 mm | RG-174/U | BNC to Grabber Hook | 5 A | Poly-Vinyl Chloride (PVC) | SMD Pincer (2) | Black Cable Black and Red Leads | 22 AWG | BNC Male Plug | 122 °F | 50 °C |
