R5F51114 Series

Manufacturer: Renesas Electronics Corporation

Catalog

IC MCU 32BIT 96KB FLASH 64LQFP

Part	Core Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Program Memory Type	Core Processor	RAM Size	Oscillator Type	Peripherals	Supplier Device Package	Speed	Mounting Type	Program Memory Size	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	EEPROM Size	Connectivity	Data Converters	Number of I/O [custom]	Number of I/O
Renesas Electronics Corporation R5F51114ADFK#1A	32-Bit 32-Bit Single-Core	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-LQFP (14x14)	32 MHz	Surface Mount	96 KB	64-LQFP	85 C	-40 ¯C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114ADFM#1A	32-Bit 32-Bit Single-Core	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-LFQFP (10x10)	32 MHz	Surface Mount	96 KB	64-LQFP	85 C	-40 ¯C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114ADFK#5A	32-Bit 32-Bit Single-Core	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-LQFP (14x14)	32 MHz	Surface Mount	96 KB	64-LQFP	85 C	-40 ¯C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114AGFM#5A	32-Bit	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-LFQFP (10x10)	32 MHz	Surface Mount	96 KB	64-LQFP	105 °C	-40 °C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114ADFM#5A	32-Bit 32-Bit Single-Core	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-LFQFP (10x10)	32 MHz	Surface Mount	96 KB	64-LQFP	85 C	-40 ¯C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114AGFM#1A	32-Bit	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-LFQFP (10x10)	32 MHz	Surface Mount	96 KB	64-LQFP	105 °C	-40 °C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114ADFL#1A	32-Bit 32-Bit Single-Core	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	48-LQFP (7x7)	32 MHz	Surface Mount	96 KB	48-LQFP	85 C	-40 ¯C	8 8 K	I2C SCI SPI USB			30

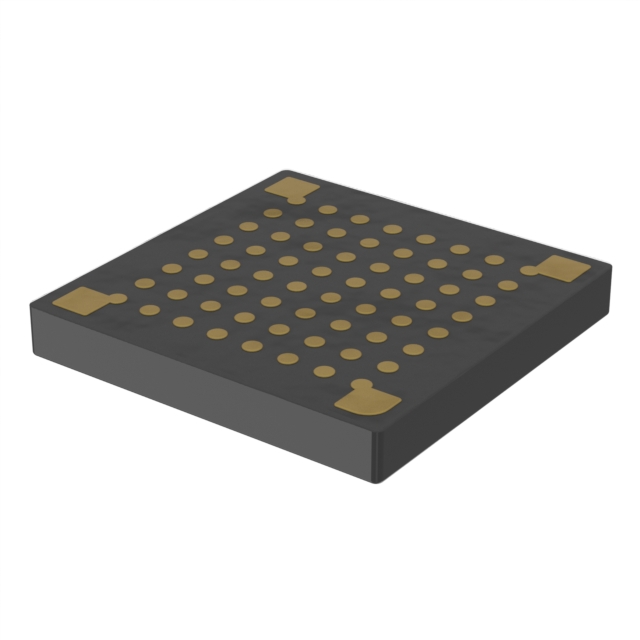

Renesas Electronics Corporation R5F51114ADLF#GA	32-Bit	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-FLGA (5x5)	32 MHz	Surface Mount	96 KB	64-WFLGA	85 C	-40 ¯C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114AGFK#5A	32-Bit	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	64-LQFP (14x14)	32 MHz	Surface Mount	96 KB	64-LQFP	105 °C	-40 °C	8 8 K	I2C SCI SPI USB OTG	A/D 14x12b D/A 2x8b	46
Renesas Electronics Corporation R5F51114AGNE#4A	32-Bit	3.6 V	1.8 V	FLASH	RX	16 K	Internal	DMA LVD POR PWM WDT	48-HWQFN (7x7)	32 MHz	Surface Mount	96 KB	48-WFQFN Exposed Pad	105 °C	-40 °C	8 8 K	I2C SCI SPI USB			30
