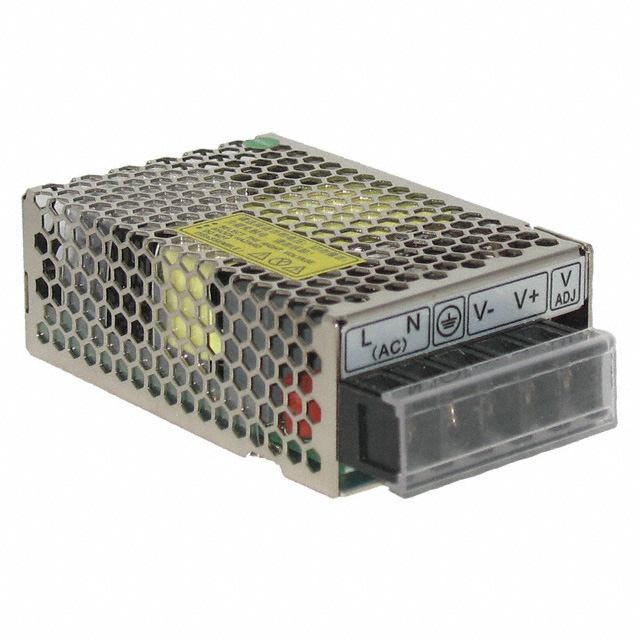

QPD-25 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 12V 25W
| Part | Minimum Load Required | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Features | Approval Agency | Voltage - Isolation | Mounting Type | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Type | Applications | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 1 | 88 VAC 127 VDC | 264 VAC 370 VDC | 25 W | 28 mm | 3.11 " | 51 mm | 2.01 " | 1.1 in | 79 mm | Adjustable Output DC Input Capable Universal Input | CE cURus | 3000 V | Chassis Mount | 12 V | 70 °C | -25 °C | 2.1 A | Enclosed | ITE (Commercial) | ||
 Qualtek | 1 | 88 VAC 127 VDC | 264 VAC 370 VDC | 25 W | 28 mm | 3.11 " | 51 mm | 2.01 " | 1.1 in | 79 mm | Adjustable Output DC Input Capable Universal Input | CE cURus | 3000 V | Chassis Mount | 24 V | 70 °C | -25 °C | 1.1 A | Enclosed | ITE (Commercial) | 84 % | |

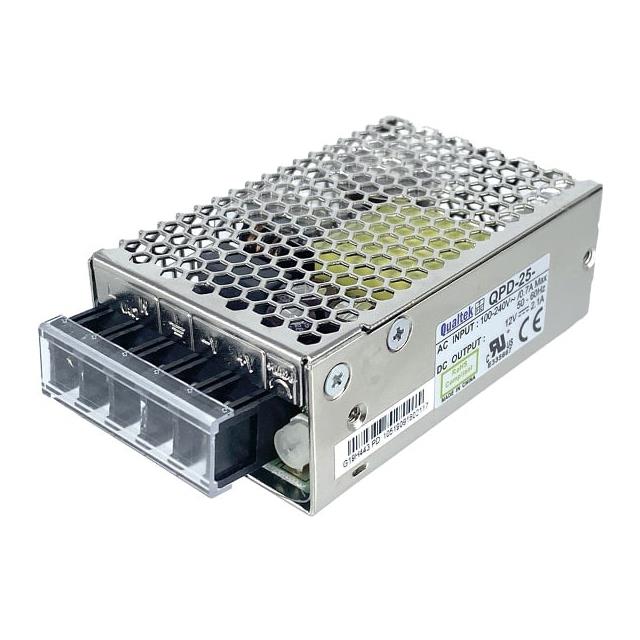

 Qualtek | 1 | 88 VAC 127 VDC | 264 VAC 370 VDC | 25 W | 28 mm | 3.11 " | 51 mm | 2.01 " | 1.1 in | 79 mm | Adjustable Output DC Input Capable Universal Input | CE cURus | 3000 V | Chassis Mount | 15 V | 70 °C | -25 °C | 1.6 A | Enclosed | ITE (Commercial) | 83 % |
