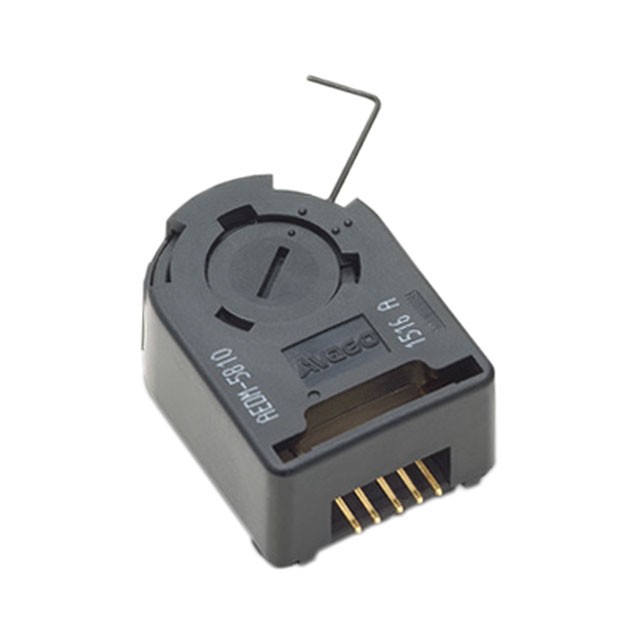

AEDM-5810 Series

Catalog

ROTARY ENCODER OPTICAL 2000PPR

Part	Pulses per Revolution	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Encoder Type	Actuator Type	Output Type	Termination Style	Orientation
Broadcom Limited AEDM-5810-T12	2000	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Terminal Pins	Right Angle
Broadcom Limited AEDM-5810-Z13	5000	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Cable	Right Angle
Broadcom Limited AEDM-5810-W13	2500	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Cable	Right Angle
Broadcom Limited AEDM-5810-B06	1000	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Terminal Pins	Right Angle
Broadcom Limited AEDM-5810-W06	2500	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Cable	Right Angle
Broadcom Limited AEDM-5810-A12		Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Terminal Pins	Right Angle
Broadcom Limited AEDM-5810-T13	2000	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Cable	Right Angle
Broadcom Limited AEDM-5810-Z12	5000	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Terminal Pins	Right Angle
Broadcom Limited AEDM-5810-Z11	5000	Chassis Mount Motors	5.5 V	4.5 V	Optical	Hole for Shaft	Quadrature with Index (Incremental)	Cable	Right Angle
