R14360 Series

Catalog

TNC / THREAD-IN JACK RECEPTACLE

Part	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Mating Cycles	Body Material	Dielectric Material	Center Contact Plating	Center Contact Material	Contact Termination	Shield Termination	Frequency - Max [Max]	Connector Style	Connector Type	Mounting Type	Housing Color	Fastening Type	Impedance	Number of Ports	Mounting Feature	Features

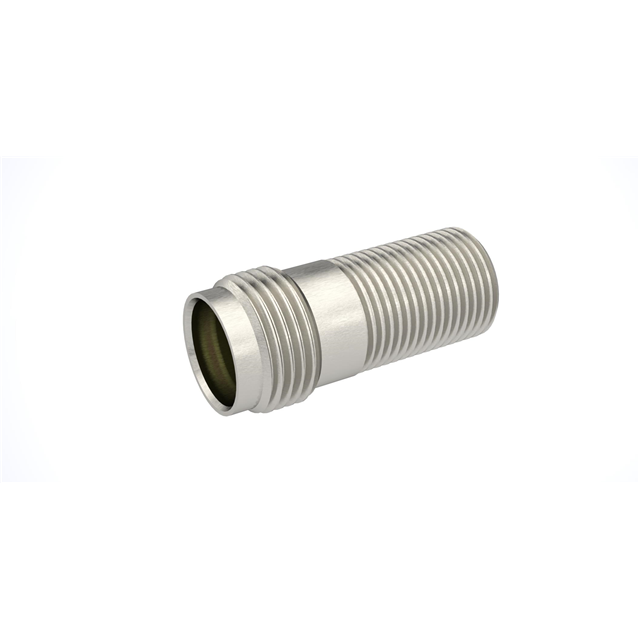

Radiall USA, Inc. R143608000	500 V	Gold	-65 ░C	100 °C	0.18 dB	500	Nickel	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper Nickel Steel	Solder	Solder	11 GHz	TNC	Female Socket Jack	Free Hanging (In-Line)	Gold	Threaded	50 Ohms	1

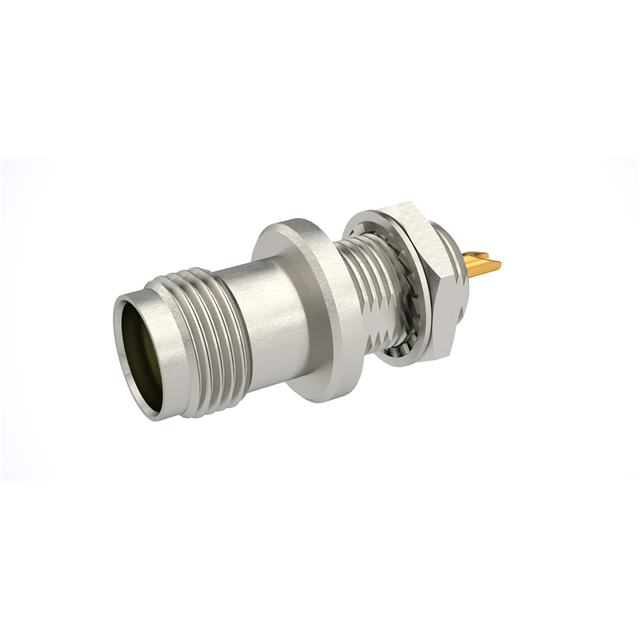

Radiall USA, Inc. R143603000	500 V	Nickel	-65 ░C	165 °C	0.18 dB	500	Brass	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	Solder Cup	Solder	11 GHz	TNC	Female Socket Jack	Panel Mount	Silver	Threaded	50 Ohms	1	Bulkhead - Rear Side Nut	Extended Insulation
Radiall USA, Inc. R143603000W	500 V	Nickel	-65 ░C	165 °C	0.18 dB	500	Brass	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	Solder Cup	Solder	11 GHz	TNC	Female Socket Jack	Panel Mount	Silver	Threaded	50 Ohms	1	Bulkhead - Rear Side Nut	Extended Insulation
