681M5W5 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DB-5W5, PLUG, 5 CONTACTS, 5 POWER
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish | Contact Finish Thickness | Number of Rows | Material Flammability Rating | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Connector Style | Termination | Features | Flange Feature | Current Rating (Amps) | Contact Type | Number of Positions | Shell Material, Finish | Connector Type | Mounting Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

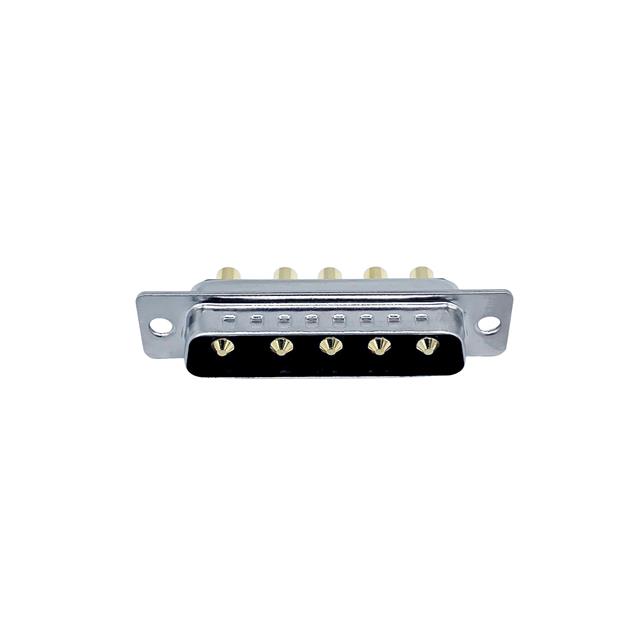

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Copper Alloy | -55 C | 125 °C | Black | Gold | Flash | 1 | UL94 V-0 | 3 | DB B | 5W5 | Combo D-Sub | Solder | Board Lock Grounding Indents | Board Side (4-40) | 40 A | Power | 5 | Nickel Plated Steel | Plug Male Pins | Panel Mount Through Hole | |
NorComp Inc. | Polybutylene Terephthalate (PBT) | Copper Alloy | -55 C | 125 °C | Black | Gold | Flash | 1 | UL94 V-0 | 3 | DB B | 5W5 | Combo D-Sub | Solder | Board Lock Grounding Indents | Board Side (4-40) | 40 A | Power | 5 | Nickel Plated Steel | Plug Male Pins | Panel Mount Through Hole | |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Copper Alloy | -55 C | 125 °C | Black | Gold | Flash | 1 | UL94 V-0 | 3 | DB B | 5W5 | Combo D-Sub | Solder | Board Lock Grounding Indents | Board Side (4-40) | 40 A | Power | 5 | Nickel Plated Steel | Plug Male Pins | Panel Mount Through Hole | 250 V |

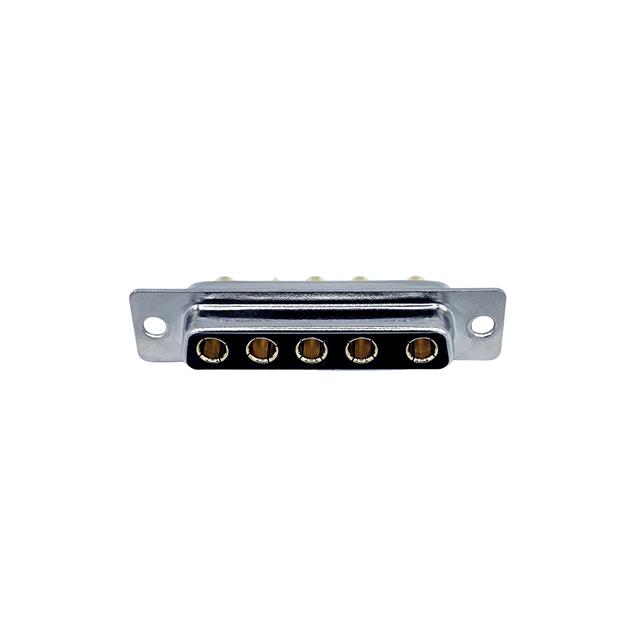

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Copper Alloy | -55 C | 125 °C | Black | Gold | Flash | 1 | UL94 V-0 | 3 | DB B | 5W5 | Combo D-Sub | Solder | Board Lock | Board Side (4-40) | 40 A | Power | 5 | Nickel Plated Steel | Receptacle Female Sockets | Panel Mount Through Hole | 250 V |
