2007828 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

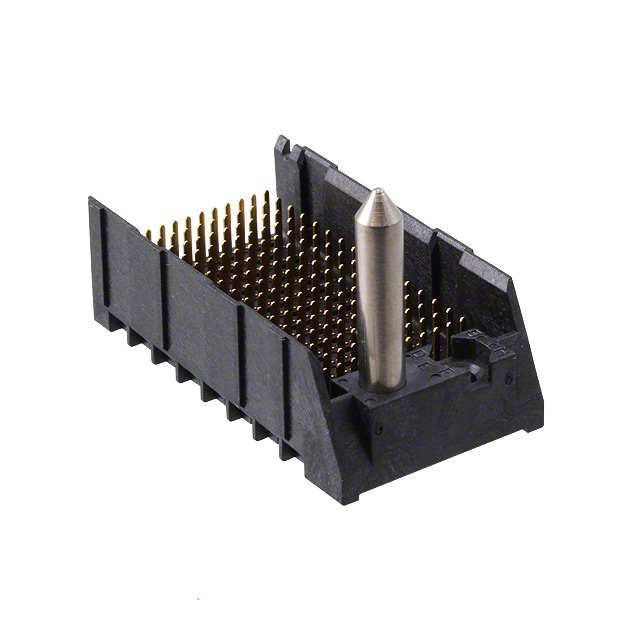

CONN HEADER IMPACT 192POS PCB
| Part | Number of Columns | Number of Positions | Connector Type | Number of Rows | Number of Positions Loaded | Mounting Type | Pitch [x] | Pitch [x] | Termination | Material Flammability Rating | Color | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Features | Voltage Rating | Current Rating (Amps) | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 16 | 192 | Header Male Pins | 12 | All | Through Hole | 0.075 in | 1.91 mm | Press-Fit | UL94 V-0 | Black | Gold | 85 °C | -55 °C | 0.76 Ám | 30 Áin | ||||||
TE Connectivity Raychem Cable Protection | 16 | 192 | Header Male Pins | 12 | All | Through Hole | 0.075 in | 1.9 mm | Press-Fit | UL94 V-0 | Black | Gold | 85 °C | -40 °C | 0.76 Ám | 30 Áin | 128 | 64 | Board Guide | 50 VAC | 1.1 A | Backplane |
