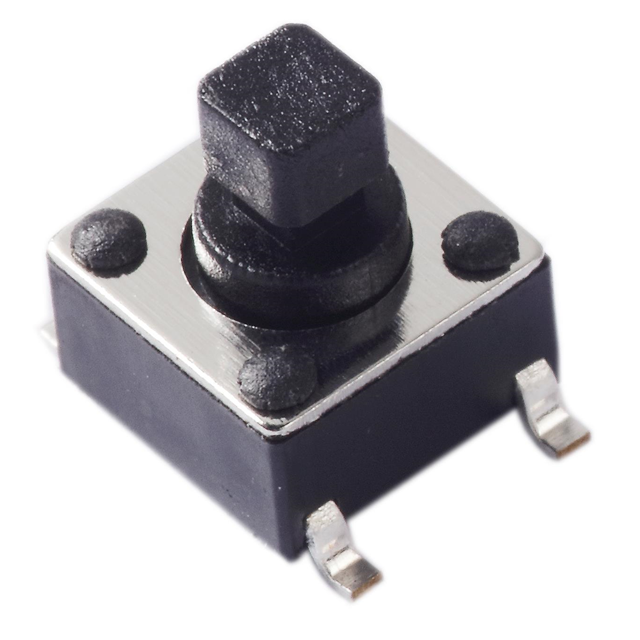

222VMV Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Contact Rating @ Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Switch Function | Mounting Type | Actuator Type | Actuator Height off PCB, Vertical [z] | Circuit | Termination Style | Outline [x] | Outline [y] | Illumination | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 80000 Cycles | 0.25 mm | 0.05 A 12 VDC | 85 °C | -40 C | 160 gf | Off-Mom | Surface Mount | Plunger for Cap | 7.3 mm | SPST-NO | Gull Wing | 6 mm | 6 mm | Non-Illuminated | Top Actuated |
