80037 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

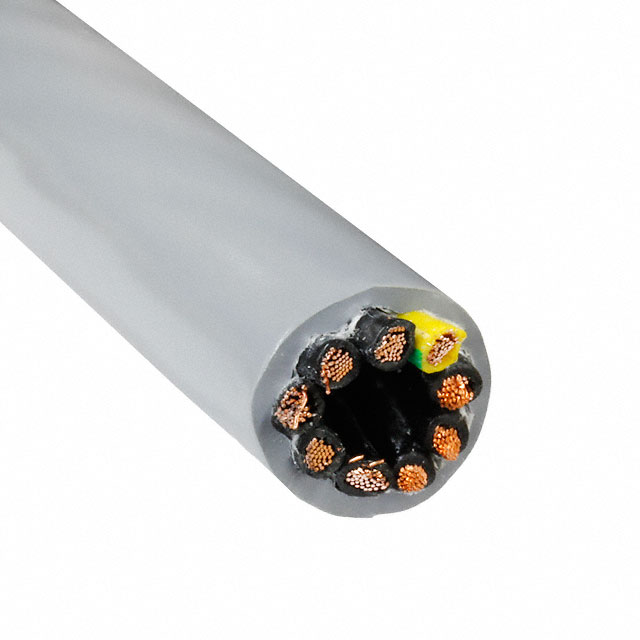

MULTICONDUCTOR CABLE, ECOFLEX® PUR, UNSHIELDED, 9 CONDUCTOR, 18 AWG, 0.825 MM², 100 FT, 30.5 M
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Length [x] | Length [x] | Number of Conductors | Voltage | Wire Gauge | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 °C | -50 °C | Polyurethane (PU) | 8.08 mm | 0.318 in | Copper Tinned | 30.5 m | 100 ft | 9 | 600 V | 18 AWG | Slate | 0.0319 in | 0.81 mm | 41 strands | 34 AWG | Polyphenylene Ether (PPE) | Multi-Conductor |
