MF-R160 Series
Manufacturer: Bourns Inc.
Beta
⌘K

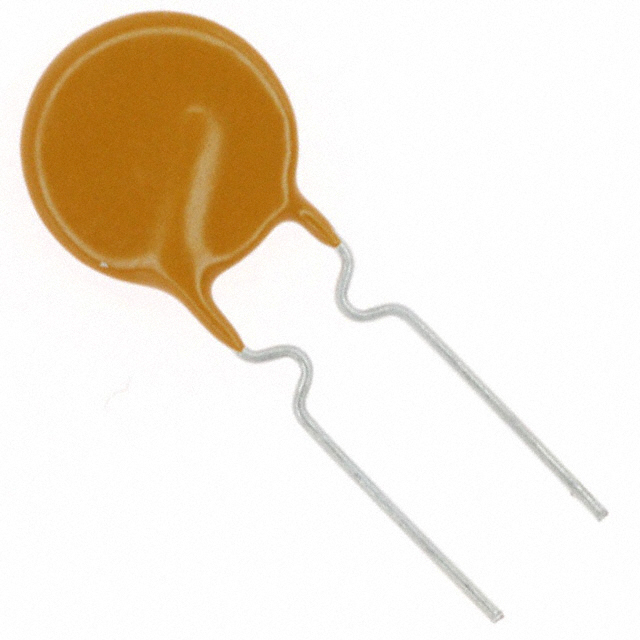

PTC RESET FUSE 30V 1.6A RADIAL
| Part | Approval Agency | Resistance - Initial (Ri) (Min) [Min] | Package / Case | Type | Time to Trip | Voltage - Max [Max] | Current - Hold (Ih) (Max) | Mounting Type | Current - Trip (It) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [custom] | Size / Dimension [custom] | Resistance - Post Trip (R1) (Max) [Max] | Current - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Lead Spacing | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | cURus TUV | 55 mOhms | Disc Radial | Polymeric | 8 s | 30 V | 1.6 A | Through Hole | 3.2 A | 0.661 " | 16.8 mm | 0.402 in | 10.2 mm | 3 mm | 0.118 " | 150 mOhms | 40 A | 85 °C | -40 C | 0.201 in | 5.1 mm |
