RP325 Series
Manufacturer: Astrodyne TDI
Beta
⌘K

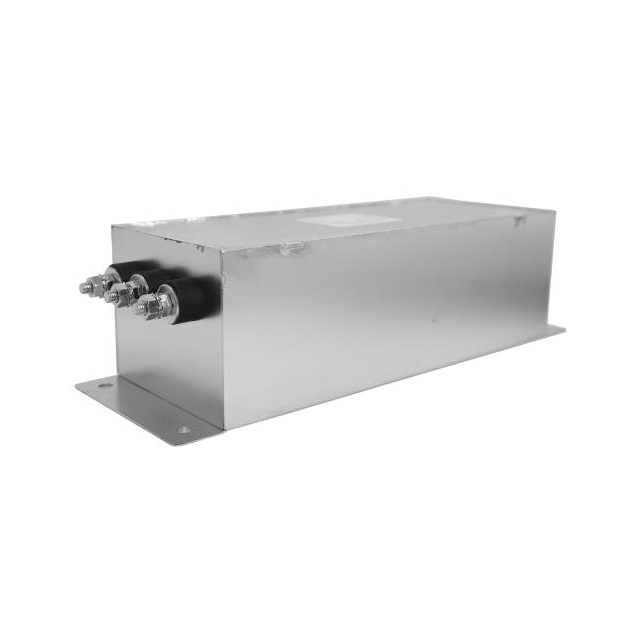

LINE FILTER 480VAC 30A CHASSIS
| Part | Voltage - Rated AC (Phase to Ground/Neutral) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Frequency - Operating [Max] | Frequency - Operating [Min] | Voltage - Rated AC | Termination Style | Current | Configuration | Applications | Filter Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Threaded Post (M5) | 30 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Threaded Post (M12) | 300 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Terminal Block | 30 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Wire Leads | 200 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Terminal Block | 150 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Wire Leads | 150 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Terminal Block | 50 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Threaded Post (M5) | 50 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Threaded Post (M12) | 300 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
Astrodyne TDI | 3.5 kV | 100 °C | -25 °C | Chassis Mount | 60 Hz | 50 Hz | 480 V | Wire Leads | 200 A | Two Stage | General Purpose | Three Phase (Delta) | CE CSA cURus ENEC SEMKO |
