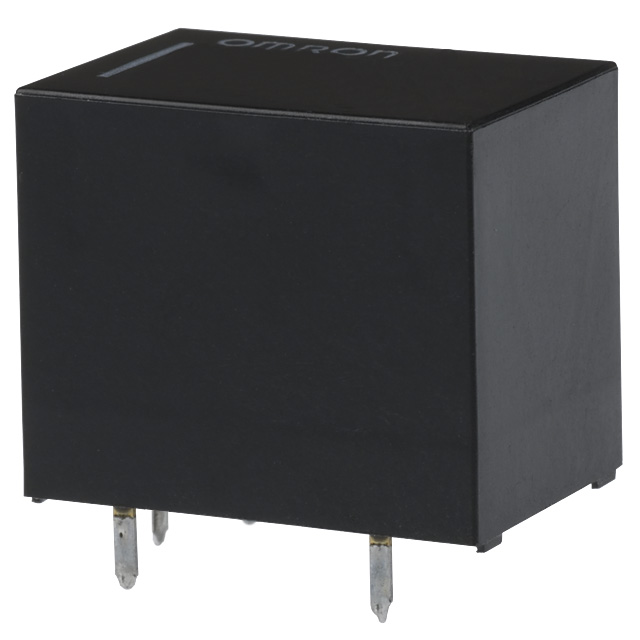

G5LE-1-3 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 5V
| Part | Relay Type | Seal Rating | Must Operate Voltage | Coil Voltage | Termination Style | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Operate Time | Must Release Voltage | Approval Agency | Contact Material | Coil Type | Contact Form | Switching Voltage | Mounting Type | Coil Insulation | Coil Current | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | General Purpose | Sealed - Flux Protection | 3.75 VDC | 5 VDC | PC Pin | 70 Ohms | -25 °C | 85 °C | 10 A | 10 ms | 0.5 VDC | CSA TUV UR VDE | Silver Tin Oxide (AgSnO) | Non Latching | SPDT (1 Form C) | 125 VDC 250 VAC | Through Hole | Class B | 72 mA | 5 ms |
