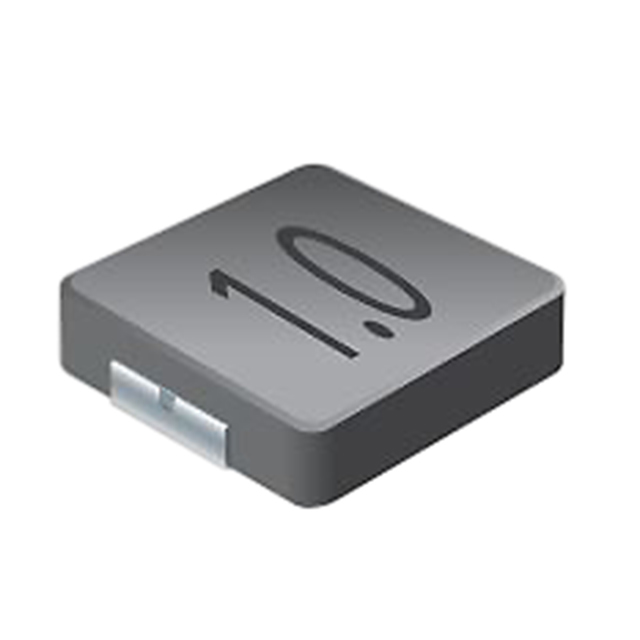

SRP3012TA Series

Catalog

IND,3.5X3.2X1MM,1UH,20%,3.3A,SHD,SMD /TAPE & REEL - 13" REEL

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Package / Case	Material - Core	Current Rating (Amps)	Shielding	Inductance	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Mounting Type	Current - Saturation (Isat)	DC Resistance (DCR) [Max]
Bourns Inc. SRP3012TA-1R0M	2-SMD	-40 C	150 °C	100 kHz	AEC-Q200	0.138 in	0.126 in	3.5 mm	3.2 mm	Drum Core Wirewound	2-SMD	Carbonyl Powder	3.3 A	Shielded	1 µH	65 MHz	1.2 mm	0.047 "	20 %	Surface Mount	5.5 A
Bourns Inc. SRP3012TA-3R3M	2-SMD	-40 C	150 °C	100 kHz	AEC-Q200	0.138 in	0.126 in	3.5 mm	3.2 mm	Drum Core Wirewound	2-SMD	Carbonyl Powder	2 A	Shielded	3.3 µH	40 MHz	1.2 mm	0.047 "	20 %	Surface Mount	3.1 A	210 mOhm
Bourns Inc. SRP3012TA-R47M	2-SMD	-40 C	150 °C	100 kHz	AEC-Q200	0.138 in	0.126 in	3.5 mm	3.2 mm	Drum Core Wirewound	2-SMD	Carbonyl Powder	5 A	Shielded	470 nH	107 MHz	1.2 mm	0.047 "	20 %	Surface Mount	7.2 A	30 mOhm
Bourns Inc. SRP3012TA-6R8M	2-SMD	-40 C	150 °C	100 kHz	AEC-Q200	0.138 in	0.126 in	3.5 mm	3.2 mm	Drum Core Wirewound	2-SMD	Carbonyl Powder	1.4 A	Shielded	6.8 µH	29 MHz	1.2 mm	0.047 "	20 %	Surface Mount	2 A	400 mOhm
Bourns Inc. SRP3012TA-R33M	2-SMD	-40 C	150 °C	100 kHz	AEC-Q200	0.138 in	0.126 in	3.5 mm	3.2 mm	Drum Core Wirewound	2-SMD	Carbonyl Powder	6.2 Amps	Shielded	330 nH	150 MHz	1.2 mm	0.047 "	20 %	Surface Mount	9.2 A	20 mOhm
Bourns Inc. SRP3012TA-4R7M	2-SMD	-40 C	150 °C	100 kHz	AEC-Q200	0.138 in	0.126 in	3.5 mm	3.2 mm	Drum Core Wirewound	2-SMD	Carbonyl Powder	1.6 A	Shielded	4.7 ÁH	35 MHz	1.2 mm	0.047 "	20 %	Surface Mount	2.8 A	293 mOhm
