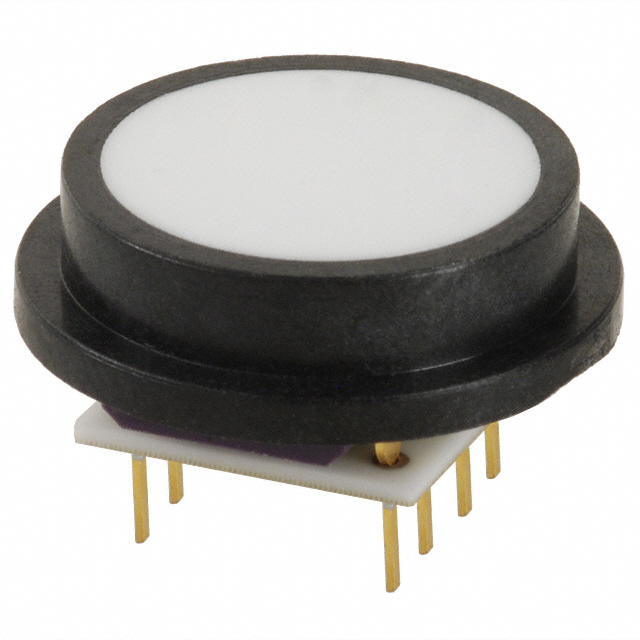

1865-07 Series

Catalog

SENSOR 30PSIG 7.5V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Applications	Mounting Type	Pressure Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Output Type	Features	Package / Case	Accuracy	Voltage - Supply
Honeywell Sensing and Productivity Solutions 1865-07G-KDN	54 °C	-18.4 °F	0 mV	7.5 V	Board Mount	Through Hole	Vented Gauge	No Port	60 PSI	413.69 kPa	206.84 kPa	30 PSI	Wheatstone Bridge	Temperature Compensated	8-DIP Module	0.25 %	15 V
Honeywell Sensing and Productivity Solutions 1865-07G-LDN	54 °C	-18.4 °F	0 mV	40 mV	Board Mount	Through Hole	Vented Gauge	No Port	60 PSI	413.69 kPa	206.84 kPa	30 PSI	Wheatstone Bridge	Temperature Compensated	8-DIP Module	0.25 %
