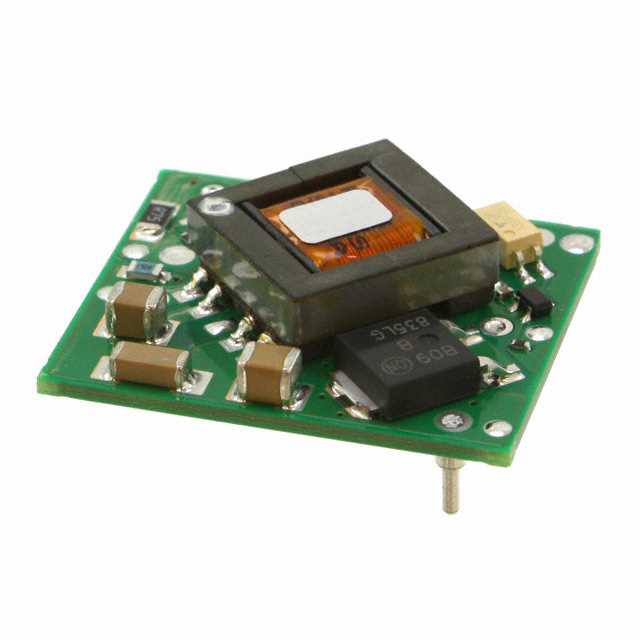

PTMA402050 Series

10W, 36V to 75V Input, 1500V Isolation, DC-DC Converter

Catalog

10W, 36V to 75V Input, 1500V Isolation, DC-DC Converter

Part	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Voltage - Output 1	Mounting Type	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Features
Texas Instruments PTMA402050A1AD	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.34 in	8.6 mm	24.4 mm	4-DIP Module	5 V	Through Hole	ITE (Commercial)	75 V	1.5 kV	2 A
Texas Instruments PTMA402050A3AD	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.34 in	8.6 mm	24.4 mm	6-DIP Module	5 V	Through Hole	ITE (Commercial)	75 V	1.5 kV	2 A	UVLO
Texas Instruments PTMA402050N2AS	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.36 in	9.1 mm	24.4 mm	6-SMD Module	5 V	Surface Mount	ITE (Commercial)	75 V	1.5 kV	2 A	OCP OVP Remote On/Off UVLO
Texas Instruments PTMA402050A1AZ	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.36 in	9.1 mm	24.4 mm	6-SMD Module	5 V	Surface Mount	ITE (Commercial)	75 V	1.5 kV	2 A	OCP OVP UVLO
Texas Instruments PTMA402050A2AD	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.34 in	8.6 mm	24.4 mm	5-DIP Module	5 V	Through Hole	ITE (Commercial)	75 V	1.5 kV	2 A
Texas Instruments PTMA402050N2AZ	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.36 in	9.1 mm	24.4 mm	6-SMD Module	5 V	Surface Mount	ITE (Commercial)	75 V	1.5 kV	2 A	OCP OVP Remote On/Off UVLO

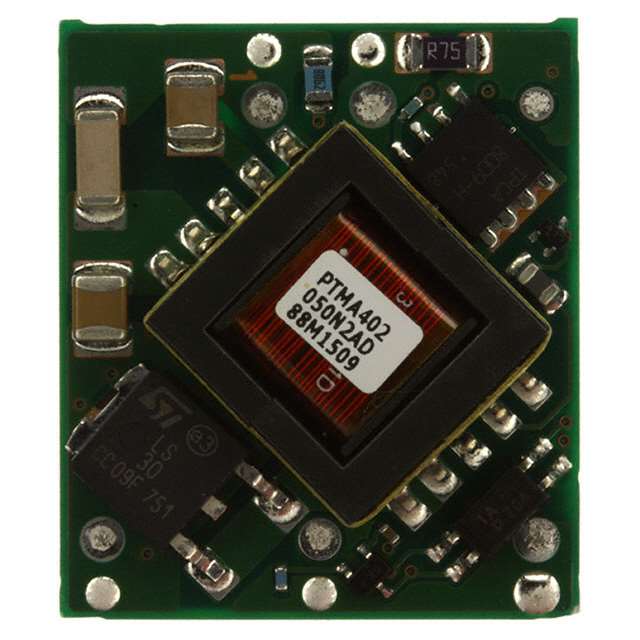

Texas Instruments PTMA402050N2AD	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.34 in	8.6 mm	24.4 mm	6-DIP Module	5 V	Through Hole	ITE (Commercial)	75 V	1.5 kV	2 A	UVLO
Texas Instruments PTMA402050N2AZT	10 W	85 %	36 V	Isolated Module	85 °C	-40 °C	1	27.9 mm	1.1 "	0.96 in	0.36 in	9.1 mm	24.4 mm	6-SMD Module	5 V	Surface Mount	ITE (Commercial)	75 V	1.5 kV	2 A	OCP OVP Remote On/Off UVLO

Catalog

10W, 36V to 75V Input, 1500V Isolation, DC-DC Converter

Key Features

• Input Voltage: 36 V to 75 V10-W Total Output PowerOutput Voltages: 3.3 V, 5 V, and 12 VOutput Voltage Trim ±10%Up To 87% EfficiencyOvercurrent ProtectionInput Undervoltage LockoutOutput Overvoltage ProtectionPositive or Negative Logic Enable Control OptionSynchronization OptionSpace-Saving, Industry Standard Footprint (1.1 in x 1.0 in) / (27.94 mm × 24.38 mm)Industry Standard PinoutSurface Mount Package1500-Vdc IsolationAgency Approvals: UL/IEC/CSA-C22.2 60950-1APPLICATIONSIntermediate Bus ArchitecturesTelecom, High-End Computing PlatformsPower Over Ethernet ApplicationsMulti-Rail Power SystemsInput Voltage: 36 V to 75 V10-W Total Output PowerOutput Voltages: 3.3 V, 5 V, and 12 VOutput Voltage Trim ±10%Up To 87% EfficiencyOvercurrent ProtectionInput Undervoltage LockoutOutput Overvoltage ProtectionPositive or Negative Logic Enable Control OptionSynchronization OptionSpace-Saving, Industry Standard Footprint (1.1 in x 1.0 in) / (27.94 mm × 24.38 mm)Industry Standard PinoutSurface Mount Package1500-Vdc IsolationAgency Approvals: UL/IEC/CSA-C22.2 60950-1APPLICATIONSIntermediate Bus ArchitecturesTelecom, High-End Computing PlatformsPower Over Ethernet ApplicationsMulti-Rail Power Systems

Description

The PTMA40XX is a series of 10-W rated isolated dc/dc converters, designed to operate from a standard -48-V telecom central office supply. Housed in an industry standard1.1 in × 1.0 in(27.94 mm × 24.38 mm)package, this series of isolated modules is set to one of the common intermediate bus voltages of 3.3 V, 5 V, or 12 V. The PTMA40XX series includes many features expected of high-performance dc/dc converter modules. Operational features include an input undervoltage lockout (UVLO) and a dual-logic output enable control or synchronization option. Overcurrent protection ensures survival against load faults. Typical applications include distributed power architectures in both telecom and computing environments, power over ethernet, and particularly complex digital systems requiring multiple power supply rails. The PTMA40XX is a series of 10-W rated isolated dc/dc converters, designed to operate from a standard -48-V telecom central office supply. Housed in an industry standard1.1 in × 1.0 in(27.94 mm × 24.38 mm)package, this series of isolated modules is set to one of the common intermediate bus voltages of 3.3 V, 5 V, or 12 V. The PTMA40XX series includes many features expected of high-performance dc/dc converter modules. Operational features include an input undervoltage lockout (UVLO) and a dual-logic output enable control or synchronization option. Overcurrent protection ensures survival against load faults. Typical applications include distributed power architectures in both telecom and computing environments, power over ethernet, and particularly complex digital systems requiring multiple power supply rails.
