895-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

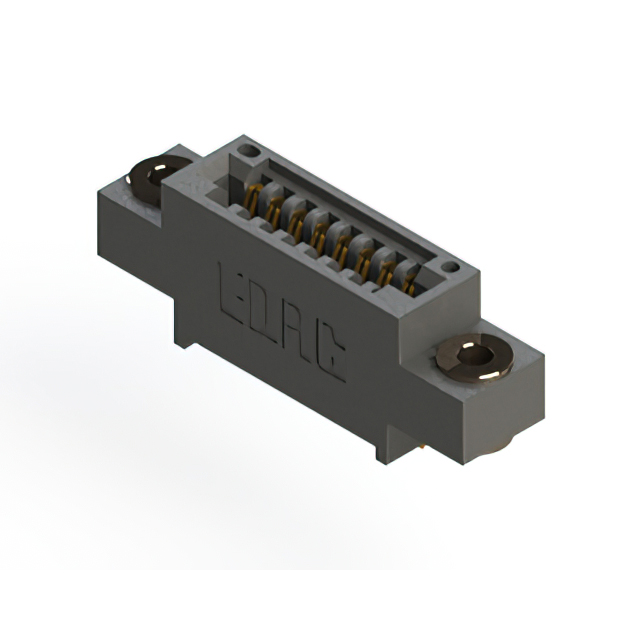

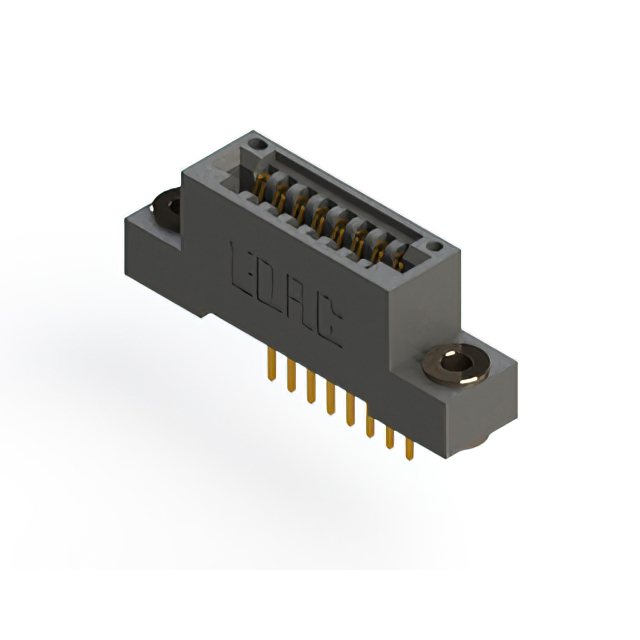

CONN EDGE SINGLE FML 8POS 0.100
| Part | Material - Insulation | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Number of Positions | Contact Material | Number of Rows | Read Out | Gender | Mounting Type | Pitch | Pitch | Flange Feature | Termination | Contact Type | Card Type | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | Solder Eyelet(s) | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | Side Mount Opening Unthreaded | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | 4-40 Threaded Insert Top Mount Opening | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Right Angle Through Hole | 0.1 " | 2.54 mm | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Gold | Black | 8 | Copper Alloy | 1 | Single | Female | Through Hole | 0.1 " | 2.54 mm | Side Mount Opening Unthreaded | Solder | Cantilever | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
